Product Details
CD4010BMS Hex Buffer/Converter may be used as CMOS to TTL or DTL
logic-level converter or CMOS high-sink-cur rent driver.
Features
? Non-Inverting Type
? High-Voltage Type (20V Rating)
? 100% Tested for Quiescent Current at 20V
? Maximum Input Current of 1μA at 18V Over Full Package-Temperature Range;
- 100nA at 18V and +25oC
? 5V, 10V and 15V Parametric Ratings
Applications
? CMOS To DTL/TTL Hex Converter
? CMOS Current “Sink” or “Source” Driver
? CMOS High-to-Low Logic-Level Converter
? Multiplexer - 1 to 6 or 6 to 1
Product Description
| Type | Description |
| ANSC PART# | ANSC-CD4010BF |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Buffers, Drivers, Receivers, Transceivers | |
| Manufacturer | Original |
| Series | 4000B |
| Packaging | Tube |
| Part Status | Active |
| Logic Type | Buffer, Non-Inverting |
| Number of Elements | 6 |
| Number of Bits per Element | 1 |
| Input Type | - |
| Output Type | Push-Pull |
| Current - Output High, Low | 1.6mA, 36mA |
| Voltage - Supply | 3V ~ 18V |
| Operating Temperature |
-55°C ~ 125°C (TA) |
| Mounting Type | Through Hole |
| Package / Case | 16-CDIP (0.300", 7.62mm) |
| Supplier Device Package | 16-CDIP |

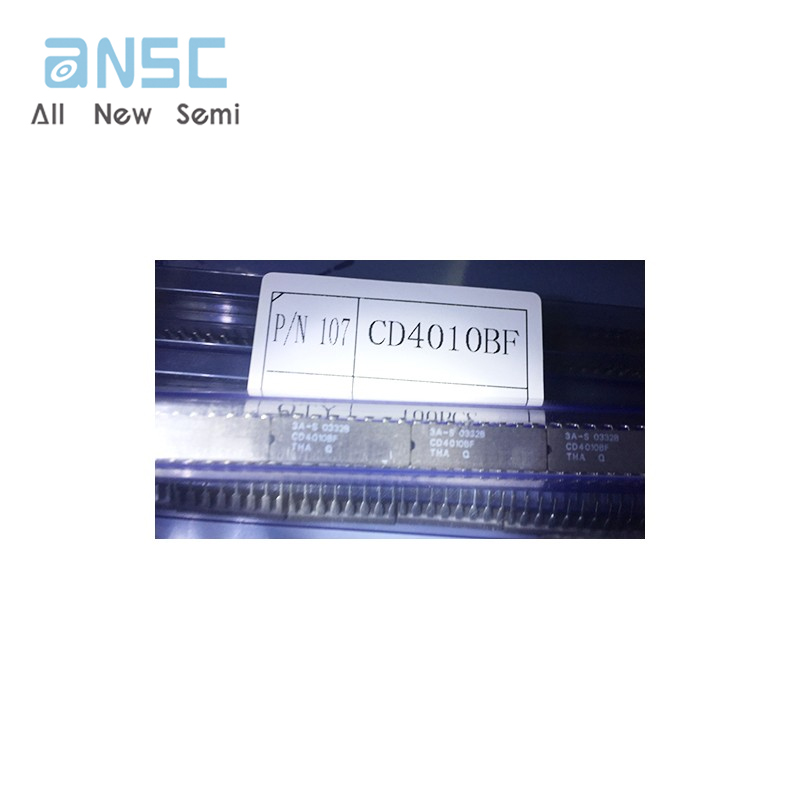

Product Photos

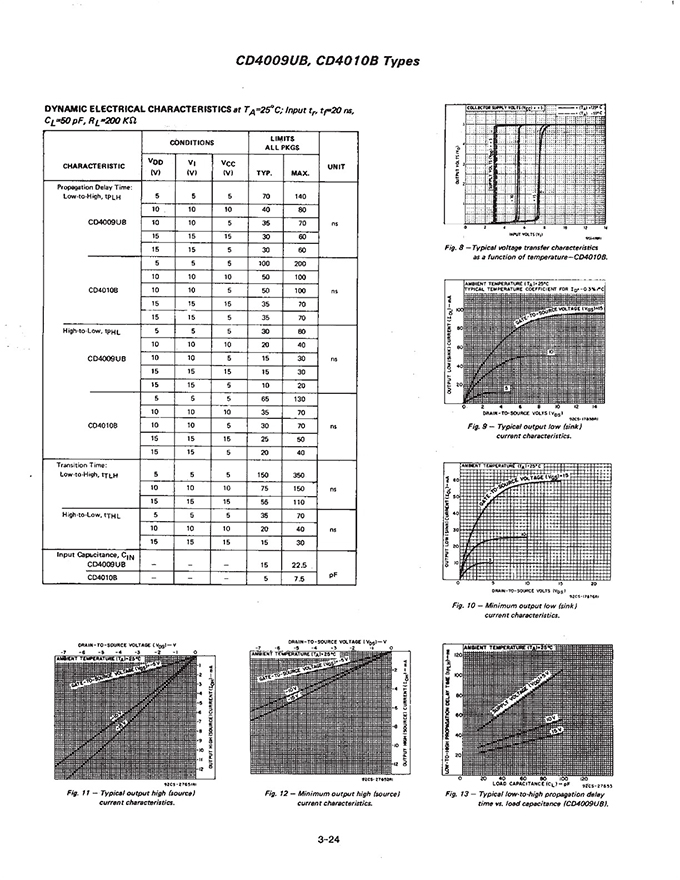

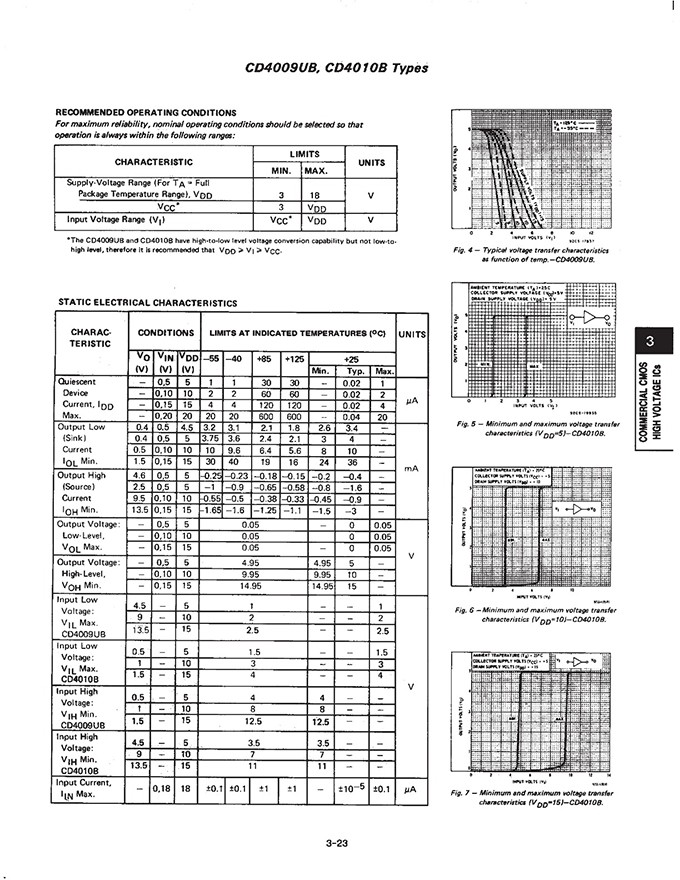

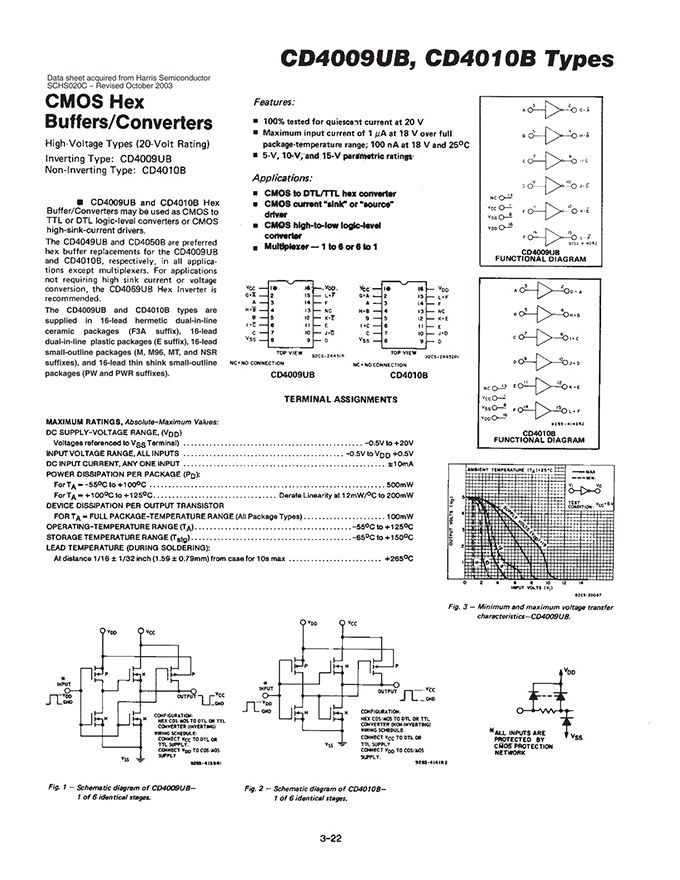

Product datasheet
For more information, please download
