Product Details
|
LT1129CST-3.3#PBF Overview The package is delivered in a Bulk case. In order to package the IC voltage regulator, a SOT-223 case is used. This IC Regulator has a type of output called Fixed. There are 1 regulators implemented in this electroic component. At present, it can produce an output of up to 700mA. The regulator has a total of 1 outputs to make sure that it delivers prompt, sufficient outputs. A dropout voltage of 10 volts is what makes it a dropout voltage. Depending on the chip, 3 pins may be available. There is a maximum output current of 700mA for this regulator to meet the operational requirements. It operates in the 50μA Quiescent Current state. As a general rule, it is recommended that you use the IC voltage regulator when temperatures are below 125°C degrees Celsius. At the lowest operating temperature that can be reached by the chip, it is 0°C. In order for it to operate, a supply current of 50μA must be applied. Generally, this voltage regulator IC can output 3.3V volts on a system level. LT1129CST-3.3#PBF Features 400mV dropout voltage The maximum operating temperature of 0°C LT1129CST-3.3#PBF Applications LT1129CST-3.3#PBF Linear Voltage Regulators applications.
Switching regulator Multiple-power supply system Digital audio player Digital TV Smartcard Industrial equipment DVD and CD-ROM drive Quick charge protocols Measurement and control euipment |
Product Description
| TYPE | DESCRIPTION |
| ANSC PART# | ANSC-LT1129CST-3.3#PBF |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - Linear, Low Drop Out (LDO) Regulators | |
| Mfr | Original |
| Series | - |
| Packaging | Tube |
| Part Status | Active |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 30V |
| Voltage - Output (Min/Fixed) | 3.3V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.7V @ 700mA |
| Current - Output | 700mA |
| Current - Quiescent (Iq) |
70 μA |
| Current - Supply (Max) | 90 mA |
| PSRR | 64dB (120Hz) |
| Control Features | Enable |
| Protection Features | Over Temperature, Reverse Polarity |
| Operating Temperature | 0°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | TO-261-4, TO-261AA |
| Supplier Device Package | SOT-223-3 |
| Base Product Number | LT1129 |

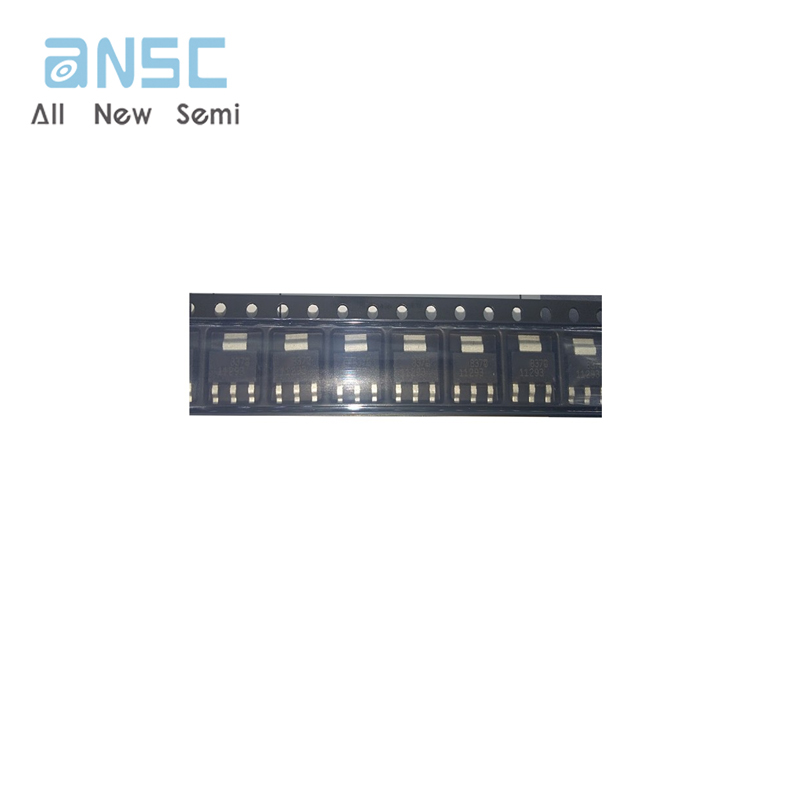

Product Photos

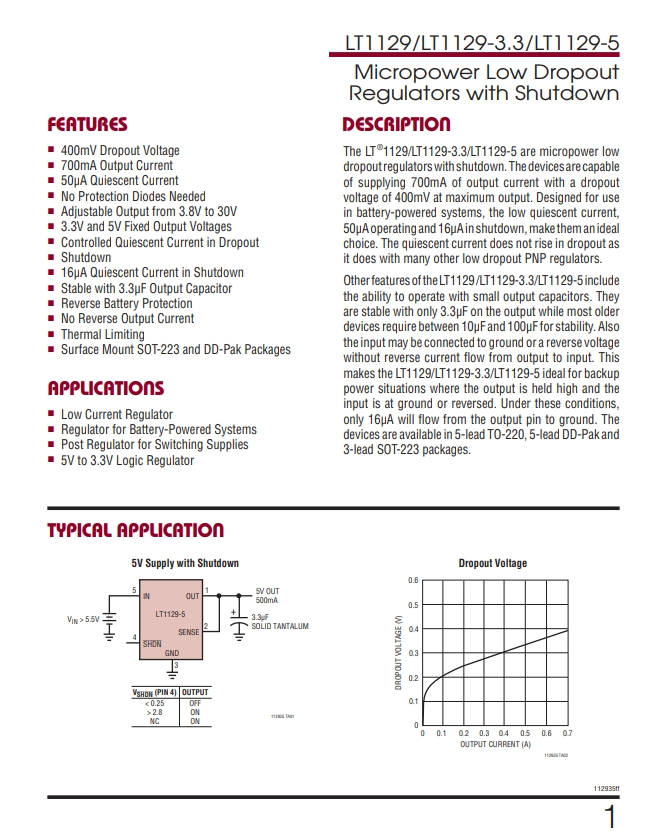

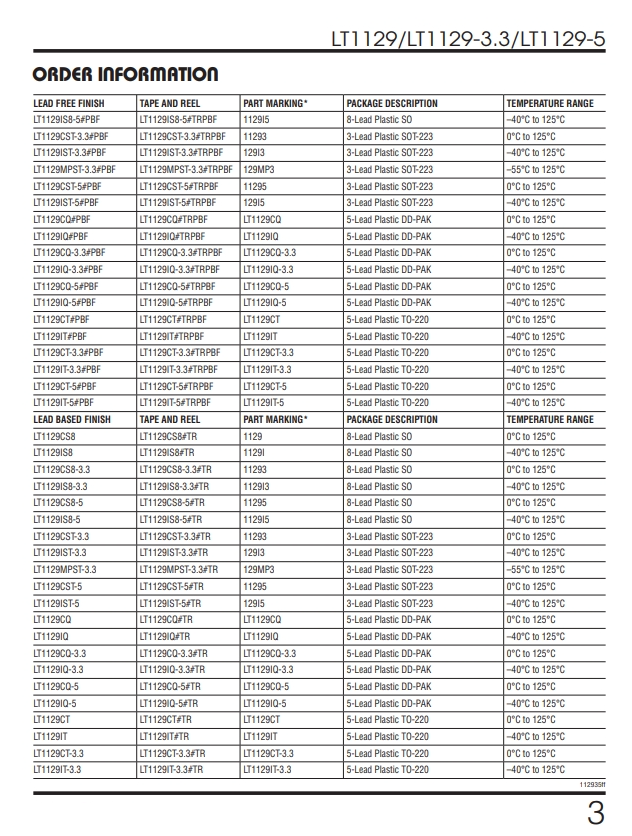

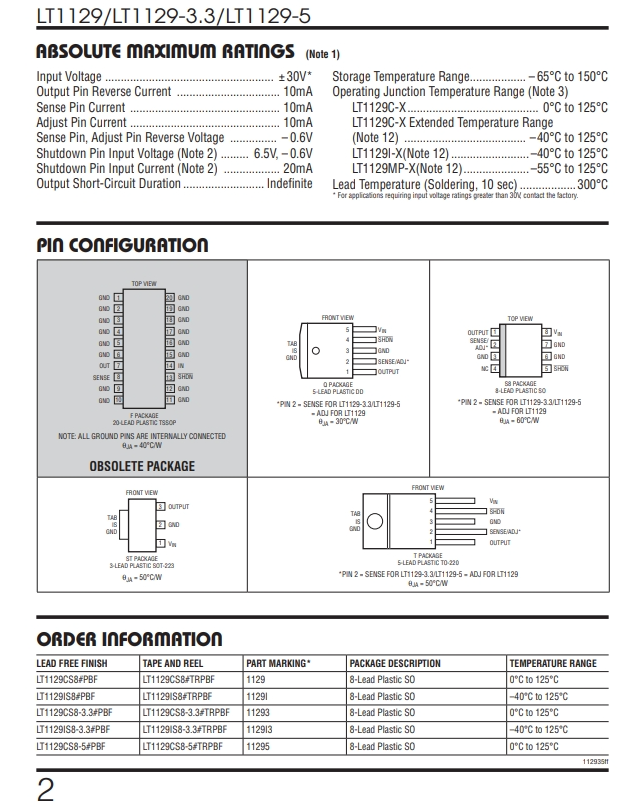

Product datasheet
