Product Details
|

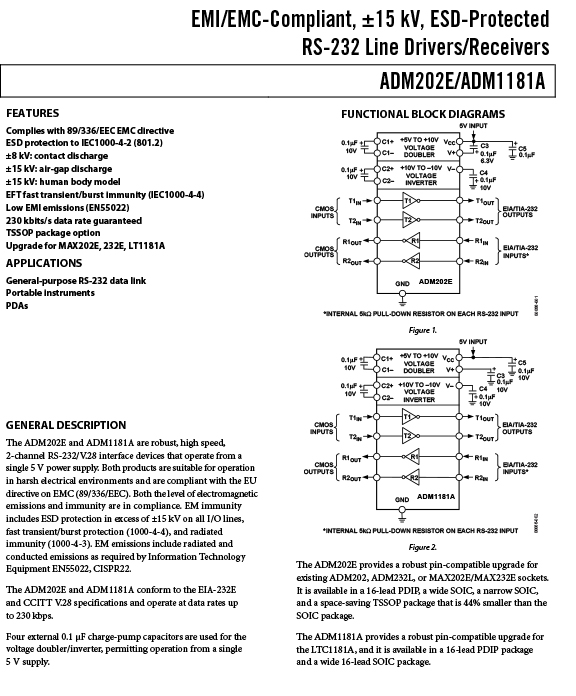

GENERAL DESCRIPTION The ADM202E and ADM1181A are robust, high speed, 2-channel RS-232/V.28 interface devices that operate from a single 5 V power supply. Both products are suitable for operation in harsh electrical environments and are compliant with the EU directive on EMC (89/336/EEC). Both the level of electromagnetic emissions and immunity are in compliance. EM immunity includes ESD protection in excess of ±15 kV on all I/O lines, fast transient/burst protection (1000-4-4), and radiated immunity (1000-4-3). EM emissions include radiated and conducted emissions as required by Information Technology Equipment EN55022, CISPR22. FEATURES Complies with 89/336/EEC EMC directive ESD protection to IEC1000-4-2 (801.2) ±8 kV: contact discharge ±15 kV: air-gap discharge ±15 kV: human body model EFT fast transient/burst immunity (IEC1000-4-4) Low EMI emissions (EN55022) 230 kbits/s data rate guaranteed TSSOP package option Upgrade for MAX202E, 232E, LT1181A
General-purpose RS-232 data link Portable instruments PDAs |
Product Description
| TYPE | DESCRIPTION |
| ANSC PART# | ANSC- ADM202EARNZ |
| Category | Integrated Circuits (ICs) |
| Interface | |
| Drivers, Receivers, Transceivers | |
| Manufacturer | Original |
| Series | - |
| Packaging | Tube |
| Part Status | Active |
| Type | Transceiver |
| Protocol | RS232 |
| Number of Drivers/Receivers |
2/2 |
| Duplex | Full |
| Receiver Hysteresis | 650 mV |
| Data Rate | 230kbps |
| Voltage - Supply | 4.5V ~ 5.5V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 16-SOIC |
| Base Product Number | ADM202 |

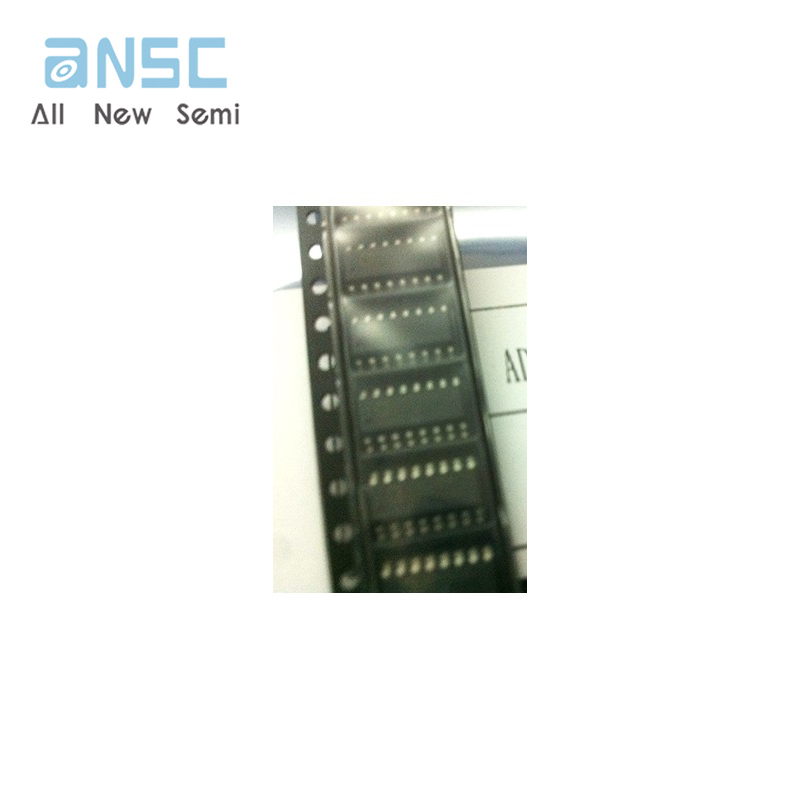

Product Photos

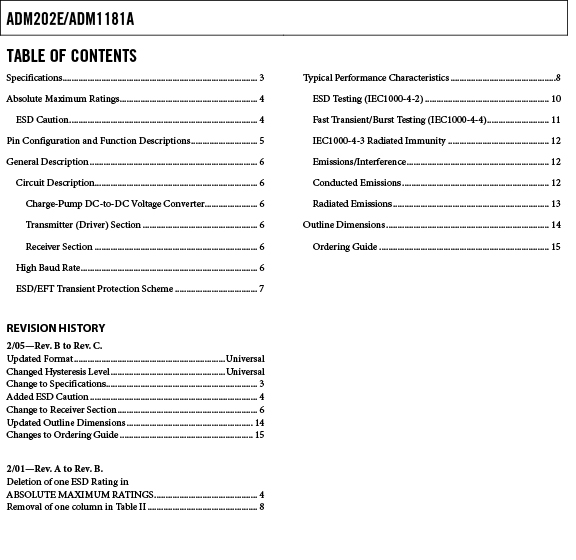

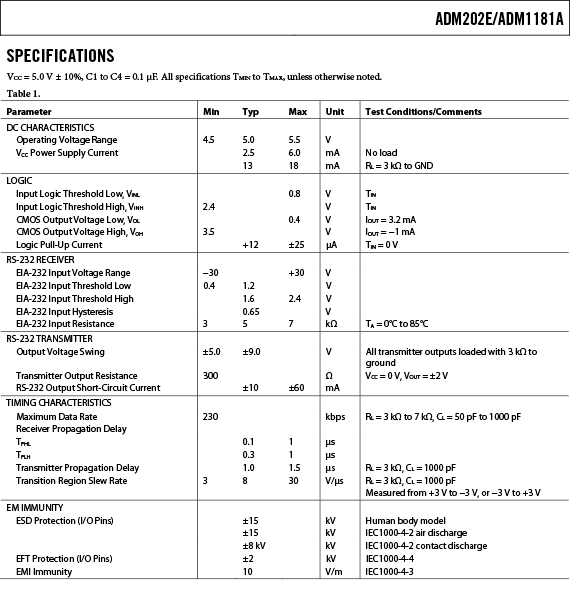

Product datasheet
For more information, please download
Payment&Transportation
Official Certificate&Certificate
Standard packaging
Multiple product supply
Welcome to visit our company
Warehouse Real Shot
