Product Details
|
GENERAL DESCRIPTION The ADL5501 is a mean-responding power detector for use in high frequency receiver and transmitter signal chains from 50 MHz to 4 GHz. It is easy to apply, requiring only a single supply between 2.7 V and 5.5 V and a power supply decoupling capacitor. The input is internally ac-coupled and has a nominal input impedance of 50 Ω. The output is a linear-responding dc voltage with a conversion gain of 6.3 V/V rms at 900 MHz. FEATURES True rms response Excellent temperature stability Up to 30 dB input dynamic range at 4 GHz 50 Ω input impedance 1.25 V rms, 15 dBm, maximum input Single-supply operation: 2.7 V to 5.5 V Low power: 3.3 mW at 3 V supply RoHS-compliant APPLICATIONS Measurement of CDMA2000-, W-CDMA-, and QPSK-/ QAM-based OFDM, and other complex modulation waveforms RF transmitter or receiver power measurement |
Product Description
| Type# | Description |
| ANSC PART# | ANSC-ADL5501AKSZ-R2 |
| Part# | ADL5501AKSZ-R2 |
| Type： | Integrated Circuits |
| Manufactor | Original |
| DC | new |
| Part Status | Active |
| Product packaging | SC70-6 |

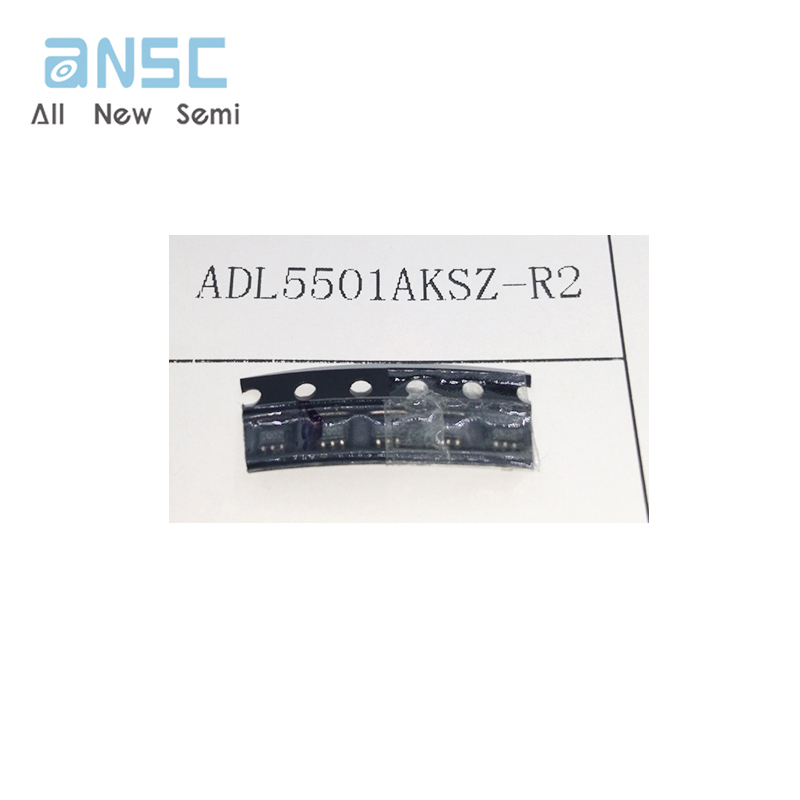

Product Photos

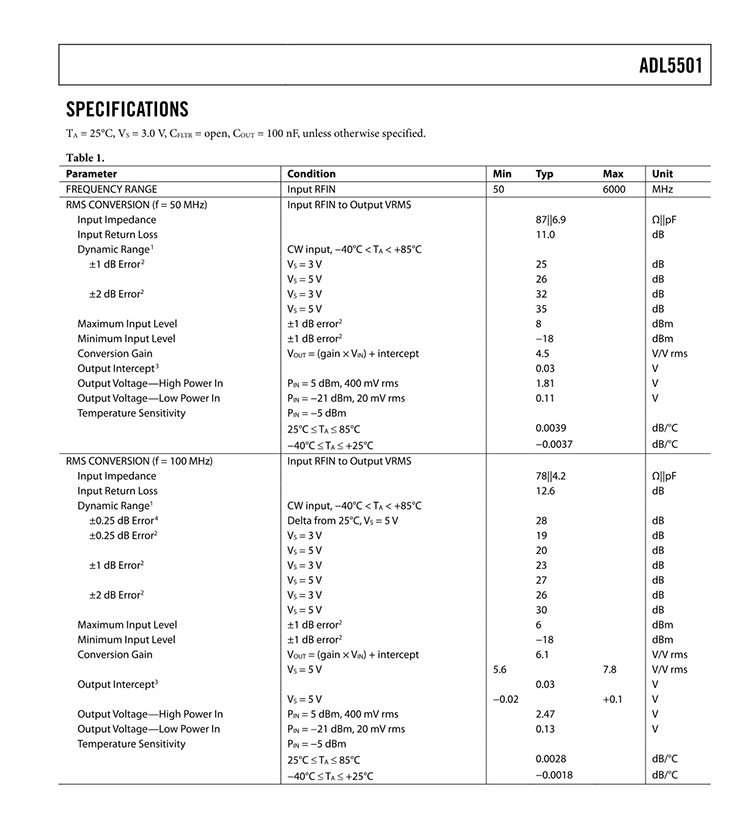

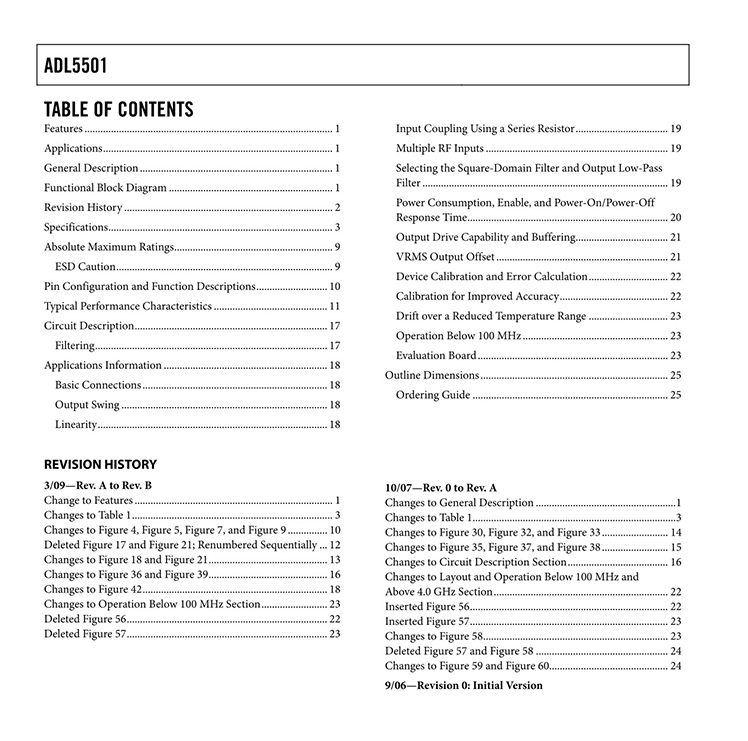

Product datasheet
For more information, please download
Payment&Transportation
Official Certificate&Certificate
Standard packaging
Multiple product supply
Welcome to visit our company
Warehouse Real Shot
