Product Details
|
GENERAL DESCRIPTION The ADG918/ADG919 are wideband switches using a CMOS process to provide high isolation and low insertion loss to 1GHz. The ADG918 is an absorptive switch having 50 ohm terminated shunt legs, while the ADG919 is a reflective switch. These devices are designed such that the isolation is high over the DC to 1GHz frequency range. They have on board CMOS control logic, thus eliminating the need for external controlling circuitry. The control inputs are both CMOS and LVTTL compatible. The low power consumption of these CMOS devices makes them ideally suited to wireless applications and general purpose high frequency switching. FEATURES Wideband DC to 2GHz ADG918/ADG919 Absorptive/Reflective Switches High Off Isolation (43 dB @ 1 GHz) Low Insertion Loss (1 dB DC to 900 MHz) Single 1.65 to 2.75 V power supply CMOS/LVTTL Control Logic 8 Lead MSOP & Tiny 3 x 3mm CSP Packages Low Power Consumption (5μA) APPLICATIONS Wireless Communications General Purpose RF switching Dual Band Applications Filter Selection Antenna Switch Digital Transceiver Front-End Switch IF Switching |
Product Description
| TYPE | DESCRIPTION |
| ANSC PART# | ANSC - ADG918BRM |
| Category | RF and Wireless |
| RF Switches | |
| Manufacturer | Original |
| Series | - |
| Packaging | Tube |
| Part Status | Obsolete |
| RF Type | General Purpose |
| Topology | Absorptive |
| Circuit | SPDT |
| Frequency Range | 0Hz ~ 2GHz |
| Isolation | 37dB |
| Insertion Loss | 0.8dB |
| Test Frequency | 1GHz |
| P1dB | 17dBm |
| IIP3 | 36dBm |
| Features | - |
| Impedance | - |
| Voltage - Supply | 1.65V ~ 2.75V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 8-MSOP |
| Base Product Number | ADG918 |

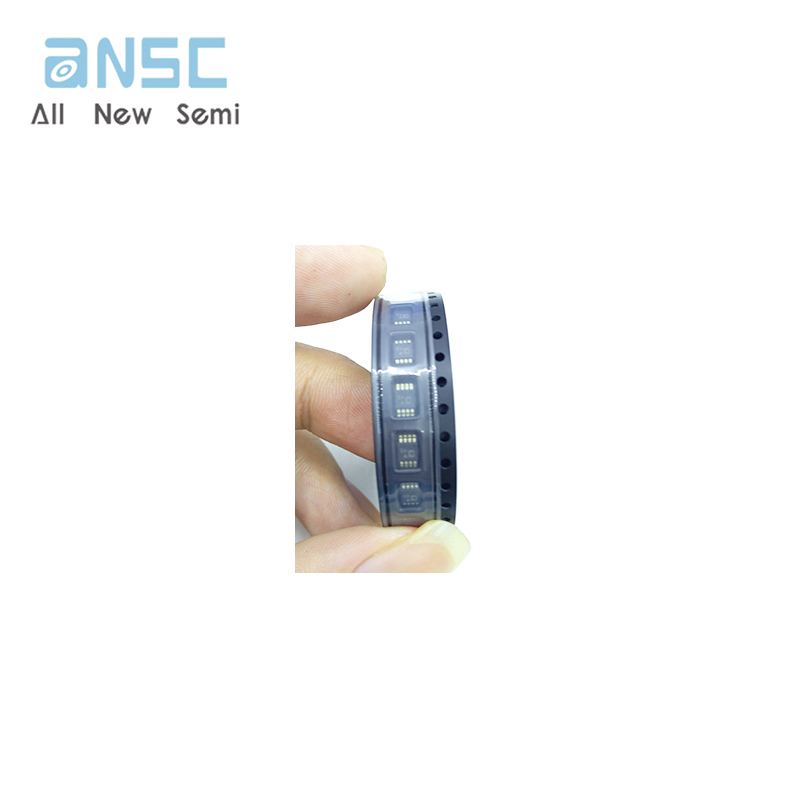

Product Photos

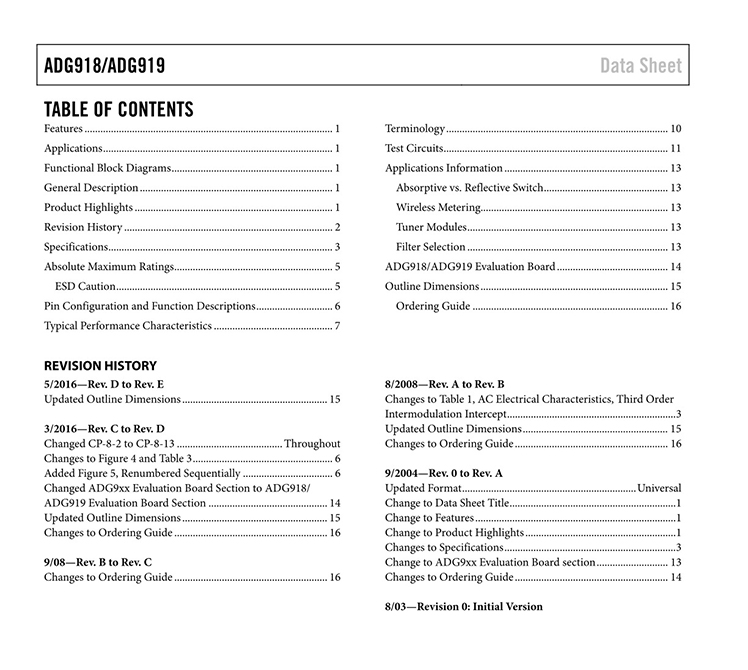

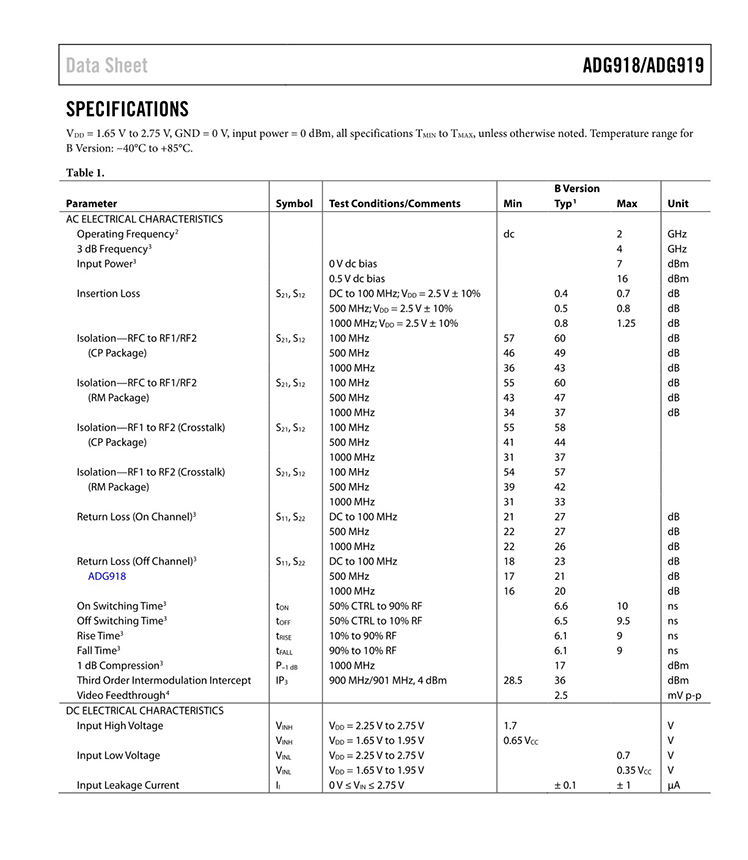

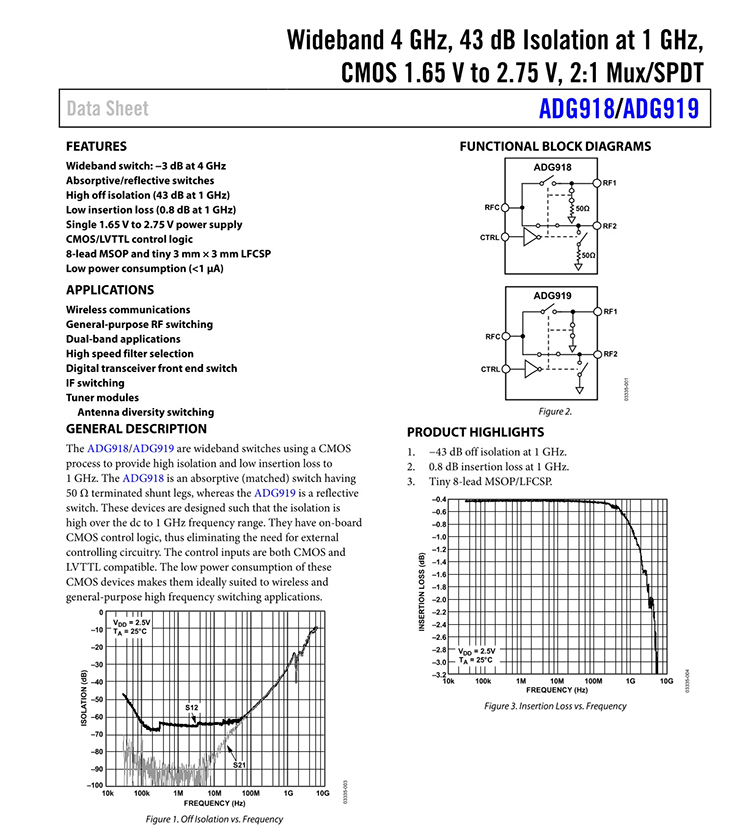

Product datasheet
For more information, please download
