Product Details
|

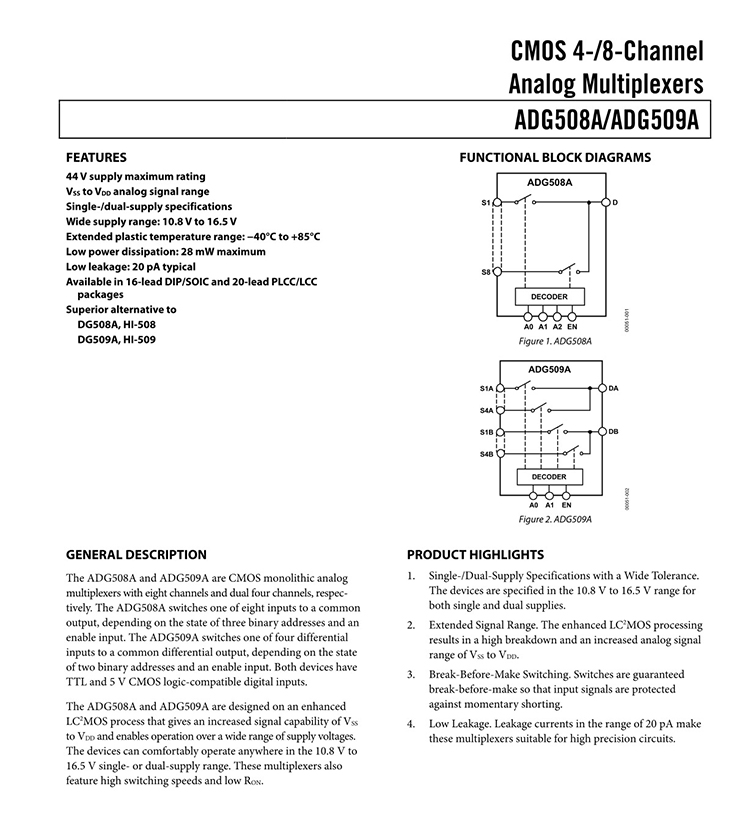

GENERAL DESCRIPTION The ADG508A and ADG509A are CMOS monolithic analog multiplexers with eight channels and dual four channels, respectively. The ADG508A switches one of eight inputs to a common output, depending on the state of three binary addresses and an enable input. The ADG509A switches one of four differential inputs to a common differential output, depending on the state of two binary addresses and an enable input. Both devices have TTL and 5 V CMOS logic-compatible digital inputs. FEATURES 44 V supply maximum rating VSSto VDDanalog signal range Single-/dual-supply specifications Wide supply range: 10.8 V to 16.5 V Extended plastic temperature range: ?40°C to +85°C Low power dissipation: 28 mW maximum Low leakage: 20 pA typical Available in 16-lead DIP/SOIC and 20-lead PLCC/LCC packages Superior alternative to DG508A, HI-508 DG509A, HI-509 |
Product Description
| Type# | Description |
| ANSC PART# | ANSC-ADG508ATE |
| Part# | ADG508ATE |
| Type： | Integrated Circuits |
| Manufactor | Original |
| DC | new |
| Part Status | Active |
| Product packaging | CLCC20 |

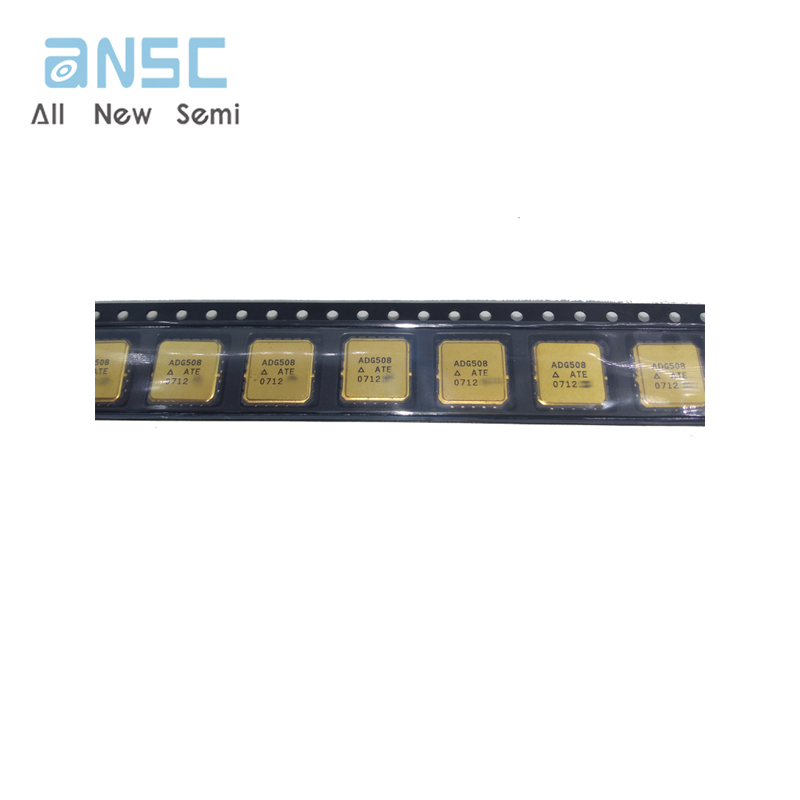

Product Photos

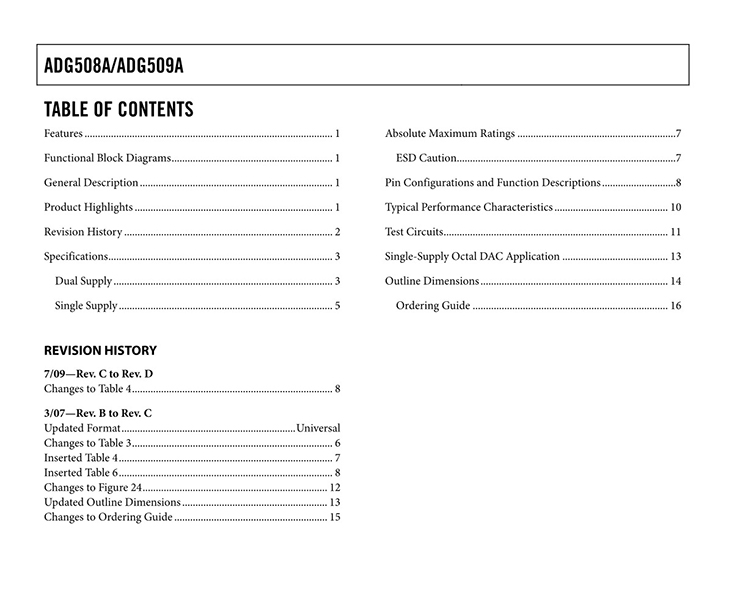

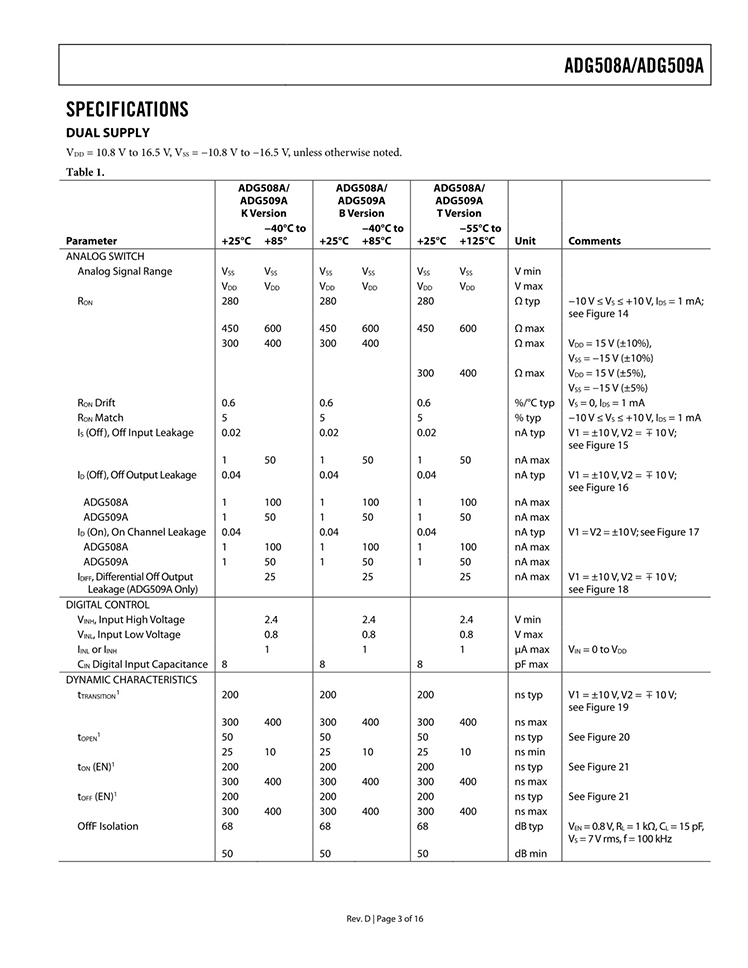

Product datasheet
For more information, please download
