Product Details
|

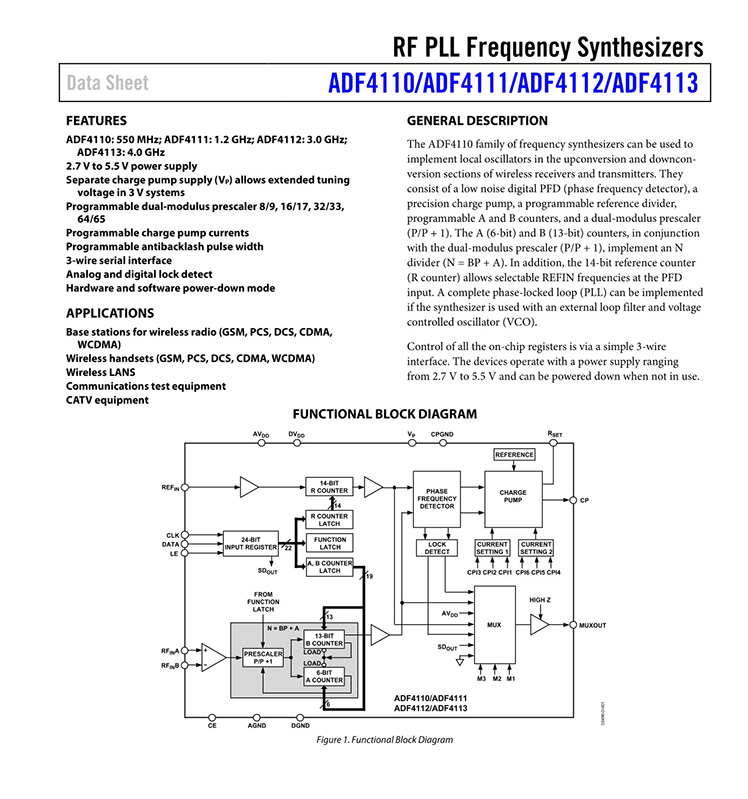

GENERAL DESCRIPTION The ADF4110 family of frequency synthesizers can be used to implement local oscillators in the upconversion and downconversion sections of wireless receivers and transmitters. They consist of a low noise digital PFD (phase frequency detector), a precision charge pump, a programmable reference divider, programmable A and B counters, and a dual-modulus prescaler (P/P + 1). The A (6-bit) and B (13-bit) counters, in conjunction with the dual-modulus prescaler (P/P + 1), implement an N divider (N = BP + A). In addition, the 14-bit reference counter (R counter) allows selectable REFIN frequencies at the PFD input. A complete phase-locked loop (PLL) can be implemented if the synthesizer is used with an external loop filter and voltage controlled oscillator (VCO). FEATURES ADF4110: 550 MHz; ADF4111: 1.2 GHz; ADF4112: 3.0 GHz; ADF4113: 4.0 GHz 2.7 V to 5.5 V power supply Separate charge pump supply (VP) allows extended tuning voltage in 3 V systems Programmable dual-modulus prescaler 8/9, 16/17, 32/33, 64/65 Programmable charge pump currents Programmable antibacklash pulse width 3-wire serial interface Analog and digital lock detect Hardware and software power-down mode APPLICATIONS Base stations for wireless radio (GSM, PCS, DCS, CDMA, WCDMA) Wireless handsets (GSM, PCS, DCS, CDMA, WCDMA) Wireless LANS Communications test equipment CATV equipment |
Product Description
| TYPE | DESCRIPTION |
| ANSC PART# | ANSC - ADF4110BRUZ |
| Category | Integrated Circuits (ICs) |
| Clock/Timing | |
| Clock Generators, PLLs, Frequency Synthesizers | |
| Manufacturer | Original |
| Series | - |
| Packaging | Tube |
| Part Status | Active |
| DigiKey Programmable | Not Verified |
| Type | Clock/Frequency Synthesizer (RF) |
| PLL | Yes |
| Input | CMOS, TTL |
| Output | Clock |
| Number of Circuits | 1 |
| Ratio - Input:Output | 2:01 |
| Differential - Input:Output | Yes/No |
| Frequency - Max | 550MHz |
| Divider/Multiplier | Yes/No |
| Voltage - Supply | 2.7V ~ 5.5V |
| Operating Temperature |
-40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 16-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 16-TSSOP |
| Base Product Number | ADF4110 |

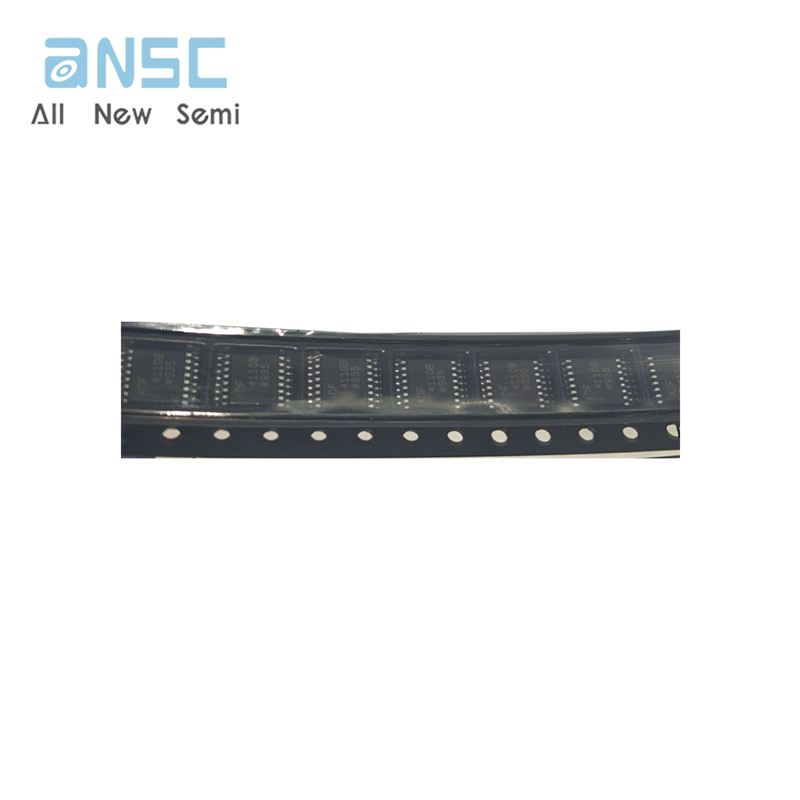

Product Photos

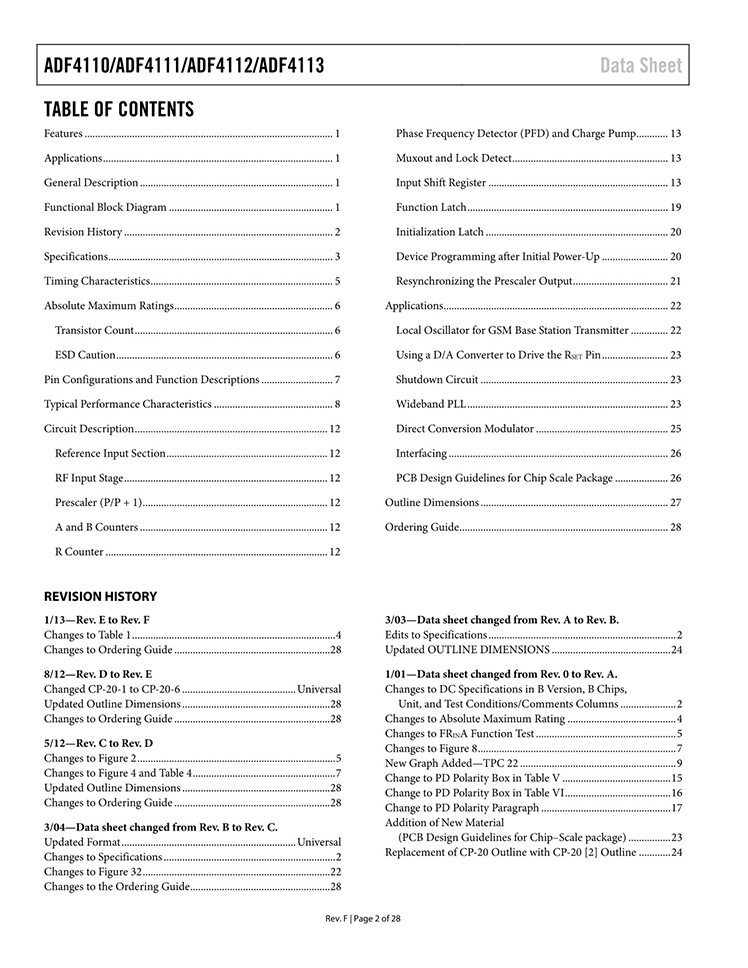

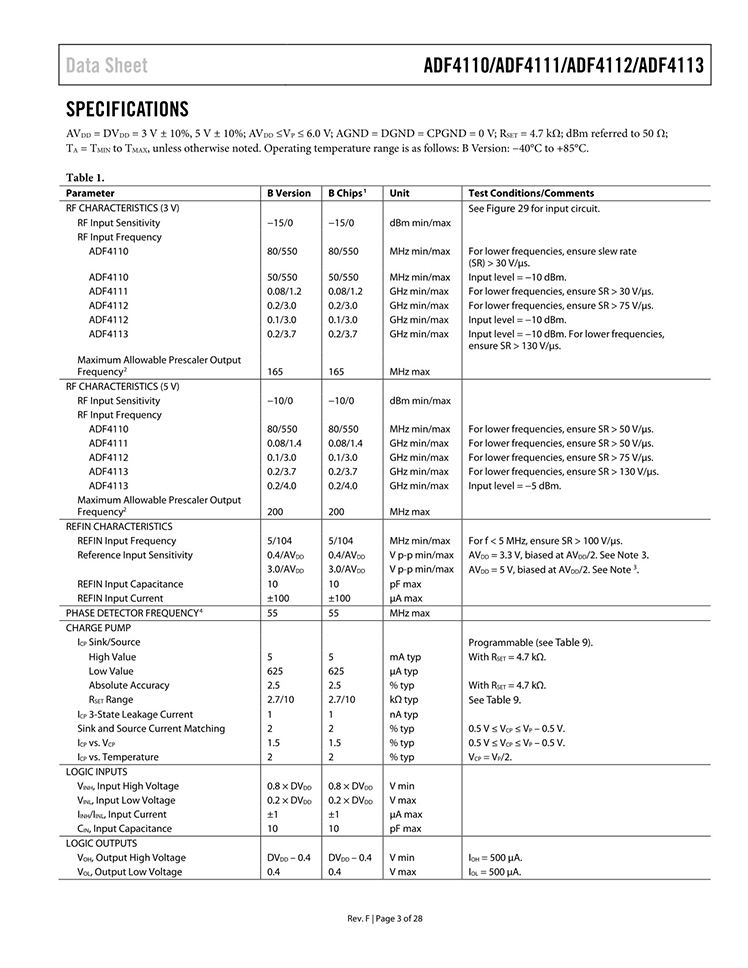

Product datasheet
