Product Details
|

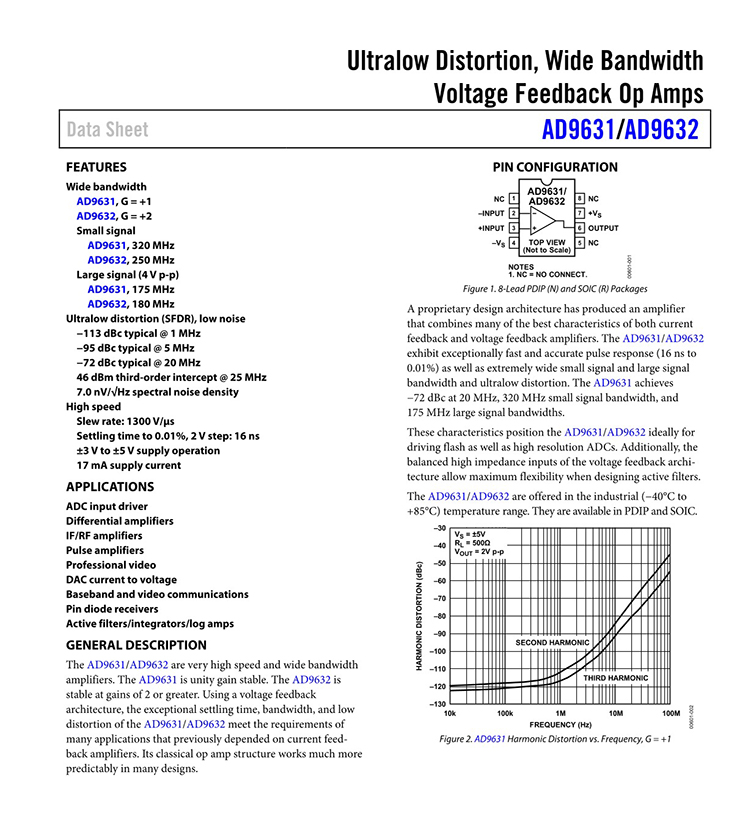

GENERAL DESCRIPTION The AD9631 and AD9632 are very high speed and wide band width amplifiers. They are an improved performance alternative to the AD9621 and AD9622. The AD9631 is unity gain stable. The AD9632 is stable at gains of 2 or greater. Using a voltage feedback architecture, the AD9631/AD9632’s exceptional settling time, bandwidth, and low distortion meet the requirements of many applications that previously depended on current feedback amplifiers. Its classical op amp structure works much more predictably in many designs. FEATURES Wide Bandwidth AD9631, G = +1 AD9632, G = +2 Small Signal 320 MHz 250 MHz Large Signal (4 V p-p) 175 MHz 180 MHz Ultralow Distortion (SFDR), Low Noise –113 dBc Typ @ 1 MHz –95 dBc Typ @ 5 MHz –72 dBc Typ @ 20 MHz 46 dBm Third Order Intercept @ 25 MHz 7.0 nV/÷Hz Spectral Noise Density High Speed Slew Rate 1300 V/s Settling 16 ns to 0.01%, 2 V Step 3 V to 5 V Supply Operation 17 mA Supply Current APPLICATIONS ADC Input Driver Differential Amplifiers IF/RF Amplifiers Pulse Amplifiers Professional Video DAC Current to Voltage Baseband and Video Communications Pin Diode Receivers Active Filters/Integrators/Log Amps |

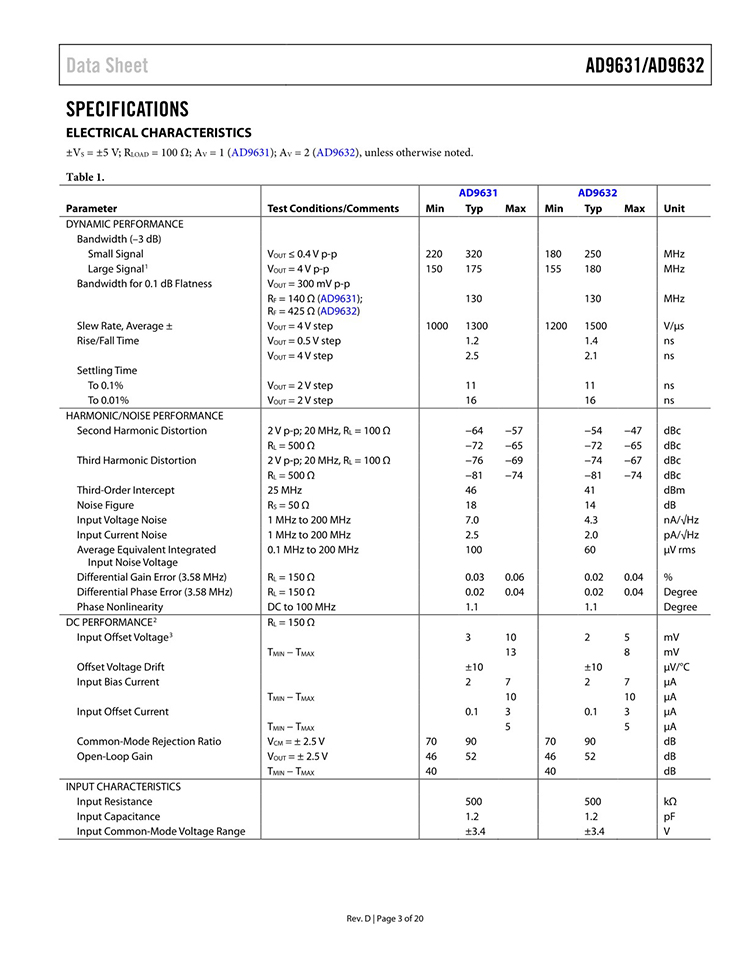

Product Description
| TYPE | DESCRIPTION |
| ANSC PART# | ANSC - AD9631ARZ |
| Category | Integrated Circuits (ICs) |
| Linear | |
| Amplifiers | |
| Instrumentation, OP Amps, Buffer Amps | |
| Mfr | Original |
| Series | - |
| Packaging | Tube |
| Part Status | Active |
| Amplifier Type | Voltage Feedback |
| Number of Circuits | 1 |
| Output Type | - |
| Slew Rate | 1300V/μs |
| -3db Bandwidth | 320 MHz |
| Current - Input Bias | 2 μA |
| Voltage - Input Offset | 3 mV |
| Current - Supply | 17mA |
| Current - Output / Channel | 70 mA |
| Voltage - Supply Span (Min) | 6 V |
| Voltage - Supply Span (Max) | 12 V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Base Product Number | AD9631 |
