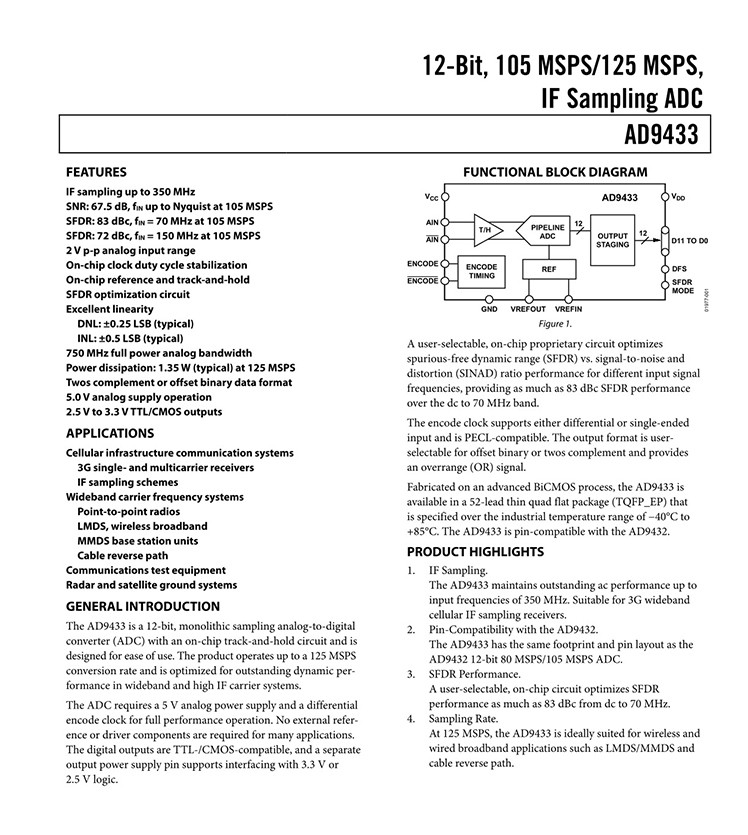

GENERAL INTRODUCTION The AD9433 is a 12-bit monolithic sampling analog-to-digital converter with an on-chip track-and-hold circuit and is designed for ease of use. The product operates up to 125 MSPS conversion rate and is optimized for outstanding dynamic performance in wideband and high IF carrier systems. FEATURES IF Sampling up to 350 MHz SNR = 67.5 dB, fIN up to Nyquist @ 105 MSPS SFDR = 83 dBc, fIN 70 MHz @ 105 MSPS SFDR = 72 dBc, fIN 150 MHz @ 105 MSPS 2 V p-p Analog Input Range Option On-Chip Clock Duty Cycle Stabilization On-Chip Reference and Track/Hold SFDR Optimization Circuit Excellent Linearity: DNL = ±0.25 LSB (Typ) INL = ±0.5 LSB (Typ) 750 MHz Full Power Analog Bandwidth Power Dissipation = 1.35 W Typical @ 125 MSPS Two’s Complement or Offset Binary Data Format 5.0 V Analog Supply Operation 2.5 V to 3.3 V TTL/CMOS Outputs APPLICATIONS Cellular Infrastructure Communication Systems 3G Single and Multicarrier Receivers IF Sampling Schemes Wideband Carrier Frequency Systems Point to Point Radios LMDS, Wireless Broadband MMDS Base Station Units Cable Reverse Path Communications Test Equipment Radar and Satellite Ground Systems |
Product Description
| TYPE | DESCRIPTION |
| ANSC PART# | ANSC - AD9433BSQ-125 |
| Category | Integrated Circuits (ICs) |
| Data Acquisition | |
| Analog to Digital Converters (ADC) | |
| Manufacturer | Original |
| Series | - |
| Packaging | Bag |
| Part Status | Obsolete |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 125M |
| Data Interface | - |
| Number of A/D Converters | 1 |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 52-LQFP Exposed Pad |
| Supplier Device Package | 52-LQFP-PQ4 (10x10) |
| Mounting Type | Surface Mount |
| Base Product Number | AD9433 |
Product Photos

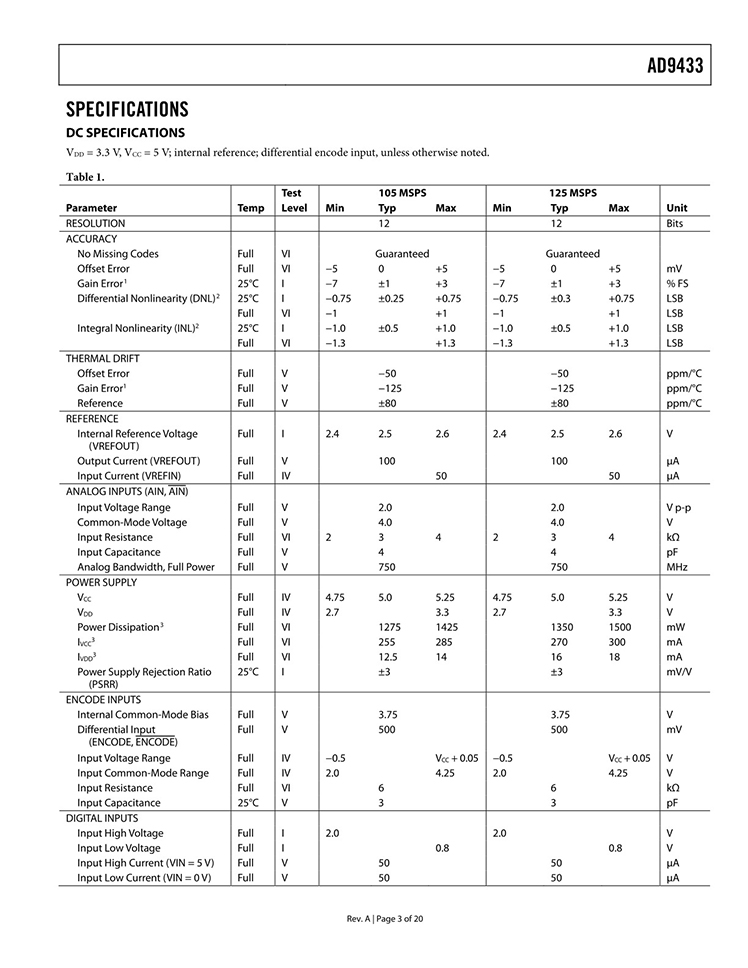

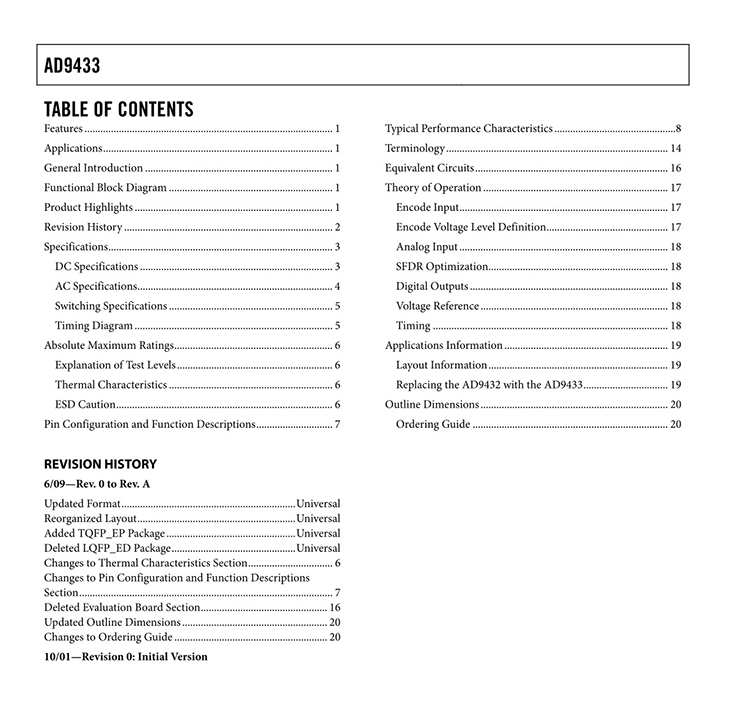

Product datasheet
