Product Details
|
The ADuC812 is a fully integrated 12-bit data acquisition systemincorporating a high performance self-calibrating multichannelADC, dual DAC, and programmable 8-bit MCU (8051 instructionset compatible) on a single chip. The programmable 8051 compatible core is supported by 8Kbytes Flash/EE program memory, 640 bytes Flash/EE datamemory, and 256 bytes data SRAM on-chip. Additional MCU support functions include Watchdog Timer,Power Supply Monitor, and ADC DMA functions. Thirty-twoprogrammable I/O lines, I2C compatible SPI and StandardUART Serial Port I/O are provided for multiprocessor interfacesand I/O expansion. Normal, idle, and power-down operating modes for both theMCU core and analog converters allow flexible power managementschemes suited to low power applications. The part isspecified for 3 V and 5 V operation over the industrial temperaturerange and is available in a 52-lead, plastic quadflatpack package. |
|
Product characteristics:
Analog I/O 8-Channel, High Accuracy 12-Bit ADCOn-Chip, 100 ppm/°C Voltage Reference High Speed 200 kSPS DMA Controller for High Speed ADC-to-RAM Capture 2 12-Bit Voltage Output DACs On-Chip Temperature Sensor Function Memory 8K Bytes On-Chip Flash/EE Program Memory 640 Bytes On-Chip Flash/EE Data Memory 256 Bytes On-Chip Data RAM 16M Bytes External Data Address Space 64K Bytes External Program Address Space 8051 Compatible Core 12 MHz Nominal Operation (16 MHz Max) 3 16-Bit Timer/Counters High Current Drive Capability—Port 3 9 Interrupt Sources, 2 Priority Levels Power Specified for 3 V and 5 V Operation Normal, Idle, and Power-Down Modes On-Chip Peripherals UART and SPI? Serial I/O 2-Wire (400 kHz I2C? Compatible) Serial I/O Watchdog Timer Power Supply Monitor |
|
Applications:
Intelligent Sensors Calibration and Conditioning Battery-Powered Systems (Portable PCs, Instruments,Monitors)Transient Capture Systems DAS and Communications Systems Control Loop Monitors (Optical Networks/Base Stations) |
Product Description
| Type# | Description |
| ANSC PART# | ANSC-ADUC8128S |
| Part# | ADUC8128S |
| Type： | Integrated Circuits |
| Manufactor | Original |
| DC | new |
| Part Status | Active |
| Product packaging | QFP |

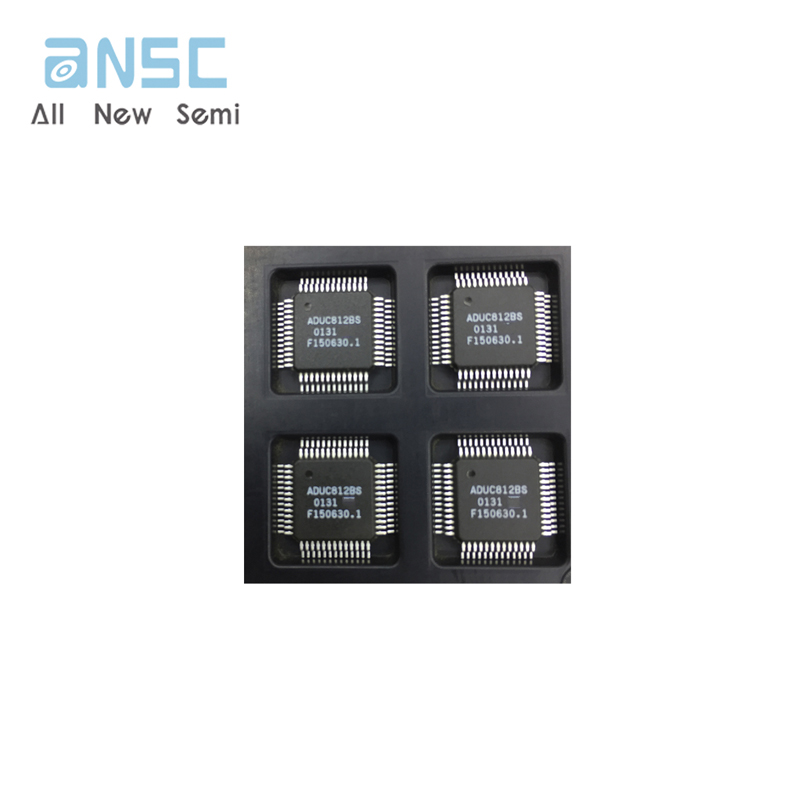

Product Photos
Payment&Transportation
Official Certificate&Certificate
Standard packaging
Multiple product supply
Welcome to visit our company
Warehouse Real Shot
