Product Details
|
DESCRIPTION The TRS-3380G series single mode transceivers is low power, high performance module for bi-directional serial optical data communications such as SONET OC-3 / SDH STM-1 (L-1.2) and Fast Ethernet. This module is designed for single mode fiber and operates at a nominal wavelength of 1550 nm. The transmitter section uses a multiple quantum well 1550 nm DFB laser and is a class 1 laser compliant according to International Safety Standard IEC-60825. The receiver section uses an integrated InGaAs detector preamplifier (IDP) mounted in an optical header and a limiting post-amplifier IC. A PECL logic interface simplifies interface to external circuitry. FEATURES ● Duplex SC Single Mode Transceiver: TRS-3380G ● Duplex ST Single Mode Transceiver:TRS-3380TG ● Duplex FC Single Mode Transceiver:TRS-3380FG ● Long-Reach SONET OC-3 / SDH STM-1 (L-1.2) Compliant ● 1550 nm DFB LD Transmitter ● Industry Standard 1 x 9 Footprint ● Single +3.3 V Power Supply ● RoHS Compliant ● 0 to 70 °C Operation: TRS-3380G ● -20 to 85 °C Operation: TRS-3380AG ● PECL Signal Detection Output ● LED Multisourced 1 x 9 Transceiver Interchangeable ● Wave Solderable and Aqueous Washable ● Class 1 Laser International Safety Standard IEC-60825 Compliant APPLICATIONS ● ATM 155 Mbps Links ● SONET/SDH Equipment Interconnect ● Fast Ethernet 100 Mb/s Links |
Product Description
| Type | Description |
| ANSC PART# | ANSC - TRSF3232EIPWR |
| Category | Integrated Circuits (ICs) |
| Interface | |
| Drivers, Receivers, Transceivers | |
| Manufacturer | Original |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| / | |
| Part Status | Active |
| Type | Transceiver |
| Protocol | RS232 |
| Number of Drivers/Receivers |
2/2 |
| Duplex | Full |
| Receiver Hysteresis | 300 mV |
| Data Rate | 1Mbps |
| Voltage - Supply | 3V ~ 5.5V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 16-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 16-TSSOP |
| Base Product Number | TRSF3232 |

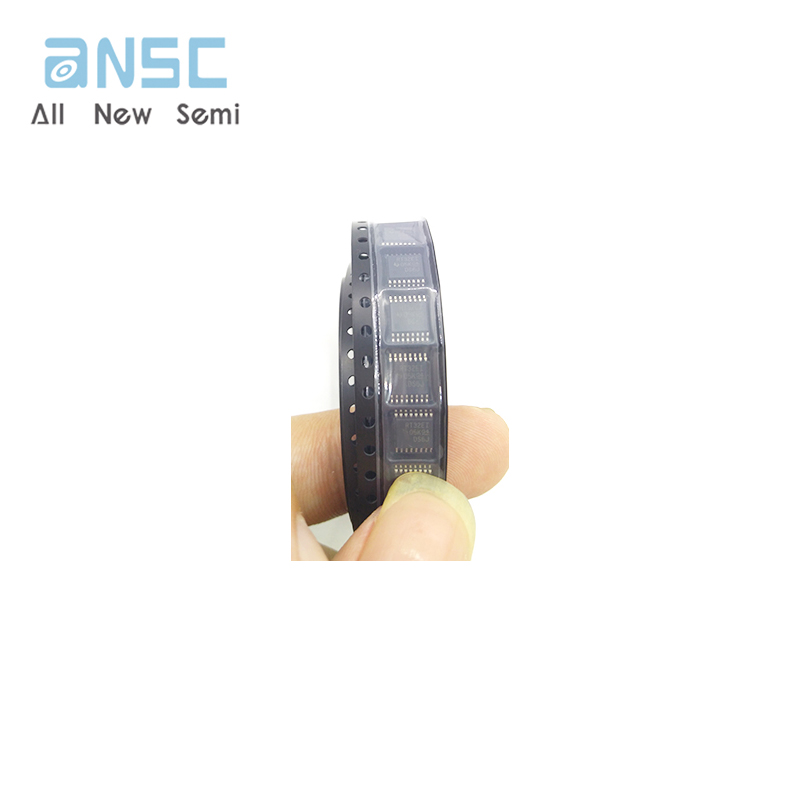

Product Photos

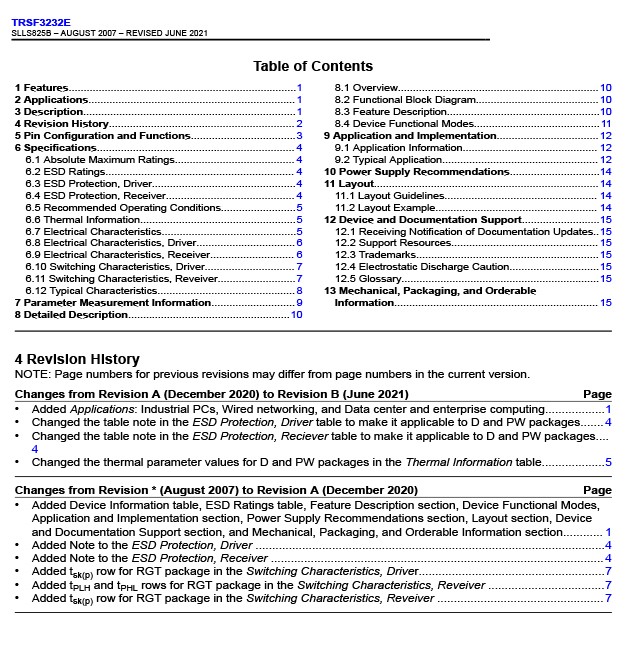

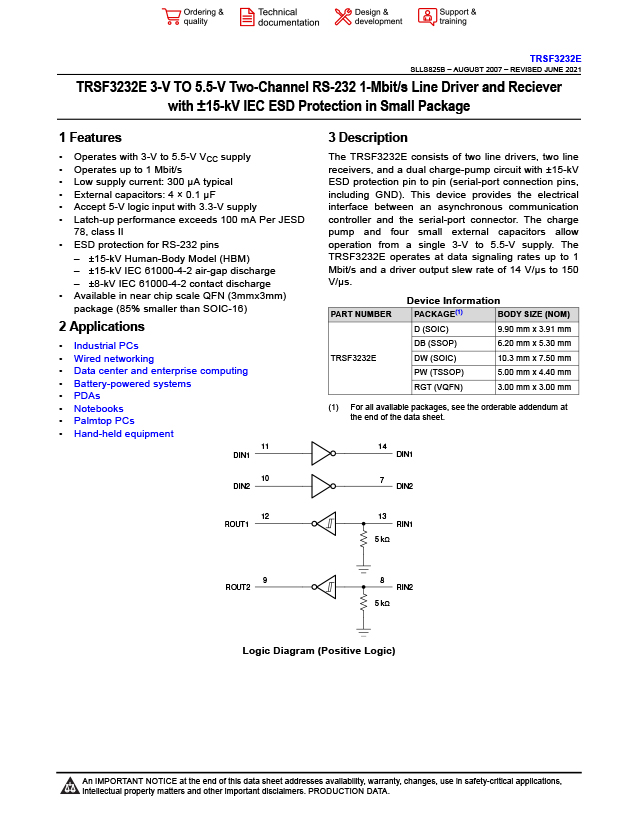

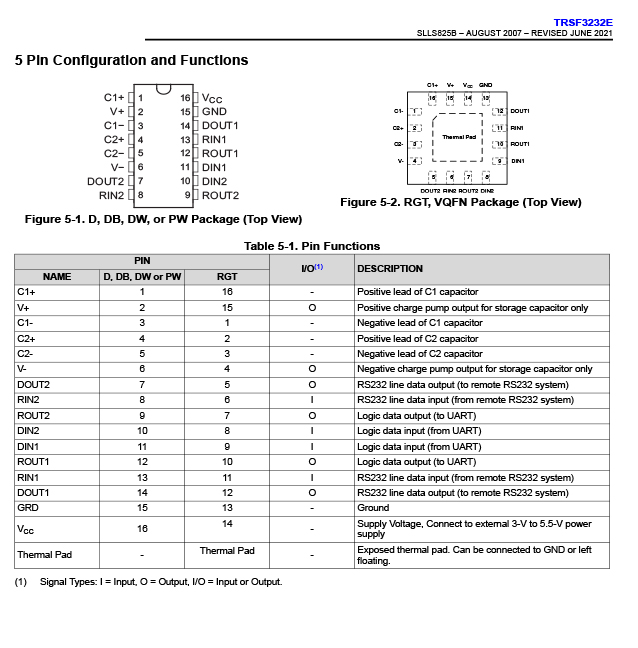

Product datasheet
For more information, please download
Payment&Transportation
Official Certificate&Certificate
Standard packaging
Multiple product supply
Welcome to visit our company
Warehouse Real Shot
