Product Details
|
GENERAL DESCRIPTION The 74HC/HCT4046A are high-speed Si-gate CMOS devices and are pin compatible with the “4046” of the “4000B” series. They are specified in compliance with JEDEC standard no. 7A. FEATURES ? Low power consumption ? Centre frequency of up to 17 MHz (typ.) at VCC= 4.5 V ? Choice of three phase comparators: EXCLUSIVE-OR; edge-triggered JK flip-flop; edge-triggered RS flip-flop ? Excellent VCO frequency linearity ? VCO-inhibit control for ON/OFF keying and for low standby power consumption ? Minimal frequency drift ? Operating power supply voltage range: VCO section 3.0 to 6.0 V digital section 2.0 to 6.0 V ? Zero voltage offset due to op-amp buffering ? Output capability: standard ? ICCcategory: MSI. |
Product Description
| Type# | Description |
| ANSC PART# | ANSC - 74HCT4046AD |
| Ihs Manufacturer | Original |
| Package Description | SOP, SOP16,.25 |
| Moisture Sensitivity Level | 1 |
| Number of Terminals | 16 |
| Operating Temperature-Max | 125 °C |
| Operating Temperature-Min |
-40 °C |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | SOP |
| Package Equivalence Code | SOP16,.25 |
| Package Shape | RECTANGULAR |
| Package Style | SMALL OUTLINE |
| Peak Reflow Temperature (Cel) | 260 |
| Qualification Status | Not Qualified |
| Supply Voltage-Nom (Vsup) | 5 V |
| Surface Mount | YES |
| Technology | CMOS |
| Temperature Grade | AUTOMOTIVE |
| Terminal Form | GULL WING |
| Terminal Pitch | 1.27 mm |
| Terminal Position | DUAL |

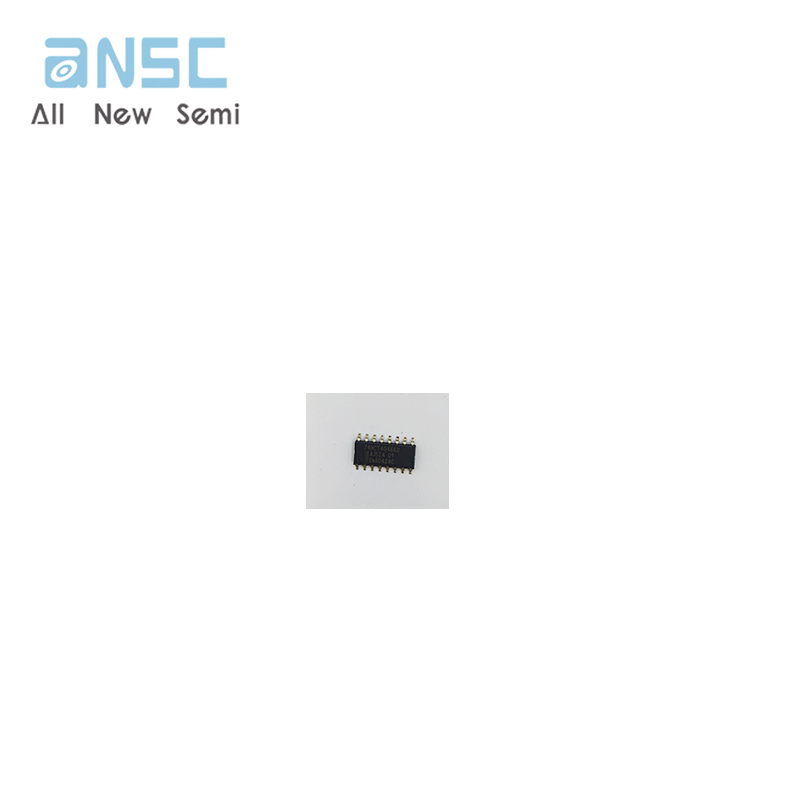

Product Photos
