Product Details
|
power supply and feature throughput rates of up to 1 MSPS. The parts contain a low noise, wide bandwidth track-and-hold amplifier, which can handle input frequencies in excess of 6 MHz. FEATURES Fast throughput rate: 1 MSPS Specified for VDD of 2.35 V to 5.25 V Low power: 4.8 mW typ at 1 MSPS with 3 V supplies 15.5mW typ at 1 MSPS with 5 V supplies Wide input bandwidth: 71 dB minimum SNR at 100 kHz input frequency Flexible power/serial clock speed management No pipeline delays High speed serial interface: SPI?/QSPI?/MICROWIRE?/DSP compatible Standby mode: 1 μA maximum Daisy-chain mode 8-lead TSOT package 8-lead MSOP package APPLICATIONS Battery-powered systems: Personal digital assistants Medical instruments Mobile communications Instrumentation and control systems Data acquisition systems High speed modems Optical sensors |
Product Description
| Type | Description |
| ANSC PART# | ANSC - AD7922ARMZ |
| Category | Integrated Circuits (ICs) |
| Data Acquisition | |
| Analog to Digital Converters (ADC) | |
| Manufacturer | Original |
| Series | - |
| Packaging | Tube |
| Part Status | Active |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 1M |
| Number of Inputs | 2 |
| Input Type | Single Ended |
| Data Interface | SPI, DSP |
| Configuration | MUX-S/H-ADC |
| Ratio - S/H:ADC | 1:01 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | Supply |
| Voltage - Supply, Analog | 2.35V ~ 5.25V |
| Voltage - Supply, Digital | 2.35V ~ 5.25V |
| Features | - |
| Operating Temperature |
-40°C ~ 85°C |
| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 8-MSOP |
| Mounting Type | Surface Mount |
| Base Product Number | AD7922 |

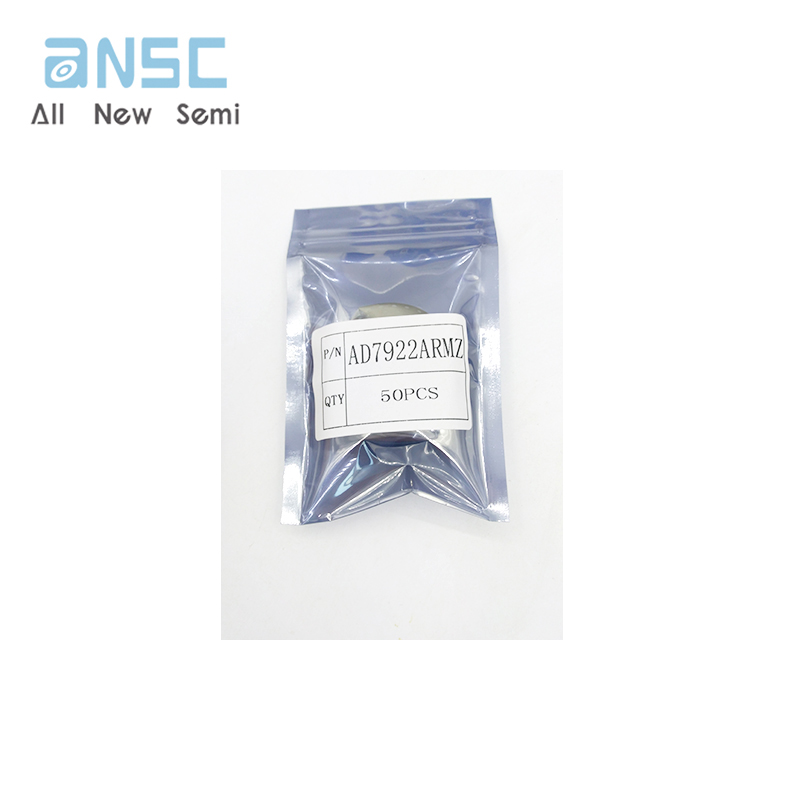

Product Photos

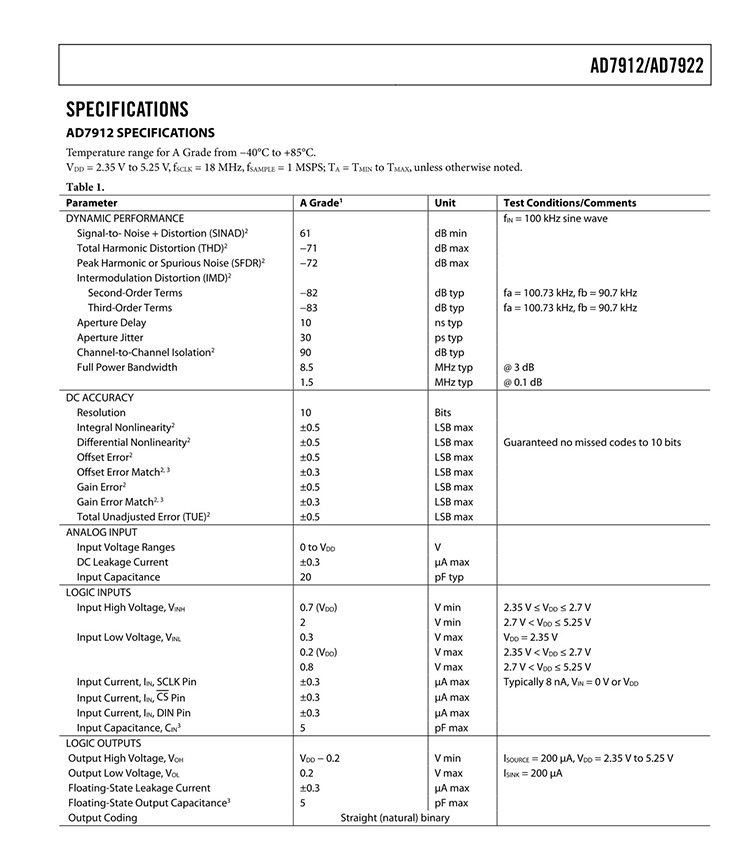

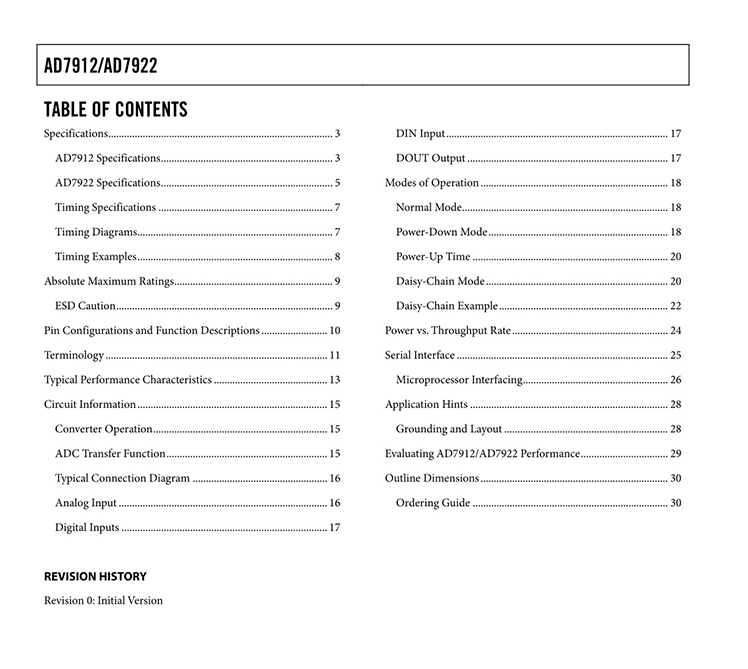

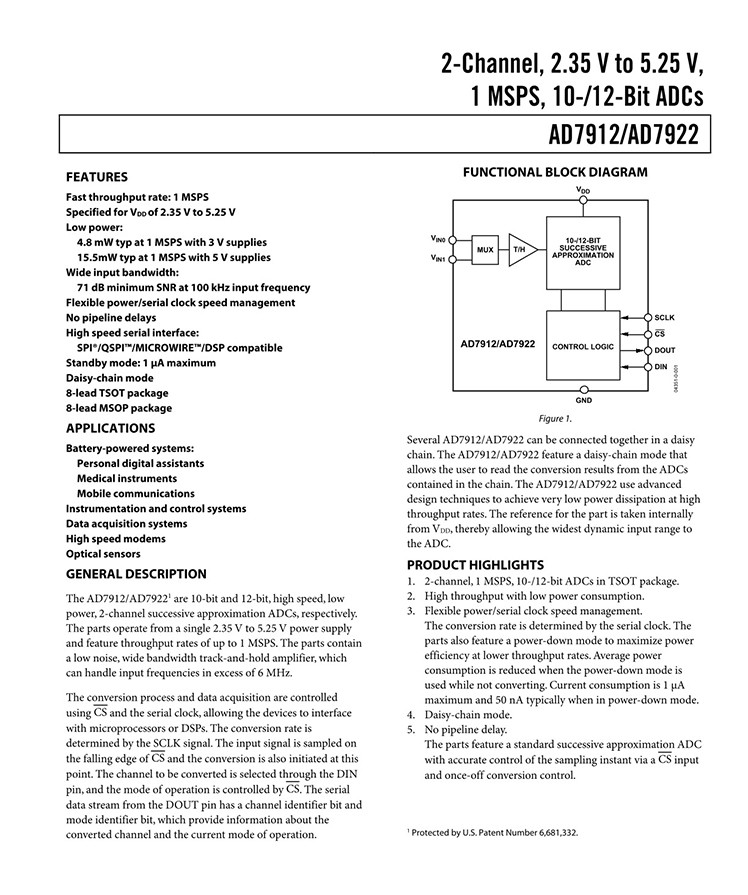

Product datasheet
For more information, please download
