Product Details
|
Description The ST3485E is ±15 kV ESD protected, 3.3 V low power transceiver for RS-485 and RS-422 communications. The device contains one driver and one receiver in half duplex configuration. The ST3485E transmits and receives at a guaranteed data rate of at least 12 Mbps. Features ■ ESD protection – ±15 kV human body model – ±8 kV IEC 1000-4-2 contact discharge ■ Operate from a single 3.3 V supply - no charge pump required ■ Interoperable with 5 V logic ■ 1 μA low current shutdown mode max ■ Guaranteed 12 Mbps data rate ■ -7 to 12 V common mode input voltage range ■ Half duplex versions available ■ Industry standard 75176 pinout ■ Current limiting and thermal shutdown for driver overload protection ■ Guaranteed high receiver output state for floating inputs with no signal present ■ Allow up to 64 transceivers on the bus |
Product Description
| Type | Description |
| ANSC PART# | ANSC-3485EC |
| Part# | 3485EC |
| Type： | Integrated Circuits |
| Manufactor | Original |
| DC | new |
| Product packaging | SOP8 |

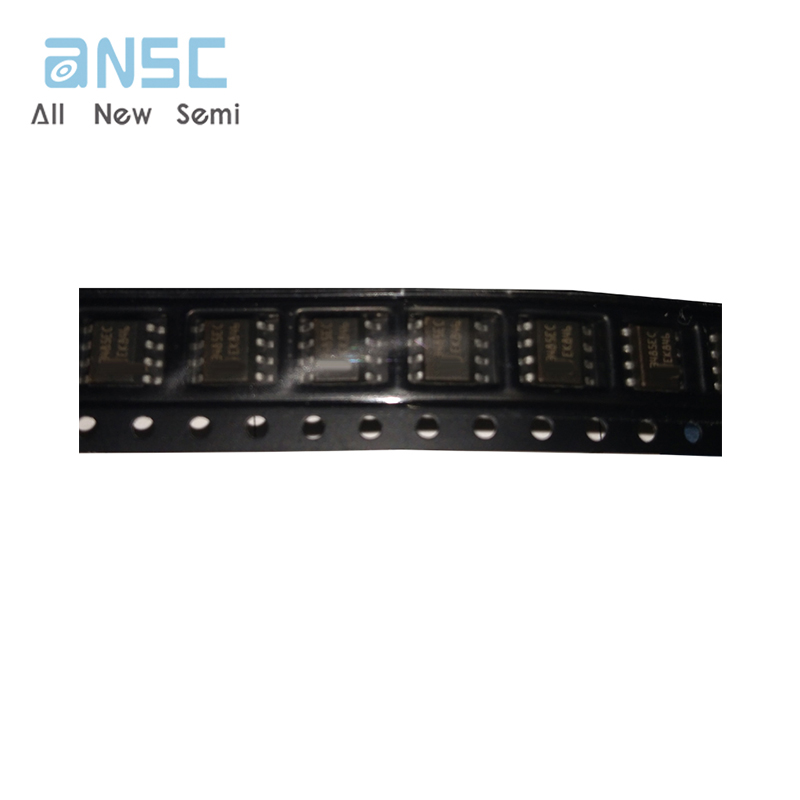

Product Photos
Payment&Transportation
Official Certificate&Certificate
Standard packaging
Multiple product supply
Welcome to visit our company
Warehouse Real Shot
