Product Descriptions

XC3000-Series Field Programmable Gate Arrays (FPGAs) provide a group of high-performance, high-density, digital integrated circuits. Their regular, extendable, flexible, user-programmable array architecture is composed of a configuration program store plus three types of configurable elements: a perimeter of I/O Blocks (IOBs), a core array of Configurable Logic Bocks (CLBs) and resources for interconnection. The general structure of an FPGA is shown in Figure 2. The development system provides schematic capture and auto place-and-route for design entry. Logic and timing simulation, and in-circuit emulation are available as design verification alternatives. The design editor is used for interactive design optimization, and to compile the data pattern that represents the configuration program.

The FPGA user logic functions and interconnections are determined by the configuration program data stored in internal static memory cells. The program can be loaded in any of several modes to accommodate various system requirements. The program data resides externally in an EEPROM, EPROM or ROM on the application circuit board, or on a floppy disk or hard disk. On-chip initialization logic provides for optional automatic loading of program data at power-up. The companion XC17XX Serial Configuration PROMs provide a very simple serial configuration program storage in a one-time programmable package.

The XC3000 Field Programmable Gate Array families provide a variety of logic capacities, package styles, temperature ranges and speed grades.

Product Features

? Complete line of four related Field Programmable Gate  Array product families

- XC3000A, XC3000L, XC3100A, XC3100L

? Ideal for a wide range of custom VLSI design tasks

- Replaces TTL, MSI, and other PLD logic

- Integrates complete sub-systems into a single  package

- Avoids the NRE, time delay, and risk of conventional  masked gate arrays

? High-performance CMOS static memory technology

- Guaranteed toggle rates of 70 to 370 MHz, logic  delays from 7 to 1.5 ns

- System clock speeds over 85 MHz

- Low quiescent and active power consumption

? Flexible FPGA architecture

- Compatible arrays ranging from 1,000 to 7,500 gate  complexity

- Extensive register, combinatorial, and I/O  capabilities

- High fan-out signal distribution, low-skew clock nets

- Internal 3-state bus capabilities

- TTL or CMOS input thresholds

- On-chip crystal oscillator amplifier

? Unlimited reprogrammability

- Easy design iteration

- In-system logic changes

? Extensive packaging options

- Over 20 different packages

- Plastic and ceramic surface-mount and pin-gridarray packages

- Thin and Very Thin Quad Flat Pack (TQFP and  VQFP) options

? Ready for volume production

- Standard, off-the-shelf product availability

- 100percent factory pre-tested devices

- Excellent reliability record

? Complete Development System

- Schematic capture, automatic place and route

- Logic and timing simulation

- Interactive design editor for design optimization

- Timing calculator

- Interfaces to popular design environments like  Viewlogic, Cadence, Mentor Graphics, and others

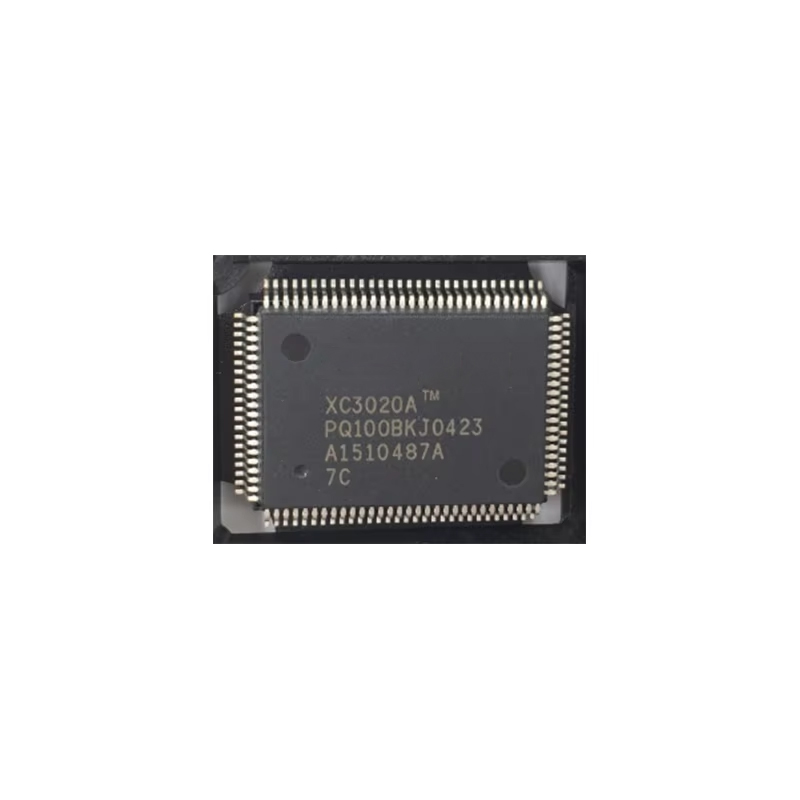

Actual product photos
