Product Descriptions

The STi7100 is a new generation, high-definition set-top box decoder chip, and provides  very high performance for low-cost HD systems. With enhanced performances over the  STi7710, it includes an H.264/AVC decoder for new low-bitrate applications, as well as dualdecode MPEG-2 capability.

Based on the Omega2 (STBus) architecture, this system on chip is a full back-end  processing solution for digital terrestrial, satellite and cable high-definition set-top boxes  compliant with ATSC, DVB, DIRECTV, DCII, OpenCable and ARIB BS4 specifications.

The STi7100 demultiplexes, decrypts and decodes a single HD or SD video stream with  associated multichannel audio. Video is output to two independently formatted displays: a  full resolution display intended for a TV monitor, and a downsampled display intended for a  VCR, or alternatively a second SD TV. Connection to a TV or display panel can be via an  analog component interface or a copy protected DVI/HDMI interface. Composite outputs are  provided for connection to the VCR with Macrovision protection. Audio is output with  optional PCM mixing to an S/PDIF interface, PCM interface or via integrated stereo audio  DACs.

Digitized analog programs can also be input to the STi7100 for reformatting and display.

The STi7100 includes a graphics rendering and display capability with a 2D graphics  accelerator, two graphics planes and a cursor plane. A dual display compositor provides  mixing of graphics and video with independent composition for each of the TV and VCR  outputs.

The STi7100 includes a stream merger to allow five different transport streams from  different sources to be merged and processed concurrently. Applications include DVR time  shifted viewing of a terrestrial program while acquiring an EPG/data stream from a satellite  or cable front end.

The flexible descrambling engine is compatible with required standards including DVB, DES,  AES and Multi2.

The STi7100 embeds a 266 MHz ST40 CPU for applications and device control. A dual  DDR1 SDRAM memory interface is used for higher performance, to allow the video decoder  the required memory bandwidth for HD H.264 decoding and sufficient bandwidth for the  CPU and the rest of the system. A second memory bus is also provided for flash memory  storing resident software and for connection of peripherals.

A hard-disk drive (HDD) can be connected either to the serial ATA interface or as an  expansion drive via the USB 2.0 port. The USB port can also be used to connect to a  DOCSIS 2.0 CM gateway for interactive cable applications.

The STi7100 is supported by STMicroelectronics’ STAPI software, and is compatible with  several other related devices such as the STi7109.

Product Features

■ The STi7100 is a single-chip, high-definition  STB decoder including:

– ST40 CPU core, 266 MHz

– dual ST231 CPU cores for audio and video  decoding, both 400 MHz

– transport filtering and descrambling

– video decoder: H.264/AVC and MPEG-2

– graphics engine and dual display: high-definition (HD) and standard definition (SD)

– audio decoder

■ The STi7100 also features the following  embedded interfaces:

– USB 2.0

– DVI/HDMI output

– digital audio and video auxiliary input

– modem

– serial ATA

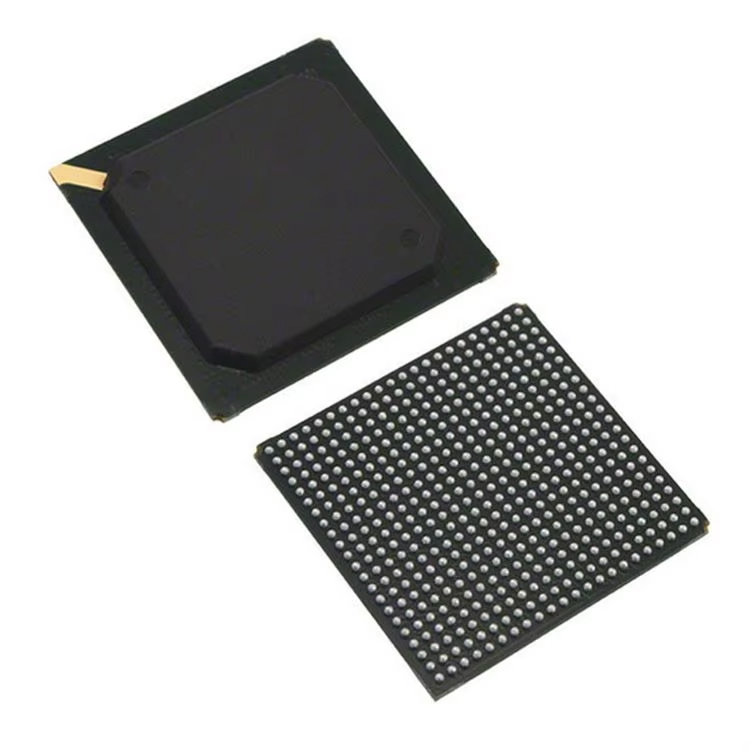

Actual product photos
