Product Advantages
? Meet the requirements of UL 508/UL840 standards for 600 V products
? Meet the requirements of IEC 61800-5-1 for electric shock protection
? The design of the middle flange reduces the space of at least one circuit compared to other solutions
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-9EDGRS-10.16-GR-L3-03P |
| 包裝類型 Packaging type | 盒裝 Boxed |
| 焊接方式 Welding method | 波峰焊/手工焊 Wave soldering/manual soldering |
| 額定電壓(B) Rated voltage (B) | 300V |
| 額定電流(B) Rated current (B) | 57A |
| 額定電壓 Rated voltage | 1000V |
| 額定電涌電壓(III/2) Rated surge voltage (III/2) | 8KV |
| 安裝類型 Installation type | 焊板 Welding plate |
| 間距 Spacing | 10.16mm |
| 位數 Digit | 3 |
| 層數 Number of layers | 1 |
| 環保事項 Environmental issues | 符合 Compliant with REACH/RoHS |
| 接觸件材料 Contact material | 銅 Copper |
| 觸點區域金屬表面 Metal surface in contact area | 鍍銀 Silvering |
| 阻燃等級 Flame retardant grade | UL94V-0 |
| 環境溫度（運行） Environmental temperature (operating) | -40℃~130℃(取決于降額曲線 Depending on the derating curve) |

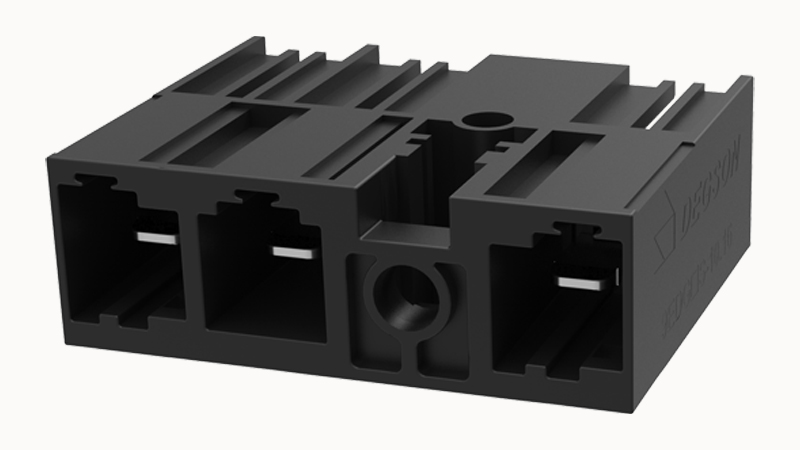

Product Show
Payment&Transportation
Official Certificate&Certificate
Multiple product supply
Company office environment
Warehouse Real Shot
Standard packaging
