Product Advantages
? Universal installation method that can be used globally
? Can be docked with 5EDGKHR-7.62 and 5EDGV/RHC-7.62 series connectors to meet diverse connection needs
? Adopting high protection design to provide touch protection for device output or board to board connections
? Can install error prevention plugins
Product Specification
| Attribute | Attribute value |

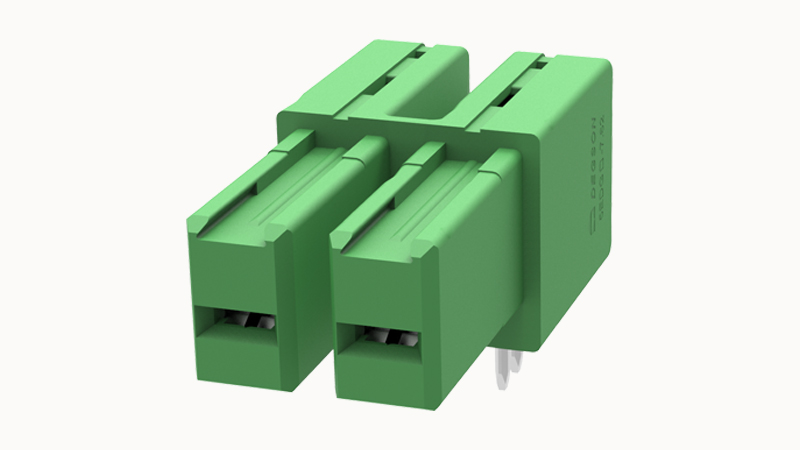

| ANSM-Part# | ANSM-5EDGA-7.62-02P |
| 包裝類型 Packaging type | 盒裝 Boxed |
| 焊接方式 Welding method | 波峰焊/手工焊 Wave soldering/manual soldering |
| 額定電壓(B) Rated voltage (B) | 300V |
| 額定電流(B) Rated current (B) | 41A |
| 額定電壓 Rated voltage | 800V |
| 額定電涌電壓(III/3) Rated surge voltage (III/3) | 4KV |
| 安裝類型 Installation type | 焊板 Welding plate |
| 間距 Spacing | 7.62mm |
| 位數(shù) Digit | 2 |
| 環(huán)保事項 Environmental issues | 符合 Compliant with REACH/RoHS |
| 接觸件材料 Contact material | 銅 Copper |
| 觸點區(qū)域金屬表面 Metal surface in contact area | 鍍錫 Tin-plating |
| 外殼顏色 Shell color | 綠 |
| 阻燃等級 Flame retardant grade | UL94V-0 |
| 環(huán)境溫度（運行） Environmental temperature (operating) | -40℃~105℃(取決于降額曲線 Depending on the derating curve) |
