Product Advantages
? Compatible with 9EDGKD-HC plug
? The insertion and removal direction is parallel to the PCB
? Fixed foot structure, PCB installation is more secure
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-9EDGRB-HC-5.0-DA-02P |
| 包裝類型 Packaging type | 盒裝 Boxed |
| 額定電壓(B) Rated voltage (B) | 300V |
| 額定電流(B) Rated current (B) | 20A |
| 額定電壓 Rated voltage | 500V |
| 額定電涌電壓(III/3) Rated surge voltage (III/3) | 4KV |
| 安裝類型 Installation type | 焊板 Welding plate |
| 連接方式 Connection method | 直插式彈簧連接 Direct insertion spring connection |
| 間距 Spacing | 5mm |
| 位數(shù) Digit | 4 |
| 環(huán)保事項 Environmental issues | 符合 Compliant with REACH/RoHS |
| 接觸件材料 Contact material | 銅合金 Ccopper alloy |
| 觸點區(qū)域金屬表面 Metal surface in contact area | 鍍錫 Tin-plating |
| 外殼顏色 Shell color | 黑 Black |
| 阻燃等級 Flame retardant grade | UL94V-0 |
| 環(huán)境溫度（運行） Environmental temperature (operating) | -40℃~105℃(取決于降額曲線 Depending on the derating curve) |

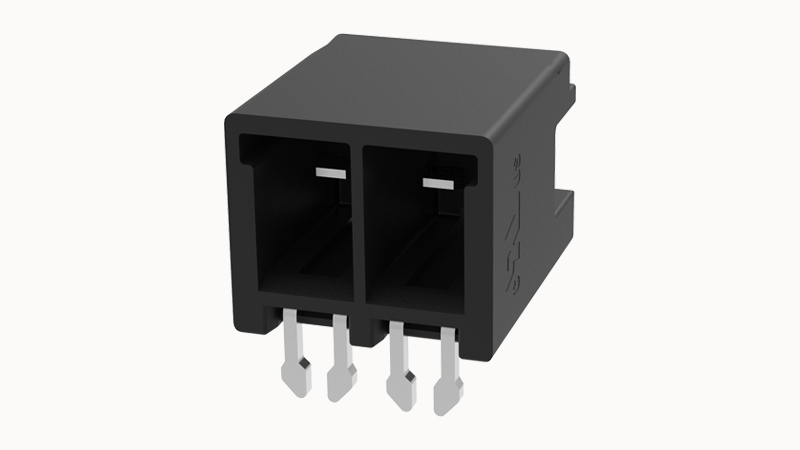

Product Show
