Product Advantages
? Compact design, saving cabinet space
? PUSH-IN connection technology, fast wiring
? Secure buckle design, stable connection
Product Specification
| Attribute | Attribute value |

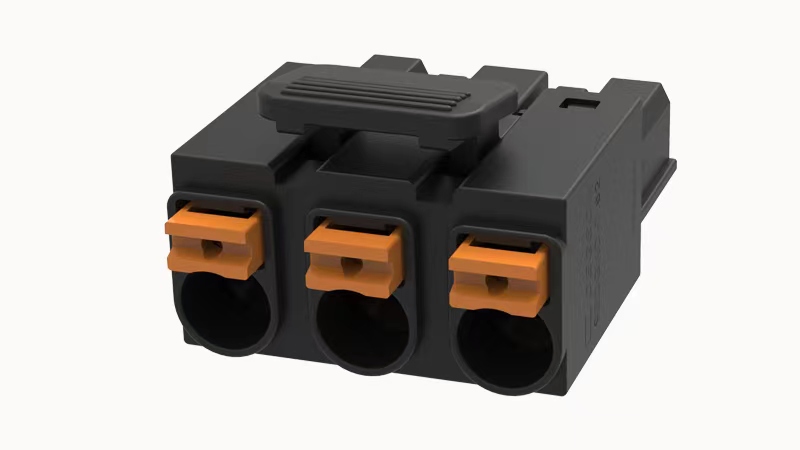

| ANSM-Part# | ANSM-9EDGKD-7.62-03P |
| 包裝類型 Packaging type | 袋裝 In bags |
| 硬導線橫截面 Cross section of hard wire | 0.5~4mm2 |
| 柔性導線橫截面 Cross section of flexible wire | 0.5~2.5mm2 |
| 可連接導線橫截面 Cross section of connectable wires | 20~2AWG |
| 剝線長度 Strip length | 10mm |
| 額定電壓(B) Rated voltage (B) | 600V |
| 額定電流(B) Rated current (B) | 20A |
| 額定電壓 Rated voltage | 630V |
| 額定電涌電壓(III/3) Rated surge voltage (III/3) | 6KV |
| 連接方式 Connection method | 直插式彈簧連接 Direct insertion spring connection |
| 間距 Spacing | 7.62mm |
| 位數 Digit | 3 |
| 層數 Number of layers | 1 |
| 環保事項 Environmental issues | 符合 Compliant with REACH/RoHS |
| 接觸件材料 Contact material | 銅合金 Copper alloy |
| 觸點區域金屬表面 Metal surface in contact area | 鍍錫 Tin-plating |
| 絕緣材料 Insulation material | PA66 |
| 外殼顏色 Shell color | 黑 Black |
| 阻燃等級 Flame retardant grade | UL94V-0 |
| 環境溫度（運行） Environmental temperature (operating) | -40℃~105℃(取決于降額曲線Depends on the derating curve) |
