Product Advantages

? Compatible with multiple types of sockets, the device design is highly flexible

? Cage spring wiring, excellent vibration resistance

? The buckle is placed on both sides to save product space

Attribute	Attribute value
ANSM-Part#	ANSM-9EDGKG-5.08-05P
包裝類型 Packaging type	袋裝 In bags
硬導線橫截面 Cross section of hard wire	0.2~2.5mm2
柔性導線橫截面 Cross section of flexible wire	0.2~2.5mm2
可連接導線橫截面 Cross section of connectable wires	28~14AWG
剝線長度 Strip length	9mm
額定電壓(B) Rated voltage (B)	300V
額定電流(B) Rated current (B)	14.5A
額定電壓 Rated voltage	160V
額定電涌電壓(III/2) Rated surge voltage (III/2)	4KV
連接方式 Connection method	回拉式彈簧連接 Pull back spring connection
間距 Spacing	5.08mm
位數 Digit	5
層數 Number of layers	1
環保事項 Environmental issues	符合 Compliant with REACH/RoHS
接觸件材料 Contact material	銅合金 Copper alloy
觸點區域金屬表面 Metal surface in contact area	鍍金 Gold-plating
絕緣材料 Insulation material	PA66
外殼顏色 Shell color	黑 Black
阻燃等級 Flame retardant grade	UL94V-0
環境溫度（運行） Environmental temperature (operating)	-40℃~105℃(取決于降額曲線Depends on the derating curve)

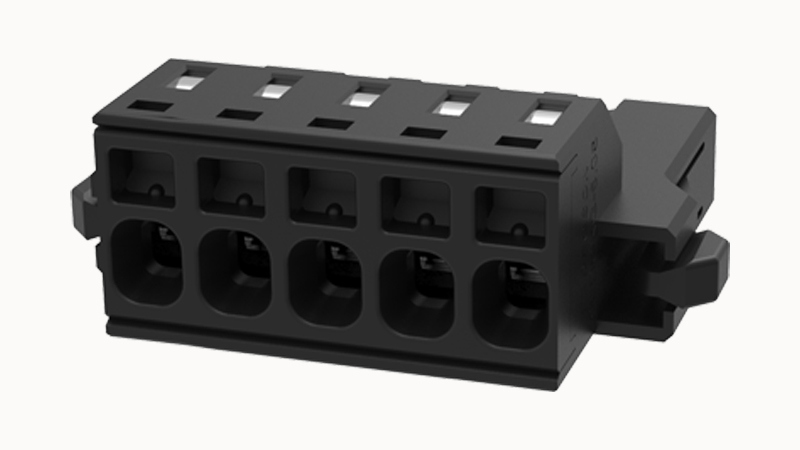

9EDGKG-5.08-05P
