Product Advantages
? Universal installation method that can be used globally
? Can be docked with 2EDGA-HV-7.62 and 2EDGKHV-7.62 series connectors to meet diverse connection needs
? Reverse connectors can provide touch protection for device output or free hanging wire to wire connections
? Can install error prevention plugins
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-2EDGKHR-7.62-02P |
| 包裝類型 Packaging type | 盒裝 Boxed |
| 硬導線橫截面 Cross section of hard wire | 0.2~2.5mm2 |
| 柔性導線橫截面 Cross section of flexible wire | 0.2~2.5mm2 |
| 塞規a x b／直徑 Plug gauge a x b/diameter | 2.8mm x2.0mm/2.4mm |
| 可連接導線橫截面 Cross section of connectable wires | 30~12AWG |
| 扭矩 Torque | 0.6N.m |
| 剝線長度 Strip length | 8mm |
| 額定電壓(B) Rated voltage (B) | 600V |
| 額定電流(B) Rated current (B) | 16A |
| 額定電壓 Rated voltage | 1000V |
| 額定電涌電壓(III/3) Rated surge voltage (III/3) | 8KV |
| 連接方向 Connection direction | 0° |
| 連接方式 Connection method | 螺釘連接 Screw connection |
| 螺釘頭驅動方式 Screw head driving method | 一字螺絲刀 A screwdriver |
| 螺紋 Thread | M3 |
| 是否插拔 Whether to plug or unplug | 是 Yes |
| 間距 Spacing | 7.62mm |
| 位數 Digit | 2 |
| 層數 Number of layers | 1 |
| 環保事項 Environmental issues | 符合 Compliant with REACH/RoHS |
| 接觸件材料 Contact material | 銅合金 Copper alloy |
| 接線點金屬表面 Connection point metal surface | 鍍錫 Tin-plating |
| 觸點區域金屬表面 Metal surface in contact area | 鍍錫 Tin-plating |
| 絕緣材料 Insulation material | PA66 |
| 外殼顏色 Shell color | 綠 Green |
| 絕緣材料組 Insulation material group | Ⅰ |
| 阻燃等級 Flame retardant grade | UL94V-0 |
| 環境溫度（運行） Environmental temperature (operating) | -40℃~105℃(取決于降額曲線 depending on the derating curve) |

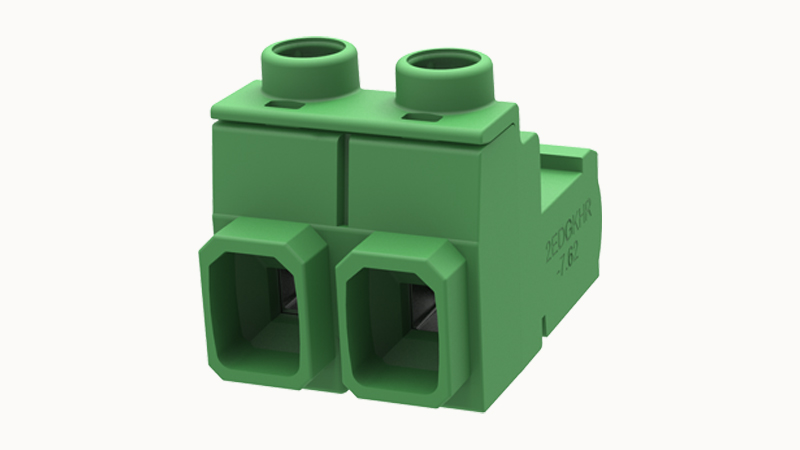

Product Show
