Product Advantages
? Push In direct insertion spring connection, no tools required to connect wires
? Dual bar spring patented technology, comfortable and effortless to operate when pulling the lever
? The operating lever can be kept open for easy connection of multi-core cables
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-5EDGKDLR-7.62-02P |
| 可連接導線橫截面 Cross section of connectable wires | 20~8AWG |
| 硬導線橫截面 Cross section of hard wire | 0.5~10mm2 |
| 柔性導線橫截面 Cross section of flexible wire | 0.5~10mm2 |
| 剝線長度 Strip length | 12mm |
| 額定電壓(B) Rated voltage (B) | 600V |
| 額定電流 Rated voltage | 41A |
| 額定電涌電壓(III/3) Rated surge voltage (III/3) | 8KV |
| 連接方向 Connection direction | 0° |
| 連接方式 Connection method | 直插式彈簧連接 Direct insertion spring connection |
| 是否插拔 Whether to plug or unplug | 是 Yes |
| 間距 Spacing | 7.62mm |
| 位數 Digit | 2 |
| 層數 Number of layers | 1 |
| 環保事項 Environmental issues | 符合 Compliant with REACH/RoHS |
| 接觸件材料 Contact material | 銅 Copper |
| 接線點金屬表面 Connection point metal surface | 鍍錫 Tin-plating |
| 觸點區域金屬表面 Metal surface in contact area | 鍍錫 Tin-plating |
| 絕緣材料 Insulation material | PA66 |
| 阻燃等級 Flame retardant grade | UL94V-0 |
| 環境溫度（運行） Environmental temperature (operating) | -40℃~105℃(取決于降額曲線depending on the derating curve) |

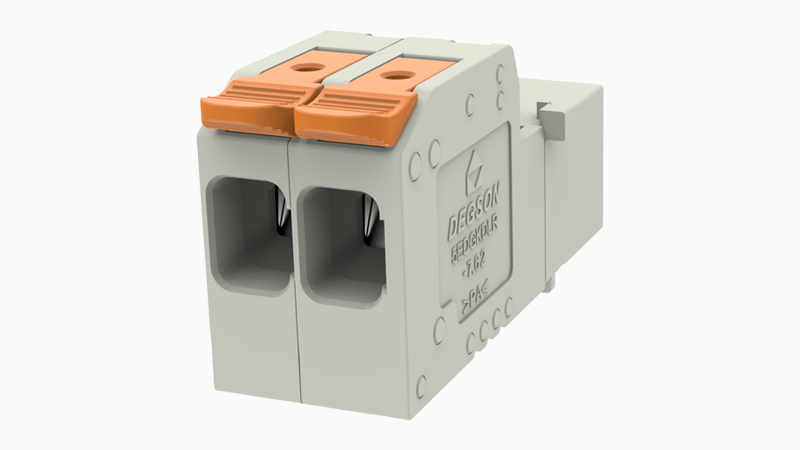

Product Show
Payment&Transportation
Official Certificate&Certificate
Multiple product supply
Company office environment
Warehouse Real Shot
Standard packaging
