Product Advantages

? PUSH-IN connection technology, fast wiring

? Universal installation method, suitable for various occasions

Attribute	Attribute value
ANSM-Part#	ANSM-2EDGKN-5.0-02P
環境溫度（運行） Environmental temperature (operating)	-40 °C ~ 105 °C（取決于降額曲線depending on the derating curve）
硬導線橫截面 Cross section of hard wire	0.2~2.5mm2
柔性導線橫截面 Cross section of flexible wire	0.2~2.5mm2
可連接導線橫截面 Cross section of connectable wires	24~16AWG
剝線長度 Strip length	11mm
額定電壓(B) Rated voltage (B)	300V
額定電流(B) Rated current (B)	10A
額定電壓 Rated voltage	400V
額定電涌電壓(III/3) Rated surge voltage (III/3)	4KV
連接方式 Connection method	直插式彈簧連接 Direct insertion spring connection
螺釘頭驅動方式 Screw head driving method	十一字螺絲刀 Eleven character screwdriver
是否插拔 Whether to plug or unplug	是 Yes
間距 Spacing	5mm
位數 Digit	2
層數 Number of layers	1
環保事項 Environmental issues	符合 Compliant withREACH/RoHS
接觸件材料 Contact material	銅合金 Copper alloy
觸點區域金屬表面 Metal surface in contact area	鍍錫 Tin-plating
絕緣材料 Insulation material	PA66
外殼顏色 Shell color	綠 Green
阻燃等級 Flame retardant grade	UL94V-0

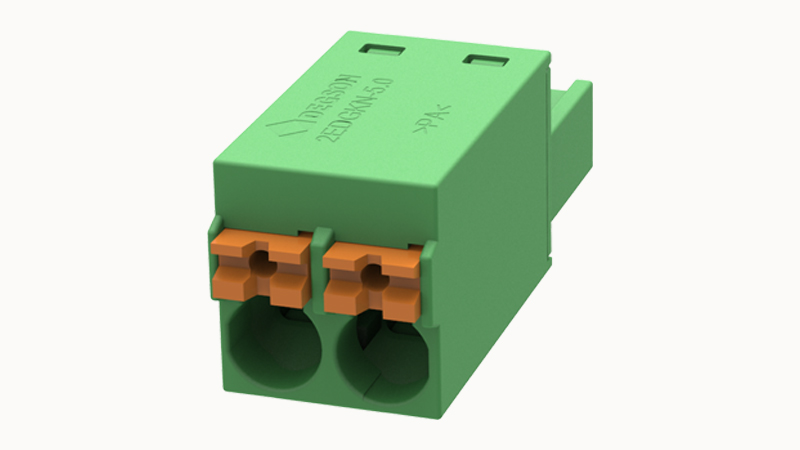

2EDGKN-5.0-02P
