Product Description
| Product Introduction The MLX90393, based on Melexis' proprietary Triaxis technology, offers a limitless solution for all forms of human-machine interface (HMI) design. Applications range from joysticks, slide switches, push/pull switches, levelers, linear slide switches, and knobs to complex 3D position sensing systems. The MLX90393 is a digital-output 3D Hall effect chip that can read the magnetic field in the X, Y, and Z axes using either SPI or I2C. It acquires precise measurement data and temperature-compensated data T. It supports multiple operating modes, including single-shot measurement, continuous sensing, and wake-up/sleep measurement, adapting to diverse application scenarios. |

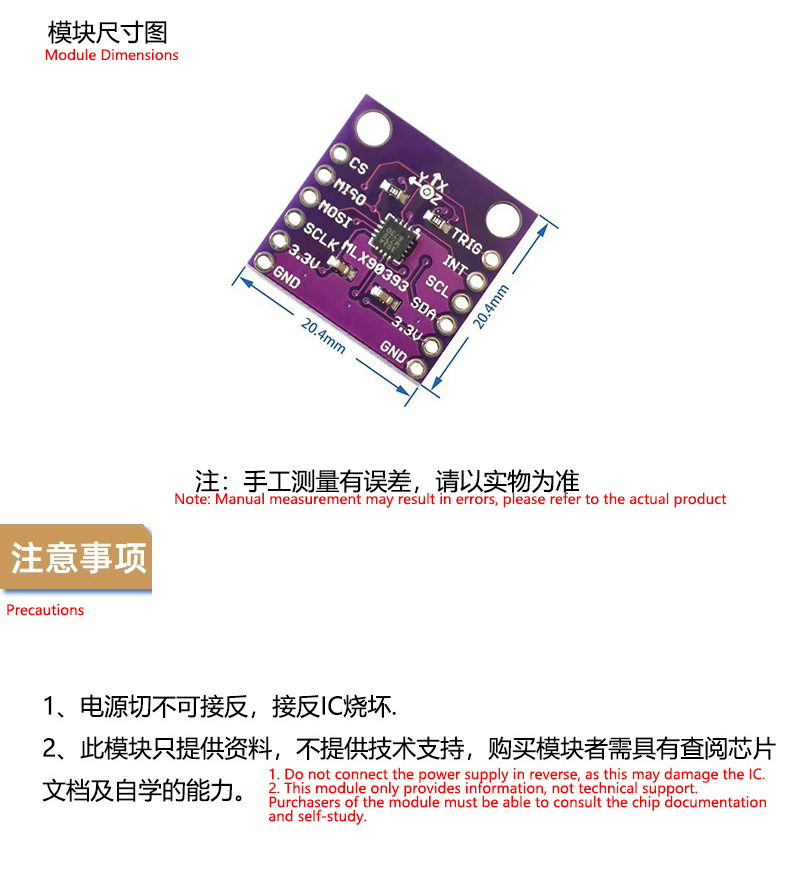

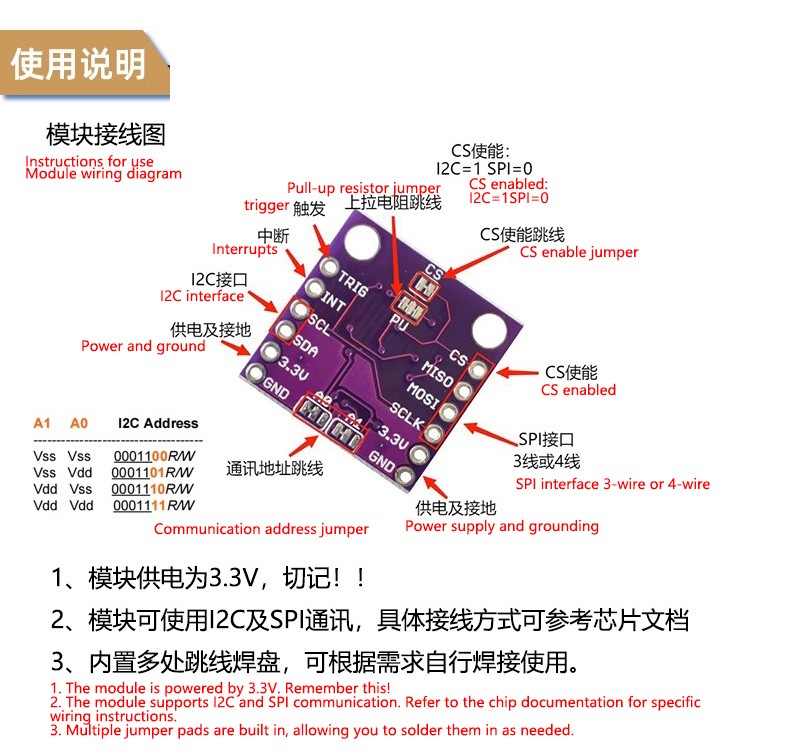

| Features ● Operating voltage: 3.3V ● Output data: X, Y, and Z axis position output and temperature data T ● 16-bit AD, low power consumption ● Compact module with mounting holes ● Communication: I2C and SPI with programmable address ● TRIG and INT pins ● Pull-up resistor, communication address, and CS enable jumper pads ● Output interface: 2.54mm pitch solder holes ● Dimensions: 20.4mm x 20.4mm (L x W) |
Product Photos
