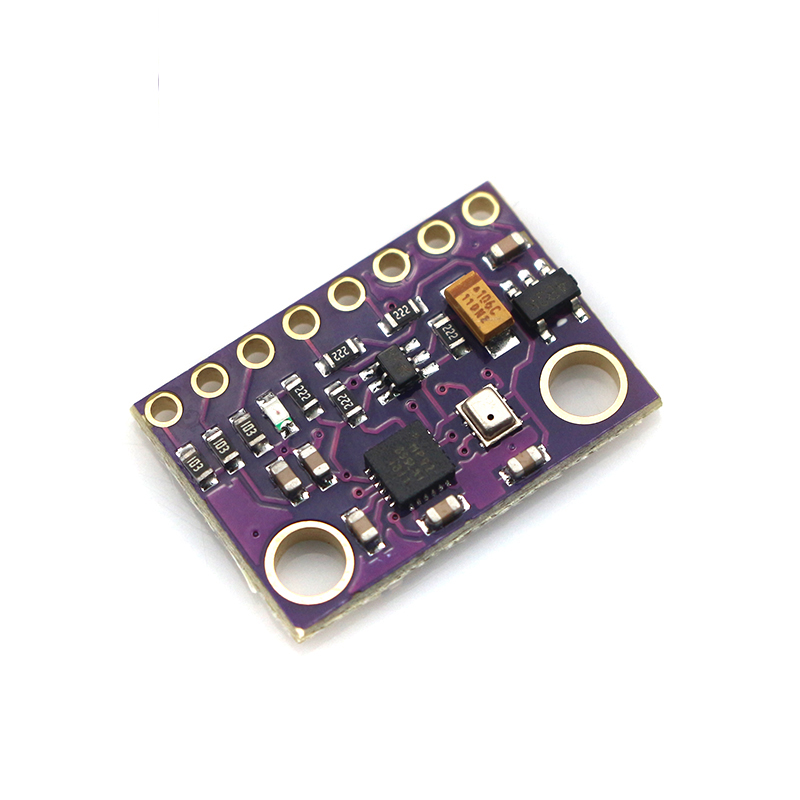

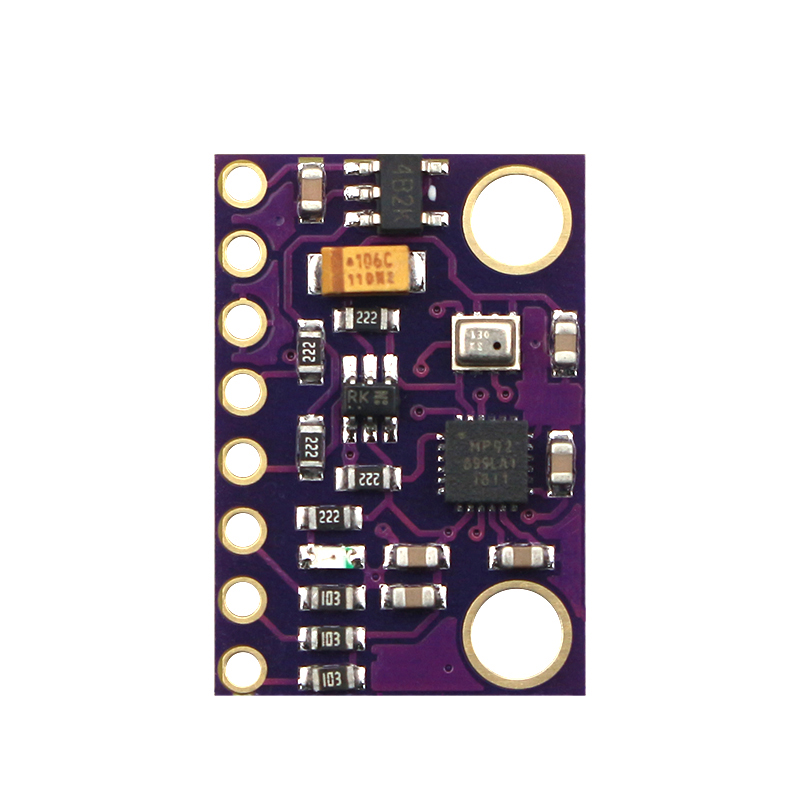

Spot GY-91 MPU9250+BMP280 10DOF Acceleration Gyroscope Compass Nine Axis Sensor Module Quality Assurance
Product Descriptions：
MPU-9250+BMP280 module
(Three axis gyroscope+Three axis acceleration+Three axis magnetic field+Air pressure)
Module model: GY-91
Using chips: MPU-9250+BMP280
Power supply: 3-5V (internal low voltage differential stabilization)
Communication method: Standard IIC/SPI communication protocol
The chip is equipped with a 16 bit AD converter for 16 bit data output
Gyroscope range: ± 250, 500, 1000, 2000 °/s
Acceleration range: ± 2 ± 4 ± 8 ± 16g
Magnetic field range: ± 4800uT
Pressure range: 300-1100hPa
Adopting gold-plated PCB and machine soldering process to ensure quality
Pin spacing 2.54mm
Module size 14.3mm * 25mm
