Product Features

Core

? Arm? Cortex?-M7 running at up to 300 MHz

? 16 Kbytes of I-Cache and 16 Kbytes of D-Cache with Error Code Correction (ECC)

? Single-precision and double-precision HW Floating Point Unit (FPU)

? Memory Protection Unit (MPU) with 16 zones

? DSP Instructions, Thumb?-2 Instruction Set

? Embedded Trace Module (ETM) with instruction trace stream, including Trace Port Interface Unit (TPIU)

Memories

? Up to 2048 Kbytes embedded Flash with unique identifier and user signature for user-defined data

? Up to 384 Kbytes embedded Multi-port SRAM

? Tightly Coupled Memory (TCM)

? 16 Kbytes ROM with embedded Bootloader routines (UART0, USB) and IAP routines

? 16-bit Static Memory Controller (SMC) with support for SRAM, PSRAM, LCD module, NOR and NAND Flash with on-the-fly scrambling

System

? Embedded voltage regulator for single-supply operation

? Power-on-Reset (POR), Brown-out Detector (BOD) and Dual Watchdog for safe operation

? Quartz or ceramic resonator oscillators: 3 MHz to 20 MHz main oscillator with failure detection, 12 MHz or 16 MHz needed for USB operations. Optional low-power 32.768 kHz for RTC or device clock

? RTC with Gregorian calendar mode, waveform generation in low-power modes

? RTC counter calibration circuitry compensates for 32.768 kHz crystal frequency variations

? 32-bit low-power Real-time Timer (RTT)

? High-precision Main RC oscillator with 12 MHz default frequency

? 32.768 kHz crystal oscillator or Slow RC oscillator as source of low-power mode device clock (SLCK)

? One 500 MHz PLL for system clock, one 480 MHz PLL for USB high-speed operations

? Temperature Sensor

? One dual-port 24-channel central DMA Controller (XDMAC) Low-Power Features

? Low-power sleep, wait and backup modes, with typical power consumption down to 1.1 μA in Backup mode with RTC, RTT and wakeup logic enabled

? Ultra low-power RTC and RTT

? 1 Kbyte of backup RAM (BRAM) with dedicated regulator

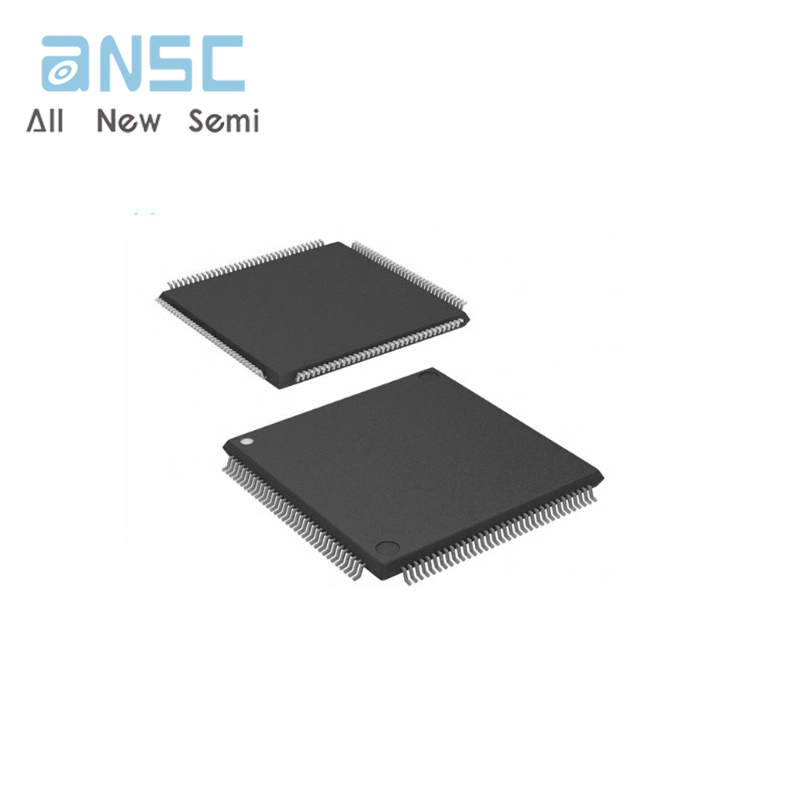

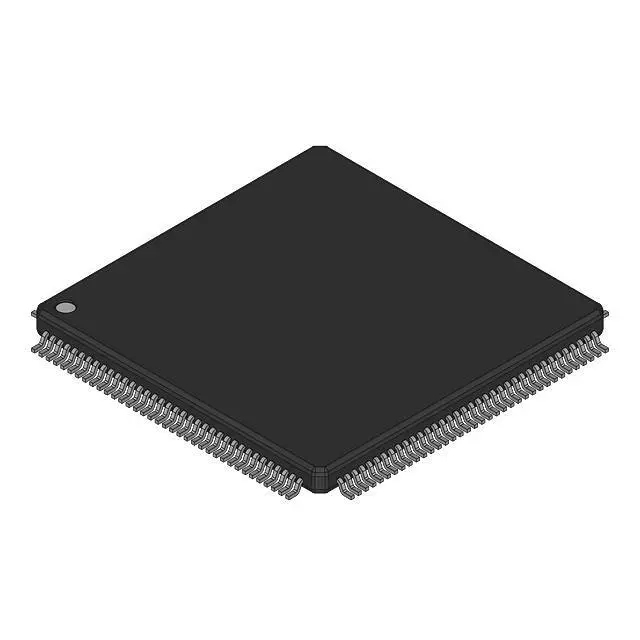

Actual product photos
