Product Descriptions

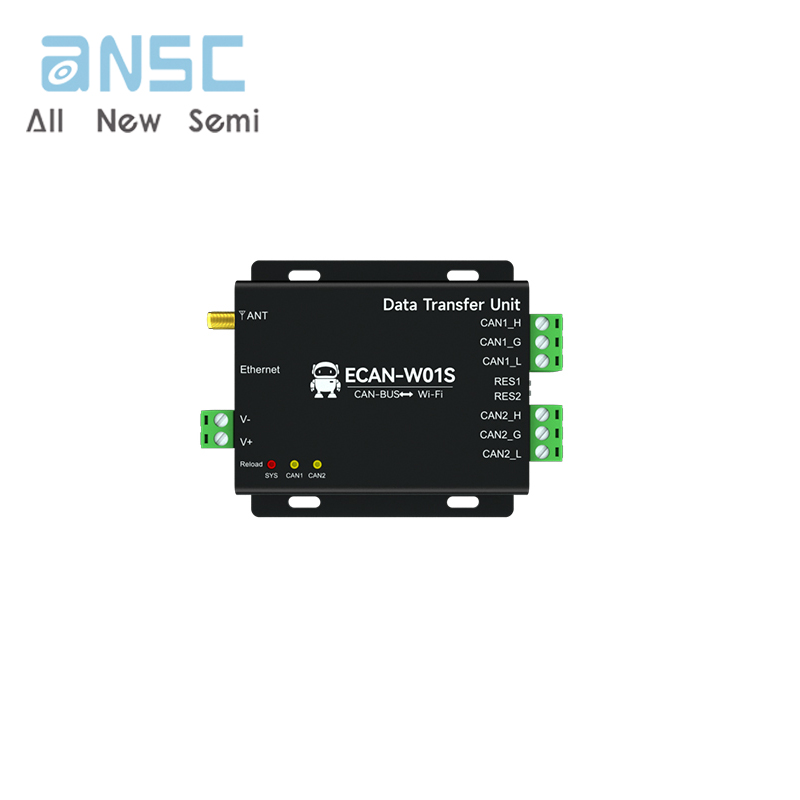

ECAN-W01S is a high-performance industrial WIFI and CAN bus data conversion equipment developed by EBT. It integrates two CAN bus interfaces, one EtherNet interface and one WiFi interface internally, which can easily complete the interworking of CAN bus network and WiFi network.

ECAN-W01S has a built-in 120 ohm resistor, which can be enabled by dialing; Support the operation within the temperature range of - 40 ℃~85 ℃. It has a 10M Ethernet interface. Customers can use the network cable to connect the PC end and enter the configuration software to configure the device parameters; The device WiFi network has two modes: AP and STA, which can quickly establish or access the WiFi network; 2-channel CAN port communication supports fixed common CAN baud rate and user-defined CAN baud rate, with the highest baud rate of 1Mbps; At the same time, the device has multiple working modes such as TCP Server, TCP Client, UDP, etc.

Product Features

? Integrated 2-way CAN bus interface, using plug-in terminal wiring mode;

? Support CAN2.0A and CAN2.0B frame formats and conform to ISO/DIS 11898 specification;

? CAN bus communication baud rate between 5Kbps and 1Mbps can be programmed arbitrarily;

? Dual CAN transceiver supports dual server, and each channel supports up to 4 links;

? Integrated 2.4G WiFi interface, conforming to IEEE802.11a/b/g standard;

? Support WiFi AP/STA mode, and access up to 5 STA devices in AP mode;

? Maximum transmission data flow: 8000 frames/second; Maximum received data flow: 14000 frames/second;

? Support registration package and heartbeat package;

? Support DHCP and DNS;

? Support offline restart/timeout restart;

? Support upper computer configuration;

? Support online modification of baud rate;

? Including 120 ohm resistance;

? Built in watchdog;

? Network interface upgrading function;

? Working temperature range: - 40 ℃~+85 ℃.

Specifications
