Product Details
|
DESCRIPTION The LTC? 4365 protects applications where power supply input voltages may be too high, too low or even negative. It does this by controlling the gate voltages of a pair of external N-channel MOSFETs to ensure that the output stays within a safe operating range. The LTC4365 can withstand voltages between –40V and 60V and has an operating range of 2.5V to 34V, while consuming only 125μA in normal operation. FEATURES Wide Operating Voltage Range: 2.5V to 34V Overvoltage Protection to 60V Reverse Supply Protection to –40V Blocks 50Hz and 60Hz AC Power No Input Capacitor or TVS Required for Most Applications Adjustable Undervoltage and Overvoltage Protection Range Charge Pump Enhances External N-Channel MOSFET Low Operating Current: 125μA Low Shutdown Current: 10μA Fault Status Output Compact 8-Lead, 3mm × 2mm DFN and TSOT-23 (ThinSOT?) Packages |
Product Description
| Type | Description |
| ANSC PART# | ANSC- LTC4364HS-2#PBF |
| Category | Circuit Protection |
| Surge Suppression ICs | |
| Manufacturer | Original |
| Series | - |
| Packaging | Tube |
| Part Status | Active |
| Voltage - Clamping | Adjustable |
| Technology | External Switch |
| Number of Circuits | 1 |
| Applications | General Purpose |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 16-SO |
| Voltage - Working | 4 ~ 80V |
| Base Product Number | LTC4364 |

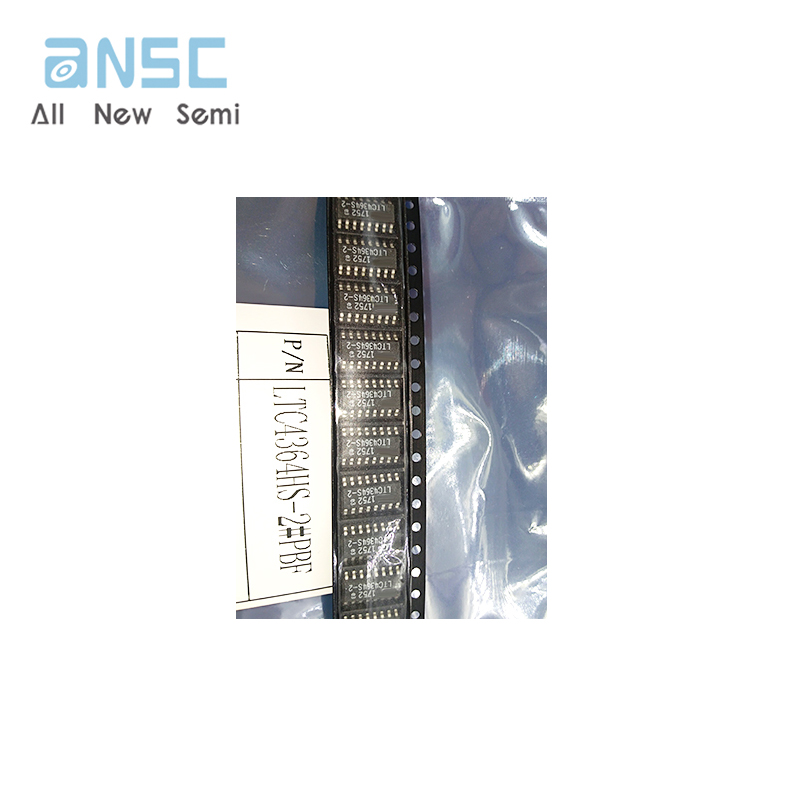

Product Photos

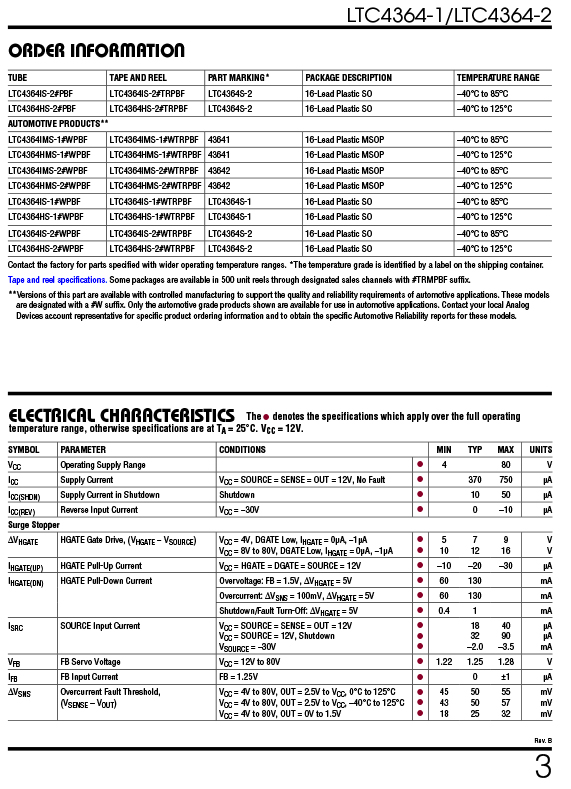

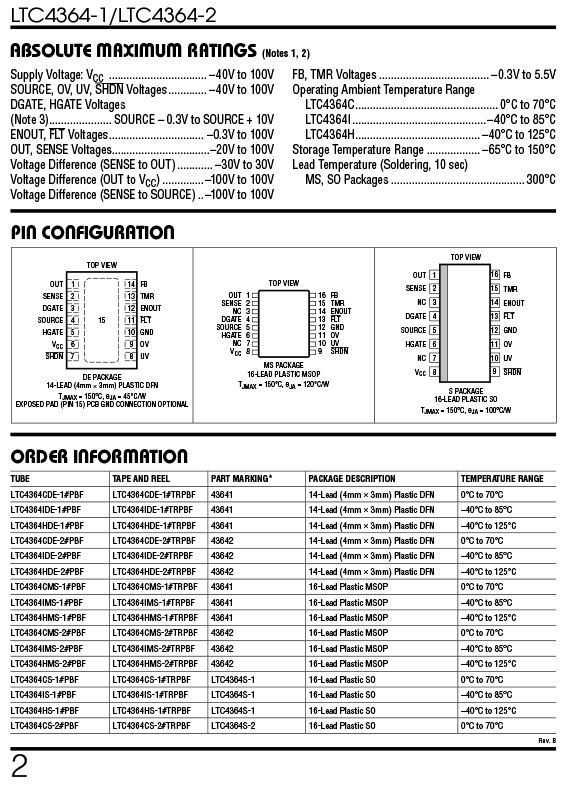

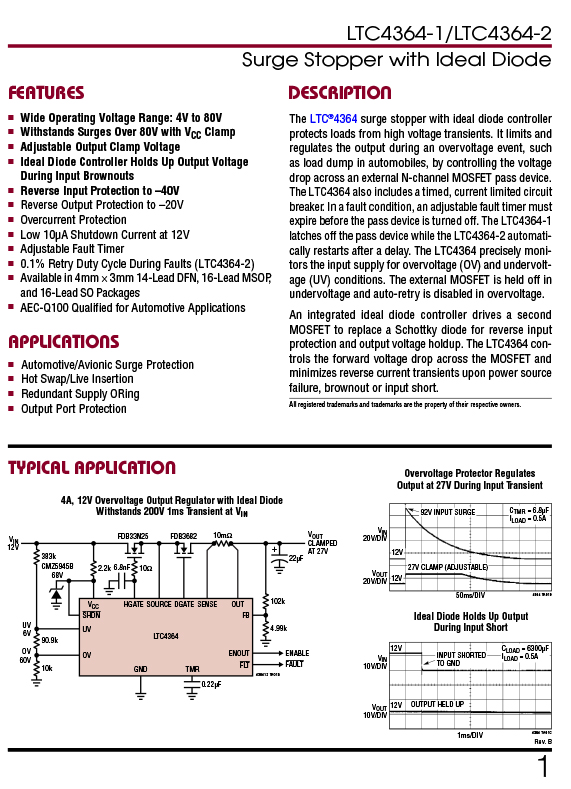

Product datasheet
For more information, please download
