Product Details
|
analog switches and TTL and CMOS compatible digital inputs. These switches feature lower analog ON resistance (<85Ω) and faster switch time (tON <250ns) compared to the DG211 and DG212. Charge injection has been reduced, simplifying sample and hold applications. Features ? ON Resistance (Max). . . . . . . . . . . . . . . . . . . . . . . . . 85Ω ? Low Power Consumption (PD) . . . . . . . . . . . . . . . <35μW ? Fast Switching Action - tON (Max) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 250ns - tOFF (Max, DG444) . . . . . . . . . . . . . . . . . . . . . . . 140ns ? Low Charge Injection ? Upgrade from DG211, DG212 ? TTL, CMOS Compatible ? Single or Split Supply Operation ? Pb-Free Plus Anneal Available (RoHS Compliant) Applications ? Audio Switching ? Battery Operated Systems ? Data Acquisition ? Hi-Rel Systems ? Sample and Hold Circuits ? Communication Systems ? Automatic Test Equipment |
Product Description
| TYPE | DESCRIPTION |
| ANSC PART# | ANSC- DG445DY |
| Category | Integrated Circuits (ICs) |
| Interface | |
| Analog Switches, Multiplexers, Demultiplexers | |
| Manufacturer | Original |
| Series | - |
| Packaging | Tube |
| Part Status | Obsolete |
| Switch Circuit | SPST - NO |
| Multiplexer/Demultiplexer Circuit | 1:01 |
| Number of Circuits | 4 |
| On-State Resistance (Max) | 85Ohm |
| Channel-to-Channel Matching (ΔRon) | 4Ohm (Max) |
| Voltage - Supply, Single (V+) | 10V ~ 30V |
| Voltage - Supply, Dual (V±) | ±4.5V ~ 20V |
| Switch Time (Ton, Toff) (Max) | 250ns, 170ns |
| -3db Bandwidth | - |
| Charge Injection | 5pC |
| Channel Capacitance (CS(off), CD(off)) | 4pF, 4pF |
| Current - Leakage (IS(off)) (Max) | 500pA |
| Crosstalk | -100dB @ 1MHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 16-SOIC |
| Base Product Number | DG445 |

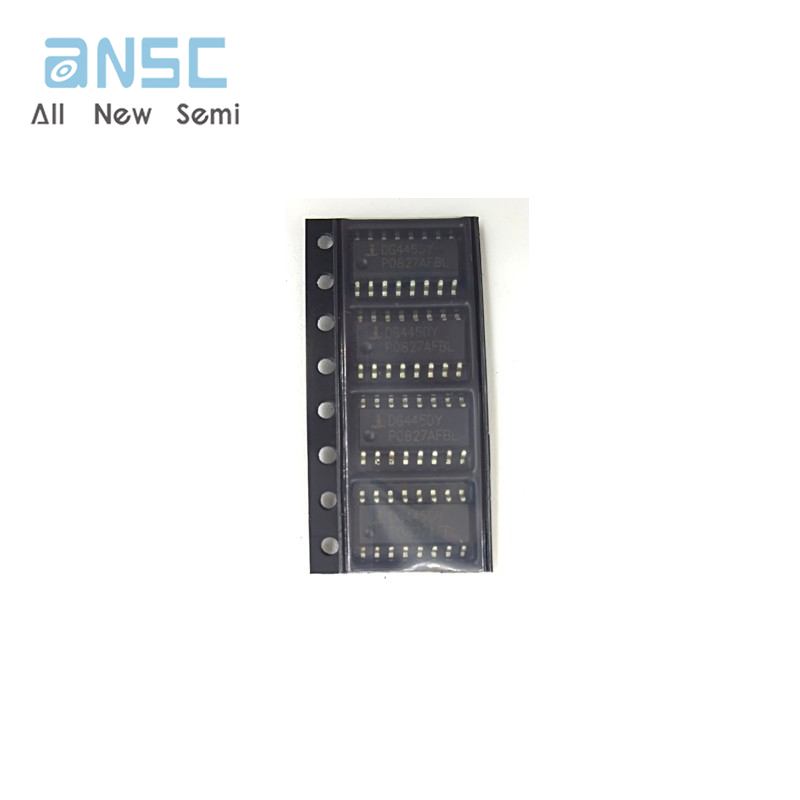

Product Photos

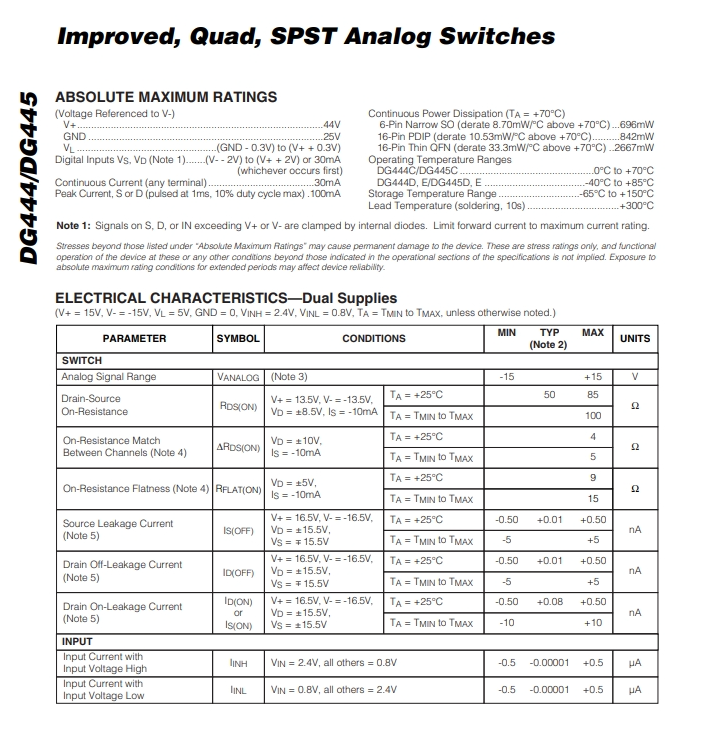

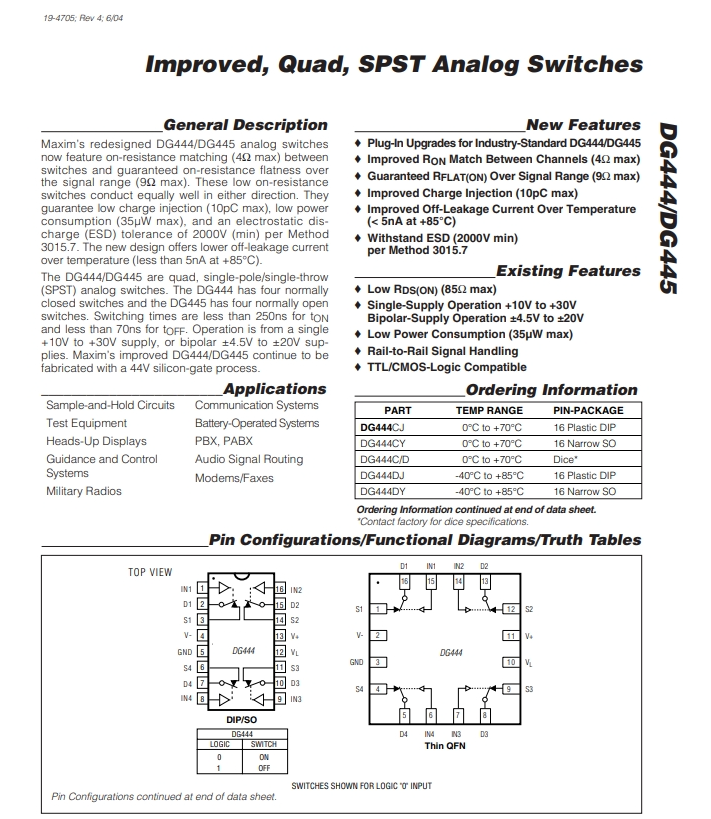

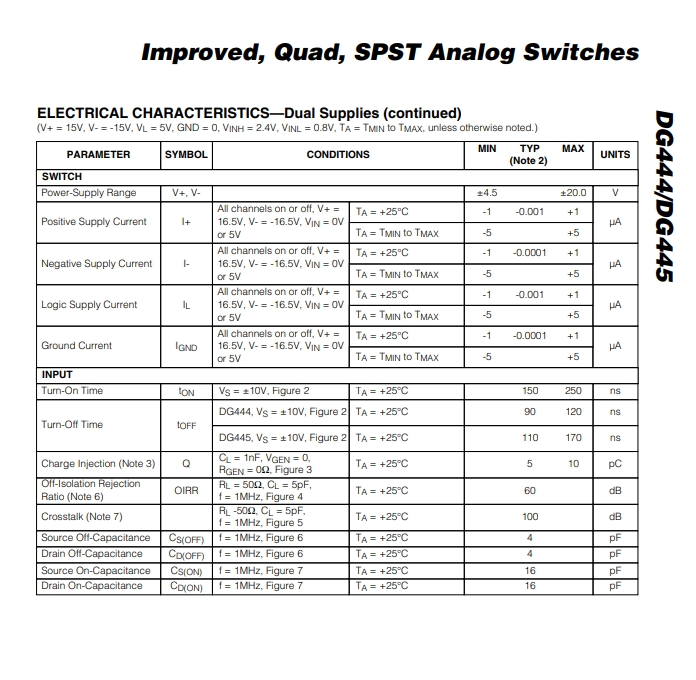

Product datasheet
For more information, please download
