Product Details
|
DESCRIPTION The ADS1225 and ADS1226 are 24-bit delta-sigma analog-to-digital (A/D) converters. They offer excellent performance, ease-of-use, and low power in a small 4mm × 4mm QFN package and are well-suited for demanding high-resolution measurements, especially in portable and other space-saving and power-constrained applications. FEATURES ? 100SPS Data Rate (High-Speed Mode) ? Single-Cycle Settling ? Easy Conversion Control with START Pin ? Automatic Shutdown ? Low Noise: 4μVRMS Noise (High-Resolution Mode) ? Input Multiplexer with Two Differential Channels (ADS1226) ? Voltage Reference Supports Ratiometric Measurements ? Self-Calibrating ? Simple Read-Only 2-Wire Serial Interface ? Internal High-Impedance Input Buffer ? Internal Temperature Sensor ? Internal Oscillator ? Low-Power: 1mW While Operating, < 1μA During Shutdown ? Analog and Digital Supplies: 2.7V to 5.5V APPLICATIONS ? Hand-Held Instrumentation ? Portable Medical Equipment ? Industrial Process Control |
Product Description
| Type | Description |
| ANSC PART# | ANSC - ADS1148IPWR |
| Category | Integrated Circuits (ICs) |
| Data Acquisition | |
| Analog to Digital Converters (ADC) | |
| Manufacturer | Original |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| / | |
| Part Status | Active |
| Number of Bits | 16 |
| Sampling Rate (Per Second) | 2k |
| Number of Inputs | 4, 7 |
| Input Type | Differential, Single Ended |
| Data Interface | SPI |
| Configuration | MUX-PGA-ADC |
| Ratio - S/H:ADC | - |
| Number of A/D Converters | 1 |
| Architecture | Sigma-Delta |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 2.7V ~ 5.25V |
| Voltage - Supply, Digital | 2.7V ~ 5.25V |
| Features | PGA |
| Operating Temperature |
-40°C ~ 105°C |
| Package / Case | 28-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 28-TSSOP |
| Mounting Type | Surface Mount |
| Base Product Number | ADS1148 |

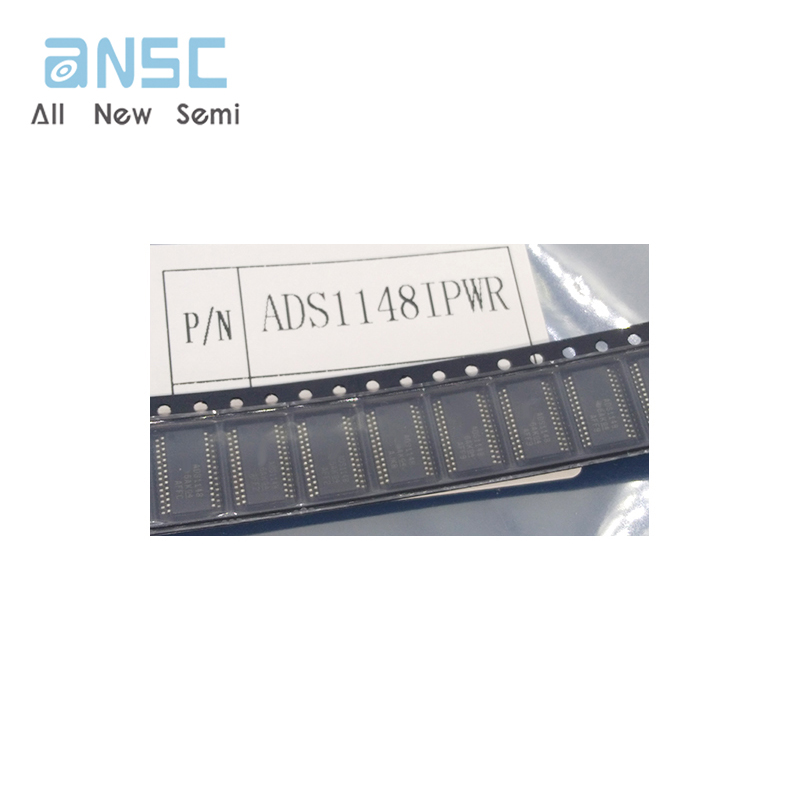

Product Photos

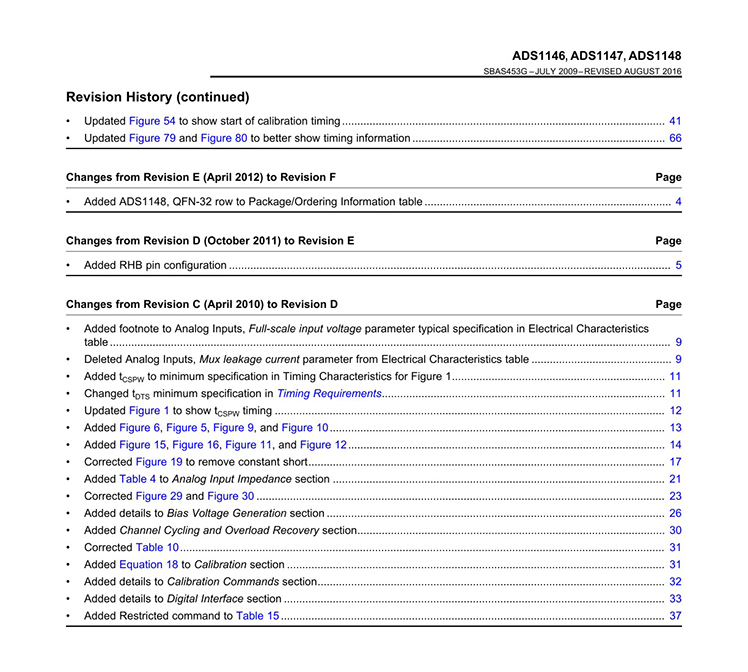

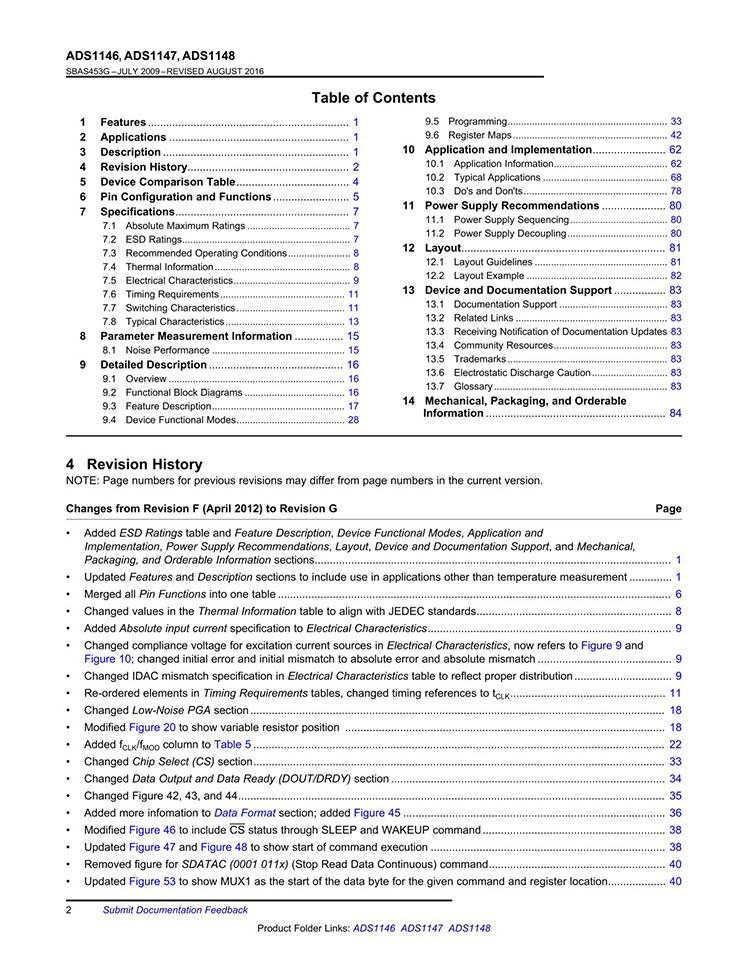

Product datasheet
