Product Description
| Type# | Description |
| ANSC PART# | ANSC - 74FCT823BP |
| Ihs Manufacturer | Original |
| Part Package Code | PDIP |
| Package Description | DIP, DIP24,.3 |
| Pin Count | 24 |
| Family | FCT |
| Length | 31.75 mm |
| Load Capacitance (CL) | 50 pF |
| Logic IC Type | BUS DRIVER |
| Max Frequency@Nom-Sup | 83300000 Hz |
| Max I(ol) | 0.048 A |
| Moisture Sensitivity Level | 1 |
| Number of Bits | 9 |
| Number of Functions | 1 |
| Number of Ports | 2 |
| Number of Terminals | 24 |
| Operating Temperature-Max |
70 °C |
| Operating Temperature-Min | |
| Output Characteristics | 3-STATE |
| Output Polarity | TRUE |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | DIP |
| Package Equivalence Code | DIP24,.3 |
| Package Shape | RECTANGULAR |
| Package Style | IN-LINE |
| Peak Reflow Temperature (Cel) | 245 |
| Prop. Delay@Nom-Sup | 7.5 ns |
| Propagation Delay (tpd) | 15 ns |
| Qualification Status | Not Qualified |
| Seated Height-Max | 4.699 mm |
| Supply Voltage-Max (Vsup) | 5.25 V |
| Supply Voltage-Min (Vsup) | 4.75 V |
| Supply Voltage-Nom (Vsup) | 5 V |
| Surface Mount | NO |
| Technology | CMOS |
| Temperature Grade | COMMERCIAL |
| Terminal Finish | TIN LEAD |
| Terminal Form | THROUGH-HOLE |
| Terminal Pitch | 2.54 mm |
| Terminal Position | DUAL |
| Trigger Type | POSITIVE EDGE |
| Width | 15.24 mm |

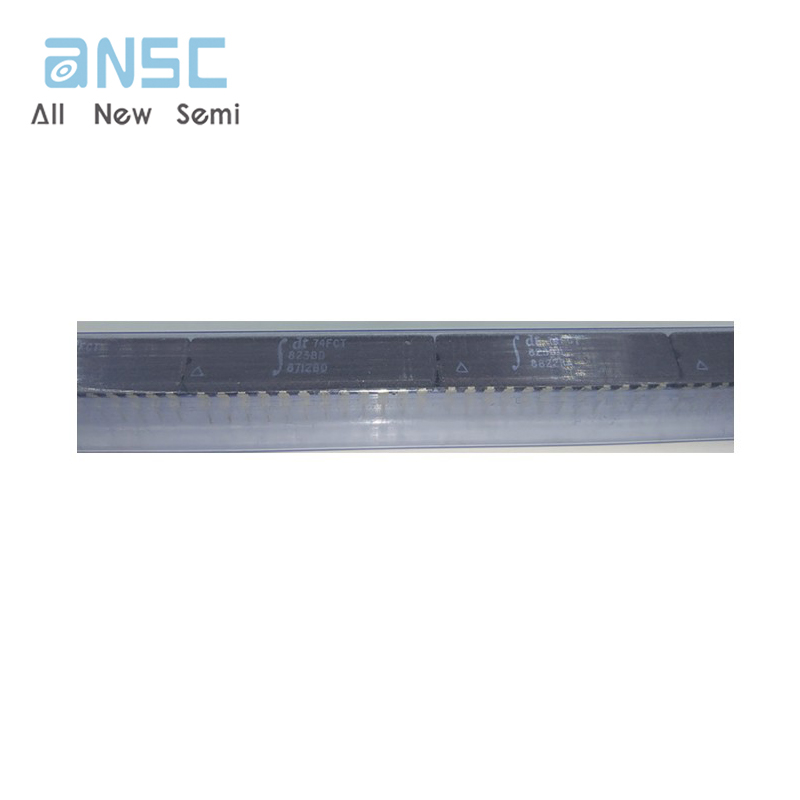

Product Photos

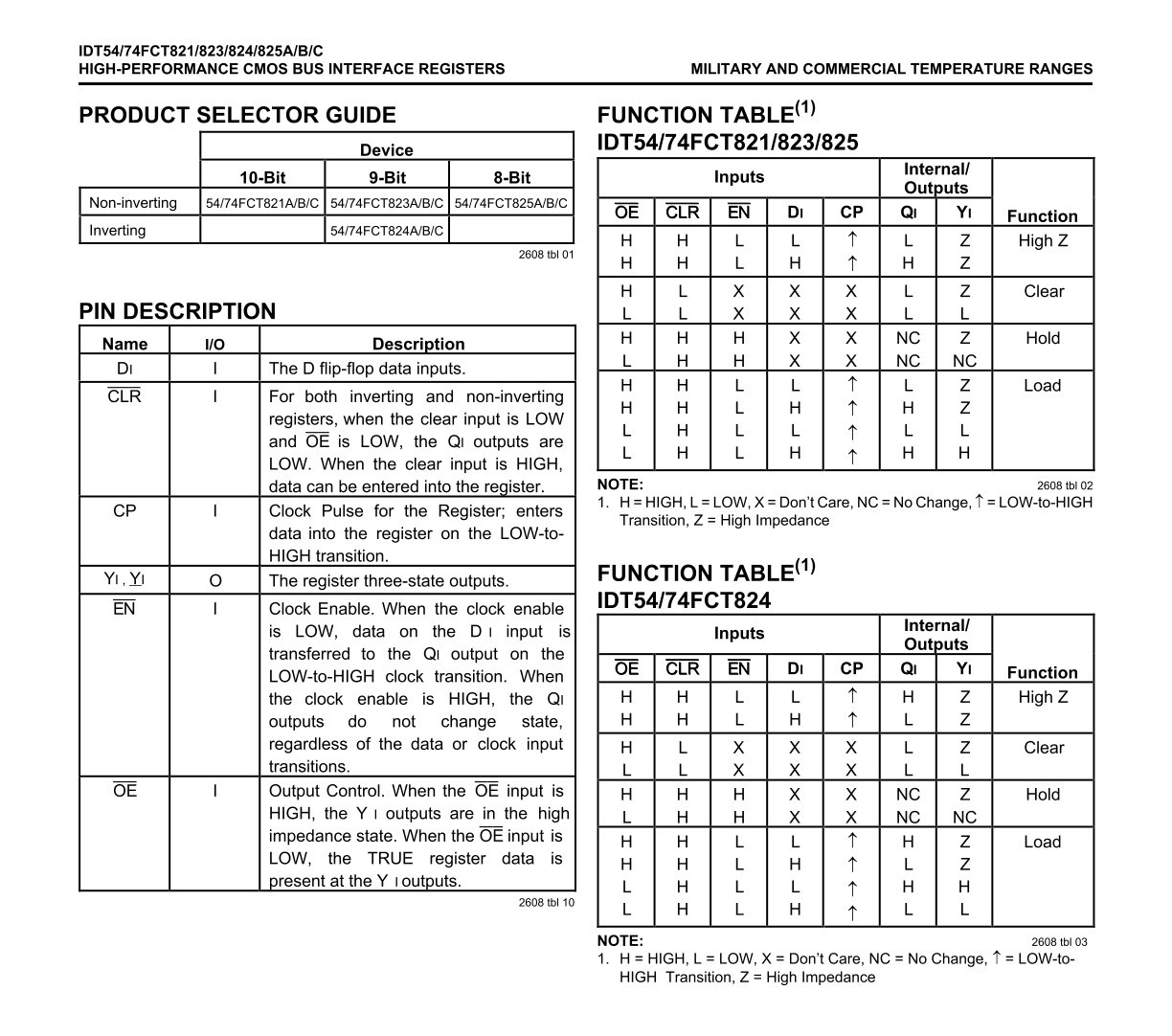

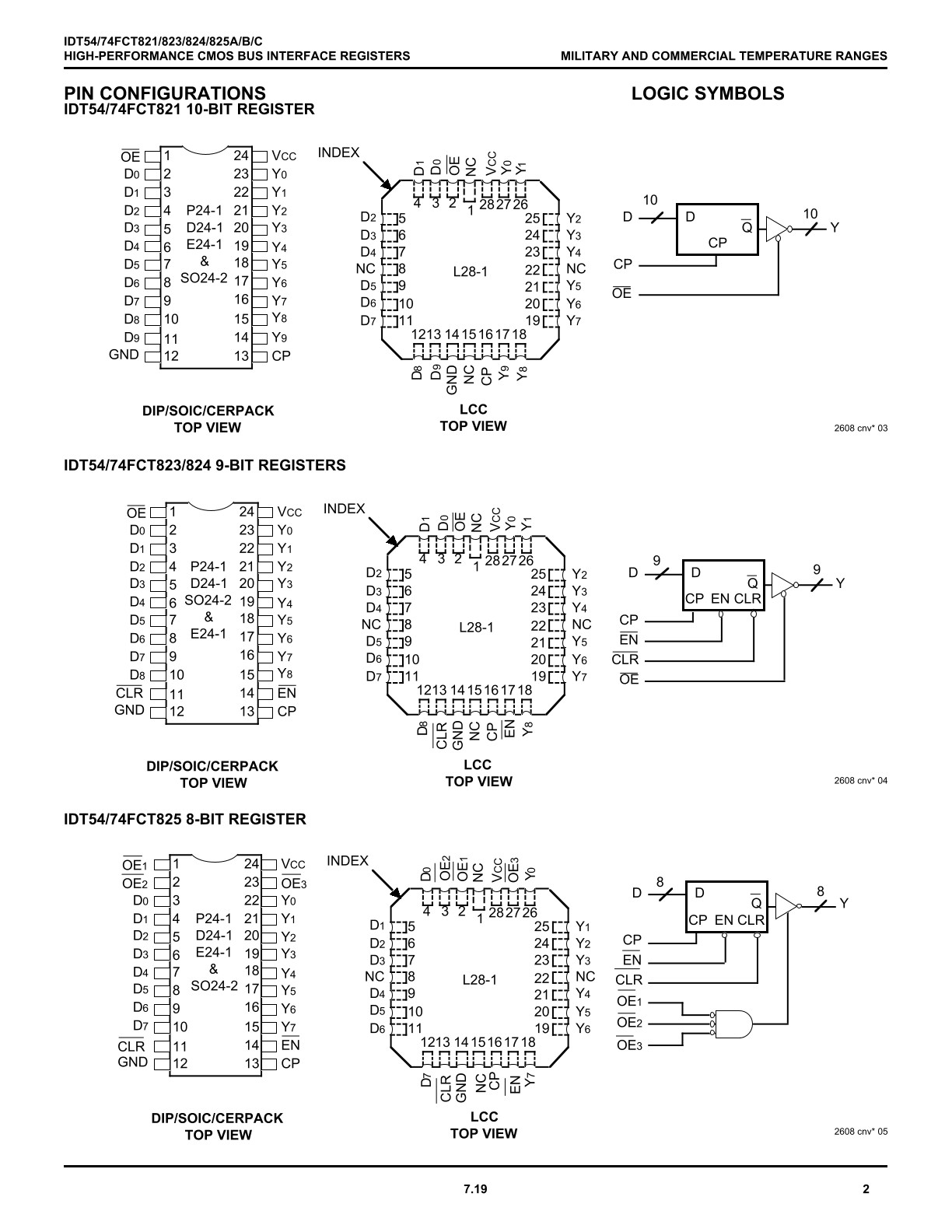

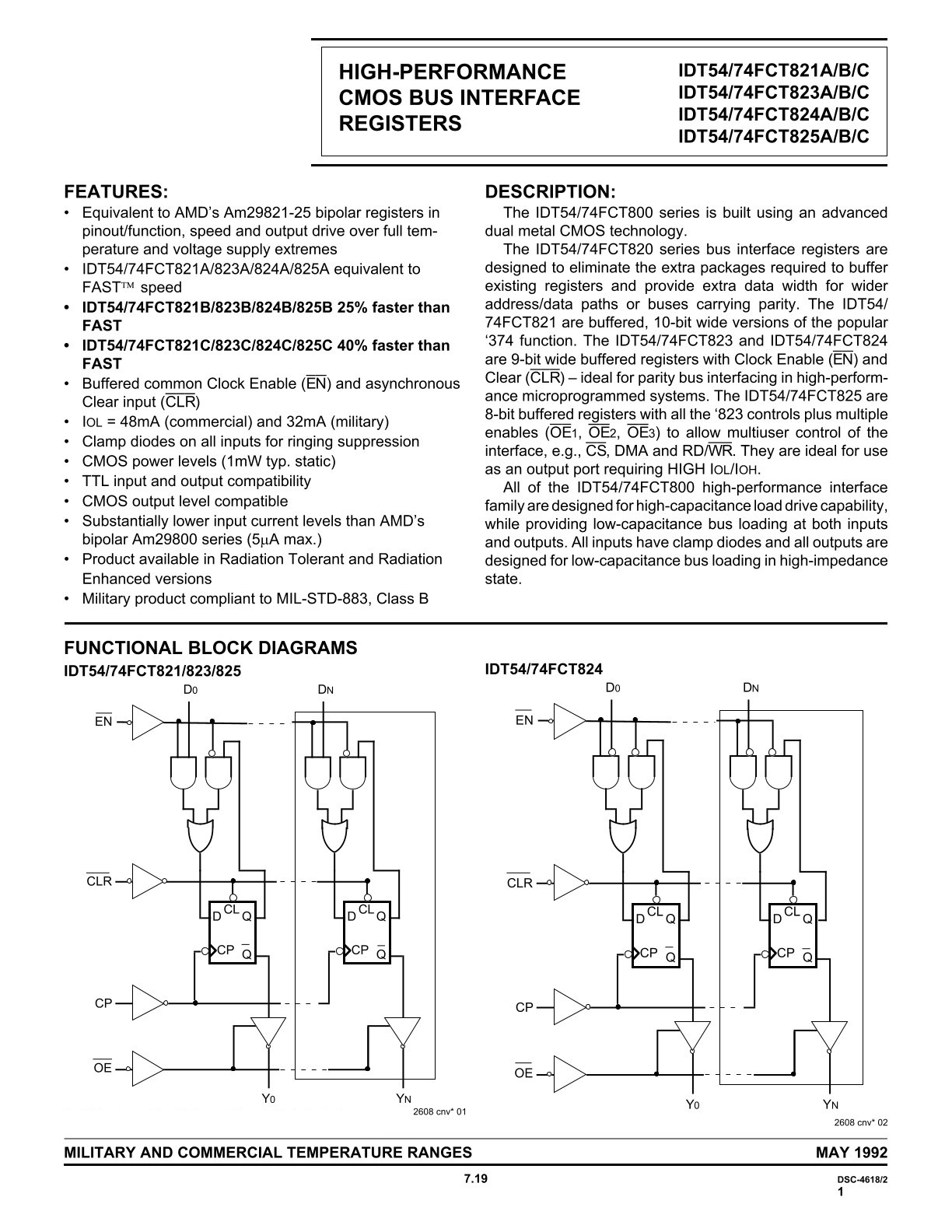

Product datasheet
