Product Descriptions

The ICM-42605 is a 6-axis MEMS MotionTracking device that combines a 3-axis gyroscope and a 3-axis accelerometer. It has a configurable host

interface that supports I3CSM, I2C and SPI serial communication, features a 2 kB FIFO and 2 programmable interrupts with ultra-low-power

wake-on-motion support to minimize system power consumption.

The ICM-42605 supports the lowest gyro and accel sensor noise in this IMU class, and has the highest stability against temperature, shock (up

to 20,000g) or SMT/bend induced offset as well as immunity against out-of-band vibration induced noise.

Other industry-leading features include InvenSense on-chip APEX Motion Processing engine for gesture recognition, activity classification, and

pedometer, along with programmable digital filters, and an embedded temperature sensor.

The device supports a VDD operating range of 1.71V to 3.6V, and a separate digital IO supply, VDDIO from 1.71V to 3.6V.

Product Features

? Gyroscope Noise: 3.8 mdps/?Hz & Accelerometer Noise: 70 μg/?Hz o Low-Noise mode 6-axis current consumption of 0.65 mA

? User selectable Gyro Full-scale range (dps): ± 15.2/31.2/62.5/125/250/500/1000/2000

? User selectable Accelerometer Full-scale range (g): ± 2/4/8/16

? User-programmable digital filters for gyro,accel, and temp sensor

? APEX Motion Functions:

o Pedometer, Tilt Detection, Tap Detection

o Wake on Motion, Raise to Wake/Sleep,Significant Motion Detection

? Host interface: 12.5 MHz I3CSM, 1 MHz I2C,24 MHz SPI

Product Applications

? Smartphones, Computers, Tablets

? Smart Watches and Fitness Trackers

? Augmented & Virtual Reality Headsets and Controllers

? Game Controllers

? IoT Applications

? Drones and Robotics

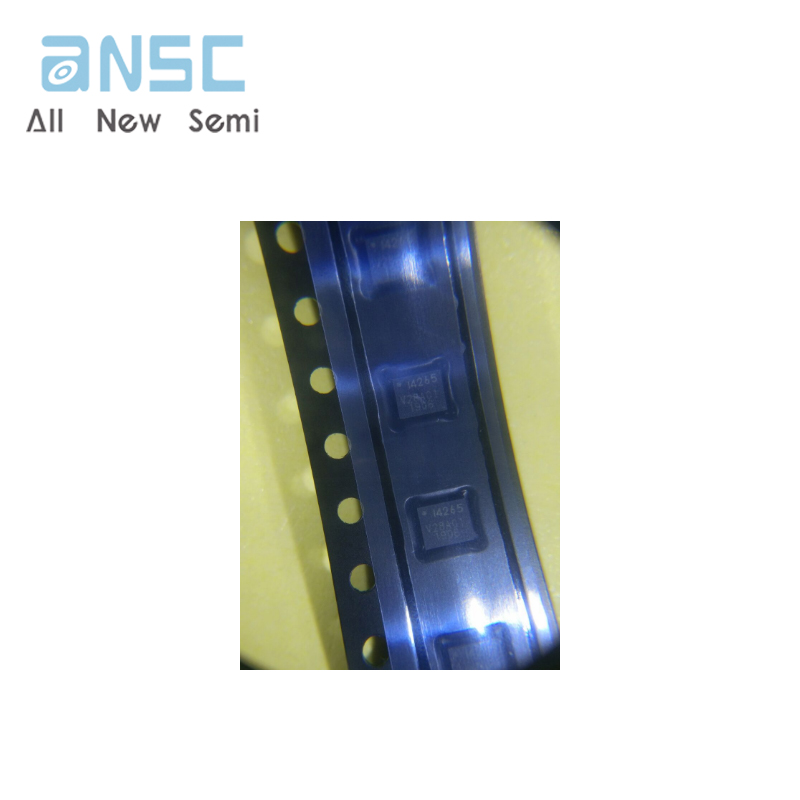

Product Images
