Product Descriptions

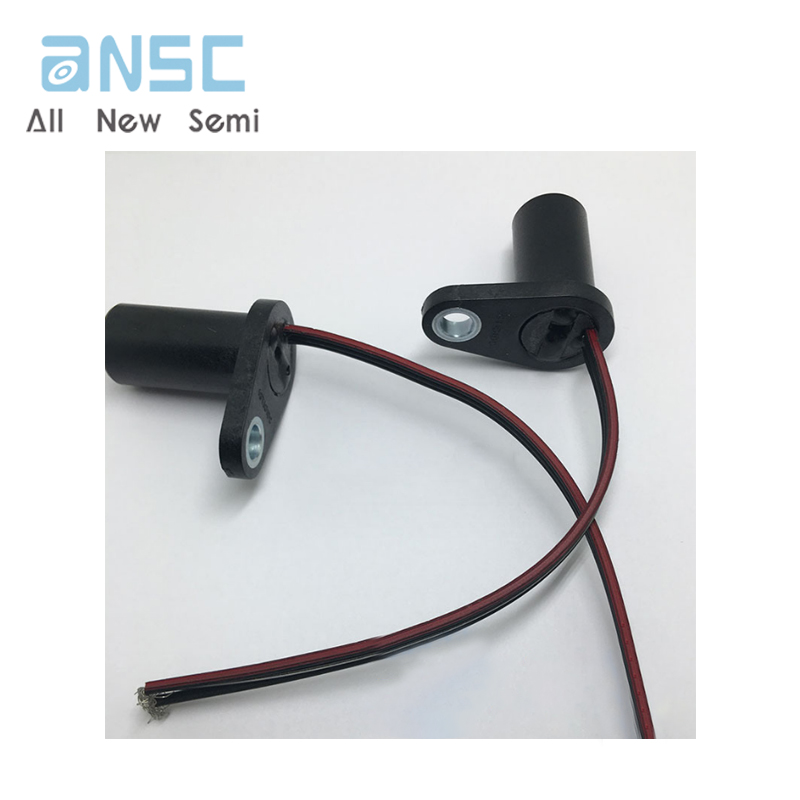

The 1GT Series Gear Tooth Sensors use a magnetically biased Hall-effect integrated circuit (IC) to accurately sense movement of ferrous metal

targets. This specially designed IC, with discrete capacitor and bias magnet, is sealed in a probe-type package for physical protection and cost-

effective installation.

Units will function from a 4.5 to 24 Vdc power supply. Output is digital, current sinking (open collector). Reverse polarity protection is standard.

If power is inadvertently wired backwards, the sensor will not be damaged. Built-in protection against pulsed transients to +60 V, -40 V is also

included.

Optimum sensor performance is dependent on the following four variables which must be considered in combination:

? Target material, geometry, and speed

? Sensor/target sensing air gap distance

? Ambient temperature

? Magnetic material in close proximity

Product Features

? Senses ferrous metal targets

? Digital current sinking output (open collector)

? Better signal-to-noise ratio than variable reluctance sensors (VRS), excellent low speed performance, output amplitude not dependent on RPM

? Sensor electronically self-adjusts to slight variations in runout and variations in temperature, simplifying installation and maintenance

? Operating frequency range of 50 Hz to 10 kHz

? EMI resistant

? Reverse polarity protection and transient protection (integrated into Hall-effect IC)

? Wide continuous operating temperature range of -40 °C to 150 °C [-40 °F to 302 °F ], short term to 160 °C [320 °F]

Product Applications

Transportation

? Camshaft and crankshaft speed/position

? Transmission speed

? Tachometers

? Anti-skid/traction control

Industrial

? Sprocket speed

? Chain link conveyor speed and distance

? Stop motion detector

? High speed, low-cost proximity

? Tachometers, counters
