Product Introduction

SHT3x-DIS is the next generation of Sensirion’s temperature and humidity sensors. It builds on a new CMOSens? sensor chip that is at the

heart of Sensirion’s new humidity and temperature platform. The SHT3x-DIS has increased intelligence, reliability and improved accuracy

specifications compared to its predecessor. Its functionality includes enhanced signal processing, two distinctive and user selectable I2C

addresses and communication speeds of up to 1 MHz. The DFN package has a footprint of 2.5 x 2.5 mm2 while keeping a height of 0.9 mm.

This allows for integration of the SHT3x-DIS into a great variety of applications. Additionally, the wide supply voltage range of 2.15 V to 5.5 V

guarantees compatibility with diverse assembly situations. All in all, the SHT3x-DIS incorporates 15 years of knowledge of Sensirion, the leader in

the humidity sensor industry.

Humidity and Temperature Sensor

? Fully calibrated, linearized, and temperature compensated digital output

? Wide supply voltage range, from 2.15 V to 5.5 V

? I2C Interface with communication speeds up to 1 MHz and two user selectable addresses

? Typical accuracy of ? 1.5 %RH and ? 0.1 °C for SHT35

? NIST traceability

? Very fast start-up and measurement time

? Tiny 8-Pin DFN package

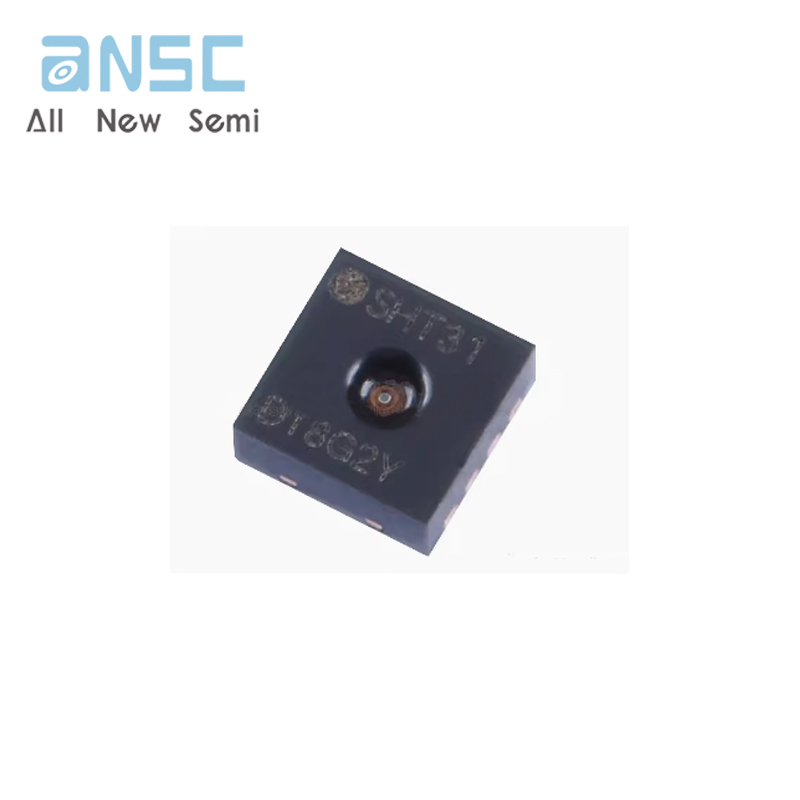

SHT31
