Product Descriptions

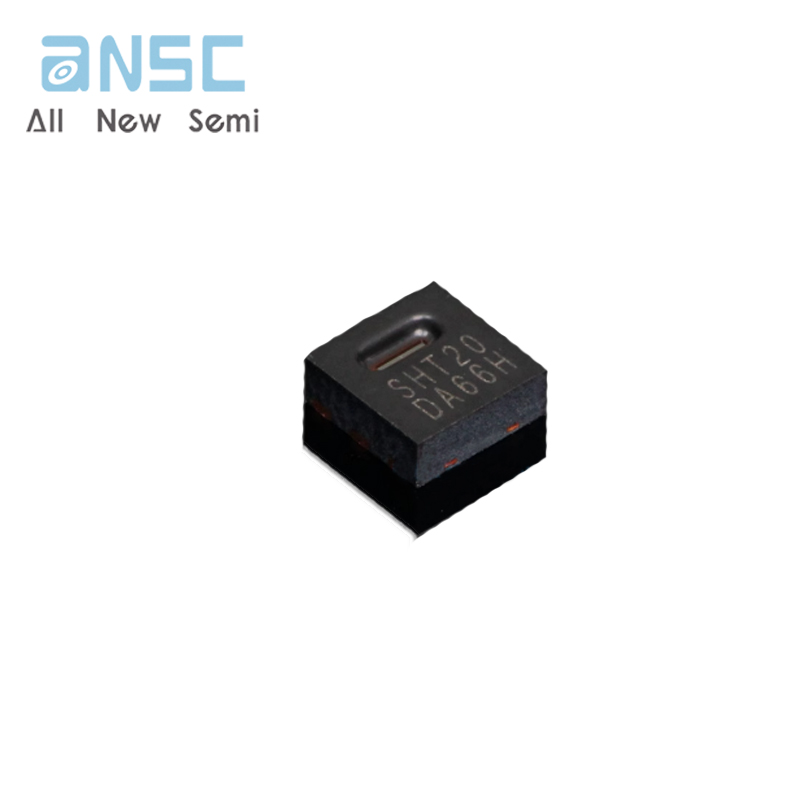

The SHT20 humidity and temperature sensor of Sensirion has become an industry standard in terms of form factor and intelligence: Embedded

in a reflow solderable Dual Flat No leads (DFN) package of 3 x 3mm footprint and 1.1mm height it provides calibrated, linearized sensor signals

in digital, I2C format.

The SHT2x sensors contain a capacitive type humidity sensor, a band gap temperature sensor and specialized analog and digital integrated

circuit – all on a single CMOSens? chip. This yields in an unmatched sensor performance in terms of accuracy and stability as well as minimal

power consumption.

Every sensor is individually calibrated and tested. Lot identification is printed on the sensor and an electronic identification code is stored on

the chip – which can be read out by command. Furthermore, the resolution of SHT2can be changed by command (8/12bit up to 12/14bit for

RH/T) and a checksum helps to improve communication reliability.

With this set of features and the proven reliability and long-term stability, the SHT2x sensors offer an outstanding performance-to-price ratio.

For testing SHT2x two evaluation kits EK-H4 and EK-H5 are available.

Humidity and Temperature Sensor IC

? Fully calibrated

? Digital output, I2C interface

? Low power consumption

? Excellent long-term stability

? DFN type package – reflow solderable

SHT20
