Product Descriptions

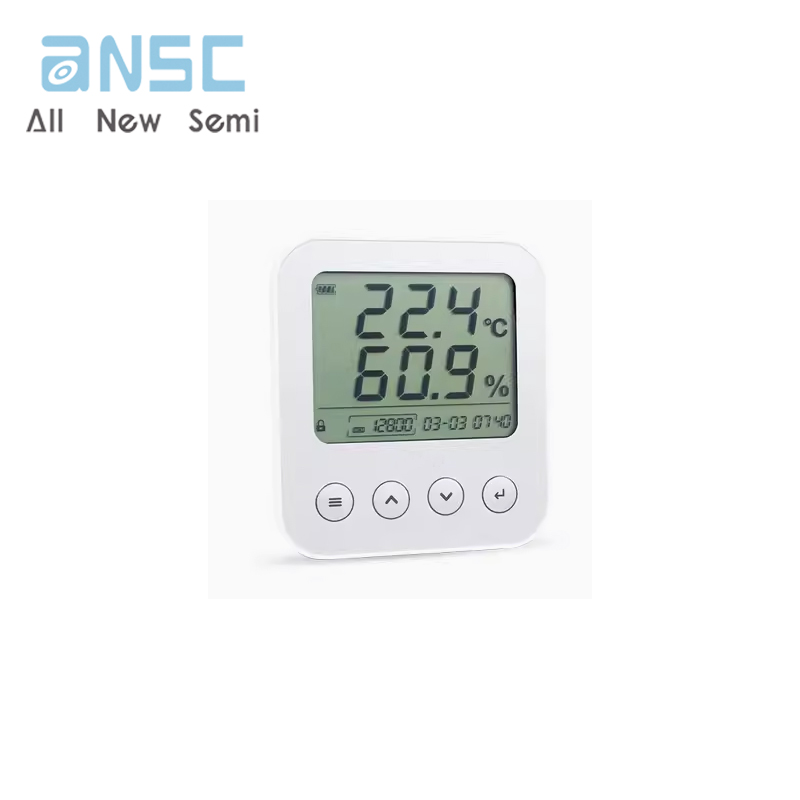

The AW3485M network type temperature and humidity transmitter is a high-performance industrial temperature and humidity transmitter with

battery recording function. It measures the temperature and humidity of the environment and displays it in digital form on the local display

screen. When the measured data exceeds the limit, a control signal is output and an audible alarm signal is generated. At the same time, in

response to the command sent by the host, the measured data is uploaded to the host in the form of a data packet through the RS485 bus, and

the data is recorded according to the set recording cycle. This temperature and humidity transmitter has the characteristics of small size, light

weight, wide range, high accuracy, fast response speed, and good long-term stability, making it widely used in various fields that require

measurement and control of temperature and humidity in the air, such as building automation, climate and HVAC signal acquisition, climate

stations in museums and hotels, warehousing and logistics, medical industry, and computer room temperature monitoring.

1. Power supply voltage: 9-36VDC or USB 5V or built-in lithium battery

2. Display resolution: 0.1 ℃ or 0.1% RH

3. Working temperature: -20~+60 ℃; Accuracy: ± 0.3 ℃

4. Working humidity: 0-99.9% RH; Accuracy: ± 2% RH

5. Sampling cycle: external power: 2s, built-in battery: 5s

6. Record points: 12800 (maximum)

7. Power consumption: External power:<20mA Lithium battery:<2mA

8. Sensitivity attenuation value: temperature<0.1 ℃; Humidity<0.1% RH

9. Battery working time: Fully charged, can continue to work for more than six months

10. Output signal: RS485 signal

11. Communication protocol: Standard MODBUS RTU protocol

Customized development can be carried out according to customer requirements. For details, please consult customer service personnel.

Output signal	RS485 signal (MODBUS RTU protocol)
Power supply	DC: 9-36V/USB: 5V
Measurement range (humidity)	0~99.9% RH
Measurement range (temperature)	-20~+60 ℃
Humidity accuracy	± 2% RH
Temperature accuracy	± 0.3 ℃
Resolution Temperature	0.1 ℃ Humidity: 0.1% RH
Attenuation value (temperature)	<0.1 ℃/year
Attenuation value (humidity)	<0.5% RH/year

AW3485M
