Product Descriptions

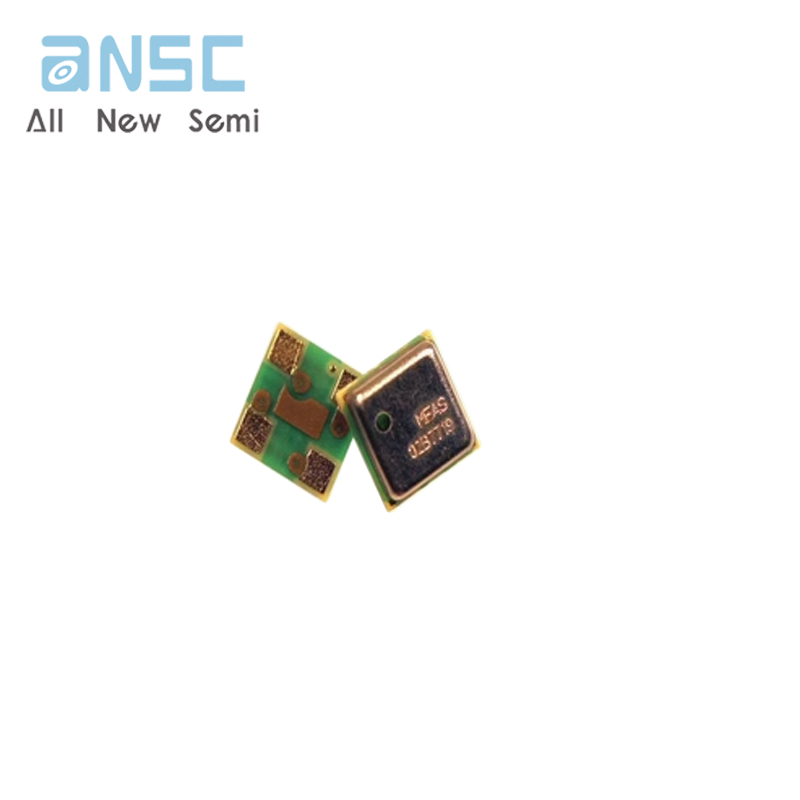

The MS5637 is an ultra-compact micro altimeter. It is optimized for altimeter and barometer applications in Smart-phones and Tablet PCs. The

altitude resolution at sea level is 13 cm of air. Thesensor module includes a high-linearity pressure sensor and an ultra-low power 24 bit ΔΣ ADC

with internal factory-calibrated coefficients. It provides a precise digital 24-bit pressure and

temperature value and different operation modes that allow the user to optimize for conversion speed and current consumption. A high-

resolution temperature output allows the implementation of an altimeter/thermometer function without any additional sensor.

The MS5637 can be interfaced to any microcontroller with I2C-bus interface. The communication protocol is simple, without the need of

programming internal registers in the device. Small dimensions of 3 x 3 x 0.9 mm3 allow the integration in mobile devices. This new sensor

module generation is based on leading MEMS technology and latest benefits from MEAS Switzerland proven experience and know-how in high

volume manufacturing of altimeter modules, which has been widely used for over a decade. The sensing principle employed leads to very low

hysteresis and high stability of both pressure and temperature signal.

Product Features

• QFN package 3 x 3 x 0.9 mm3

• High-resolution module, 13 cm

• Supply voltage: 1.5 to 3.6 V

• Fast conversion down to 0.5 ms

• Low power, 0.6 μA (standby ≤ 0.1 μA at 25°C)

• Integrated digital pressure sensor (24 bit ΔΣ ADC)

• Operating range: 300 to 1200 mbar, -40 to +85 °C

• I2C interface

• No external components (internal oscillator)

Product Applications

• Smart-phones

• Tablet PCs

• Personal navigation devices
