Product Descriptions

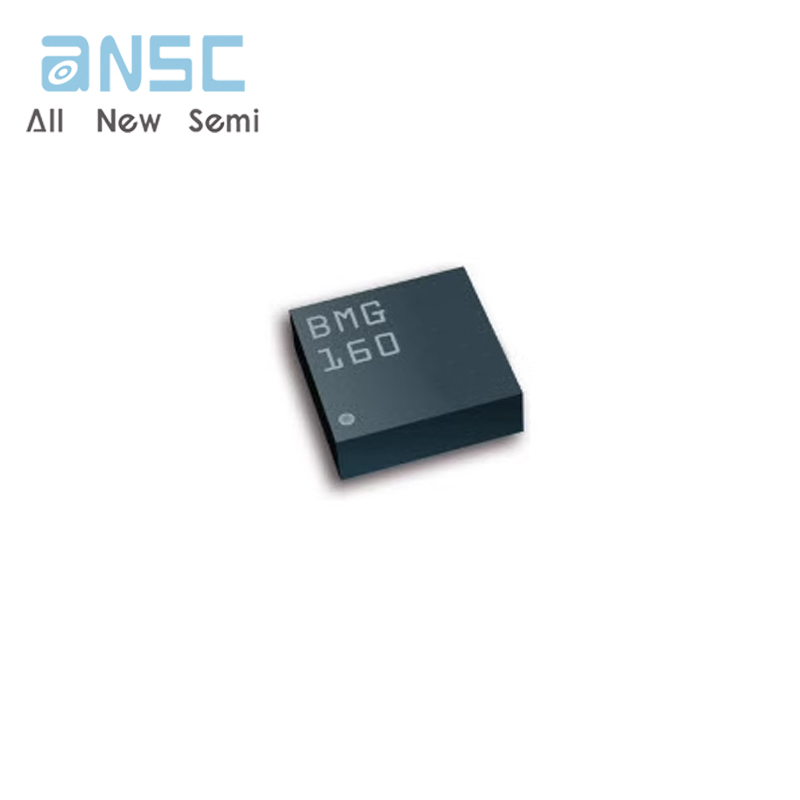

The BMG160 is a 3-axis angular rate sensor that is made of a surface micro machined sensing element and an evaluation ASlC.

Both parts are packed into one single LGA 3.0mm x 3.0mm x 0.95mm housing.

The BMG160 is designed to meet requirements for consumer applications such as image stabilization (DSC and camera-phone), gaming and pointing devices. lt is capable to measure angular rates in three perpendicular room dimensions, the x-, y- and z-axis, and to provide the corresponding output signals. The BMG160 is fitted with digital bi-directional SPl and I2c interfaces for optimum system integration.

The BMG160 offers a variable VDDIO voltage range from 1.2V to 3.6V and can be programmed to optimize functionality, performance and power consumption in customer specific applications. In addition it features an on-chip interrupt controller enabling motion-based applications without use of a microcontroller.

Product Features

• 3-axis integrated gyroscope

• 16 bit digital resolution

• Switchable full-scale ranges: in total 5 ranges

• VDD: 2.4 ... 3.6V/ VDDIO: 1.2 ... 3.6V

• Interrupt engine

• Low power consumption <5mA

• Short start-up time of 30ms

• Wake-up time in fast power-up mode only 10ms

• Operating temperature: -40°C ... +85°C

• I2C and SPl interface (4-wire and 3-wire, SPl mode 0 and mode 3)

• Low-pass filters

• Fast and slow offset controller (FOC and SOC)

• Small footprint 12 pin LGA package, 3mm x 3mm x 0.95mm

• MSLlevel 1

• RoHS compliant, halogen-free, Pb-free

• Temperture Sensor

Product Applications

• Cell-phones

• Human machine interface devices

• Gaming

• Image stabilization

• Gesture recognition

• Indoor navigation

Product Specifications
