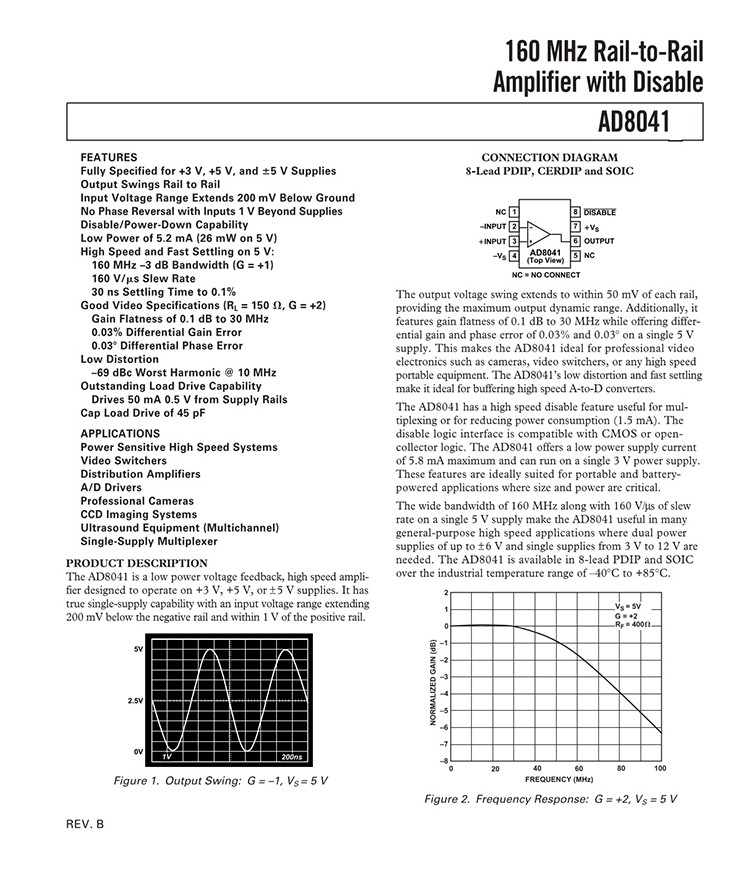

PRODUCT DESCRIPTION The AD8041 is a low power voltage feedback, high speed amplifier designed to operate on +3 V, +5 V, or ±5 V supplies. It has true single-supply capability with an input voltage range extending 200 mV below the negative rail and within 1 V of the positive rail. The output voltage swing extends to within 50 mV of each rail, providing the maximum output dynamic range. Additionally, it features gain flatness of 0.1 dB to 30 MHz while offering differential gain and phase error of 0.03% and 0.03° on a single 5 V supply. This makes the AD8041 ideal for professional video electronics such as cameras, video switchers, or any high speed portable equipment. The AD8041’s low distortion and fast settling make it ideal for buffering high speed A-to-D converters. FEATURES Fully Specified for +3 V, +5 V, and ±5 V Supplies Output Swings Rail to Rail Input Voltage Range Extends 200 mV Below Ground No Phase Reversal with Inputs 1 V Beyond Supplies Disable/Power-Down Capability Low Power of 5.2 mA (26 mW on 5 V) High Speed and Fast Settling on 5 V: 160 MHz –3 dB Bandwidth (G = +1) 160 V/μs Slew Rate 30 ns Settling Time to 0.1% Good Video Specifications (RL = 150 Ω, G = +2) Gain Flatness of 0.1 dB to 30 MHz 0.03% Differential Gain Error 0.03° Differential Phase Error Low Distortion –69 dBc Worst Harmonic @ 10 MHz Outstanding Load Drive Capability Drives 50 mA 0.5 V from Supply Rails Cap Load Drive of 45 pF APPLICATIONS Power Sensitive High Speed Systems Video Switchers Distribution Amplifiers A/D Drivers Professional Cameras CCD Imaging Systems Ultrasound Equipment (Multichannel) Single-Supply Multiplexer |
Product Description

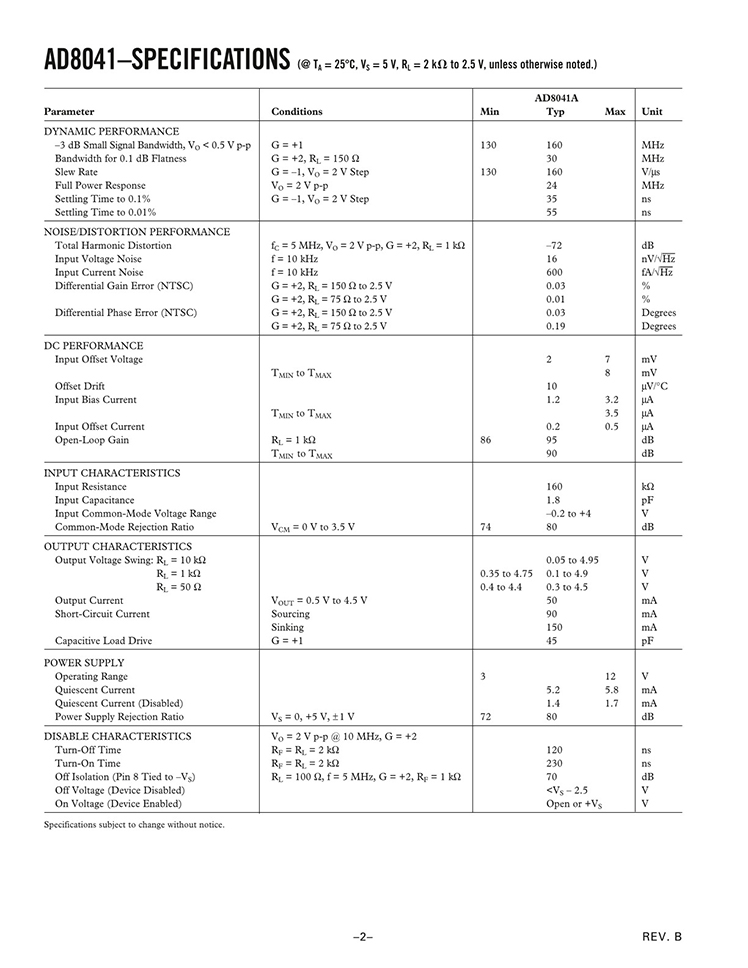

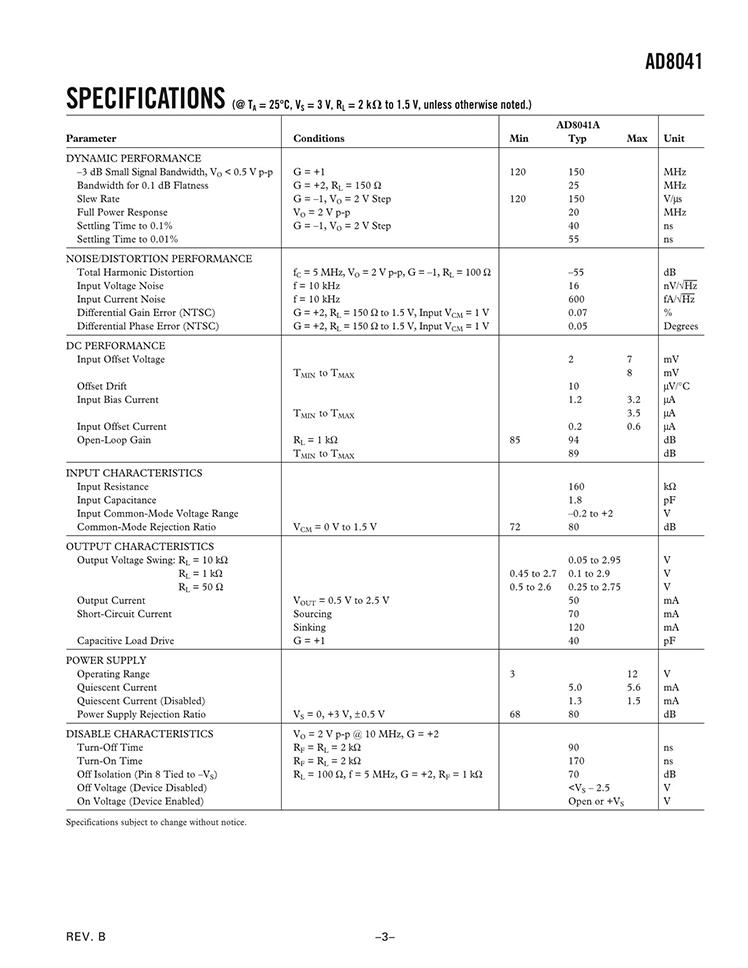

| Type | Description |
| ANSC PART# | ANSC -AD8041AR |
| Category | Integrated Circuits (ICs) |
| Linear | |
| Amplifiers | |
| Instrumentation, Op Amps, Buffer Amps | |
| Mfr | Original |
| Series | - |
| Packaging | Tube |
| Part Status | Obsolete |
| Amplifier Type | Voltage Feedback |
| Number of Circuits | 1 |
| Output Type | Rail-to-Rail |
| Slew Rate | 170V/μs |
| -3db Bandwidth | 170 MHz |
| Current - Input Bias |
1.2 μA |
| Voltage - Input Offset | 2 mV |
| Current - Supply | 5.8mA |
| Current - Output / Channel | 50 mA |
| Voltage - Supply Span (Min) | 3 V |
| Voltage - Supply Span (Max) | 12 V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Base Product Number | AD8041 |
