Product Details
|
General description The HEF40106B provides six inverting buffers. Each input has a Schmitt trigger circuit. The inverting buffer switches at different points for positive-going and negative-going signals. The difference between the positive voltage (VT+) and the negative voltage (VT-) is defined as hysteresis voltage (VH). The HEF40106B may be used for enhanced noise immunity or to “square up” slowly changing waveforms. It operates over a recommended VDD power supply range of 3 V to 15 V referenced to VSS (usually ground). Unused inputs must be connected to VDD, VSS, or another input. It is also suitable for use over both the industrial (-40℃ to +85℃) and automotive ( -40℃ to +125 ℃) temperature ranges. Features and benefits ■ Schmitt trigger input discrimination ■ Fully static operation ■ 5 V, 10 V, and 15 V parametric ratings ■ Standardized symmetrical output characteristics ■ Operates across the automotive temperature range from -40 °C to +125 °C ■ Complies with JEDEC standard JESD 13-B Applications ■ Wave and pulse shapers ■ Astable multivibrators ■ Monostable multivibrators |
Product Description
| Type# | Description |
| ANSC PART# | ANSC-HEF40106BT |
| Part# | HEF40106BT |
| Type： | Integrated Circuits |
| Manufactor | Original |
| DC | new |
| Part Status | Active |
| Product packaging | SOP14 |

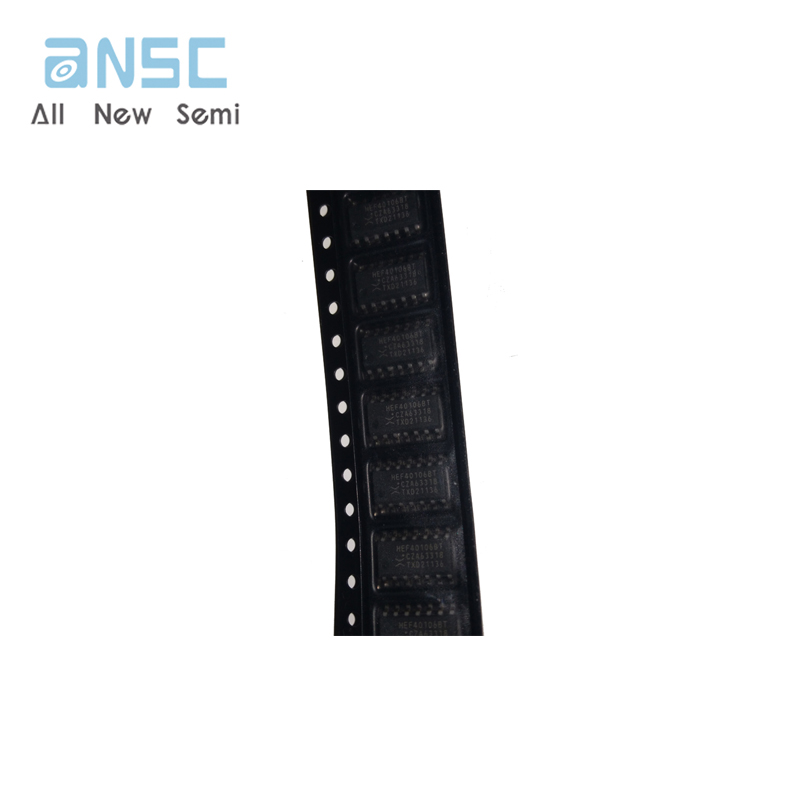

Product Photos

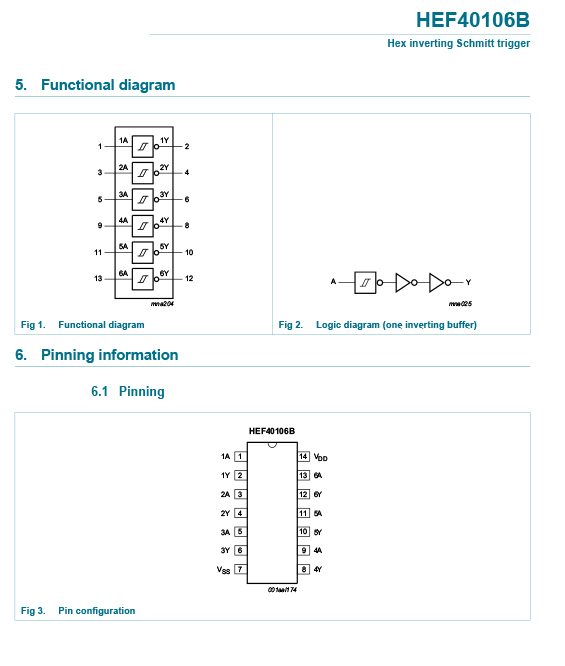

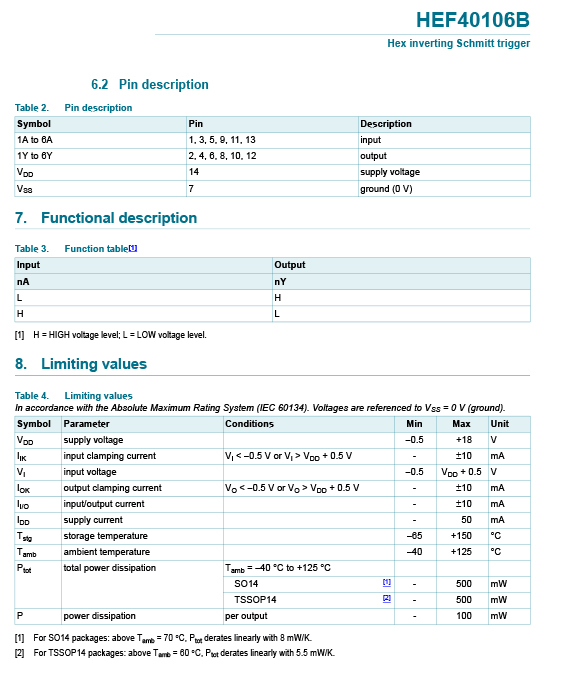

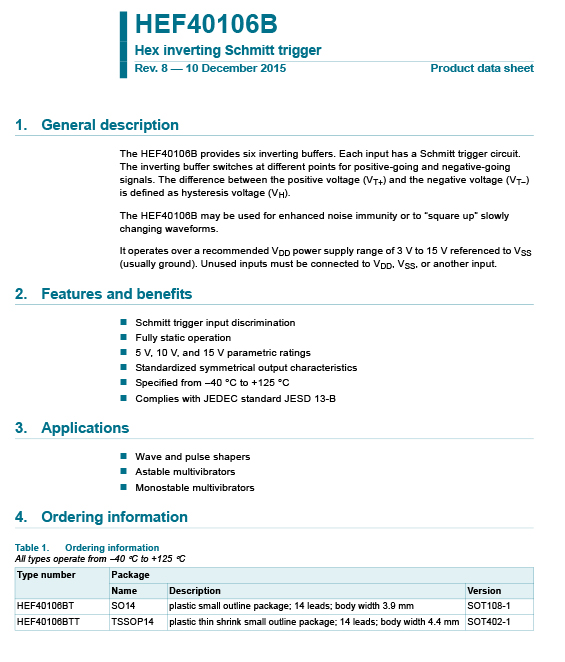

Product datasheet
For more information, please download
