Specifications

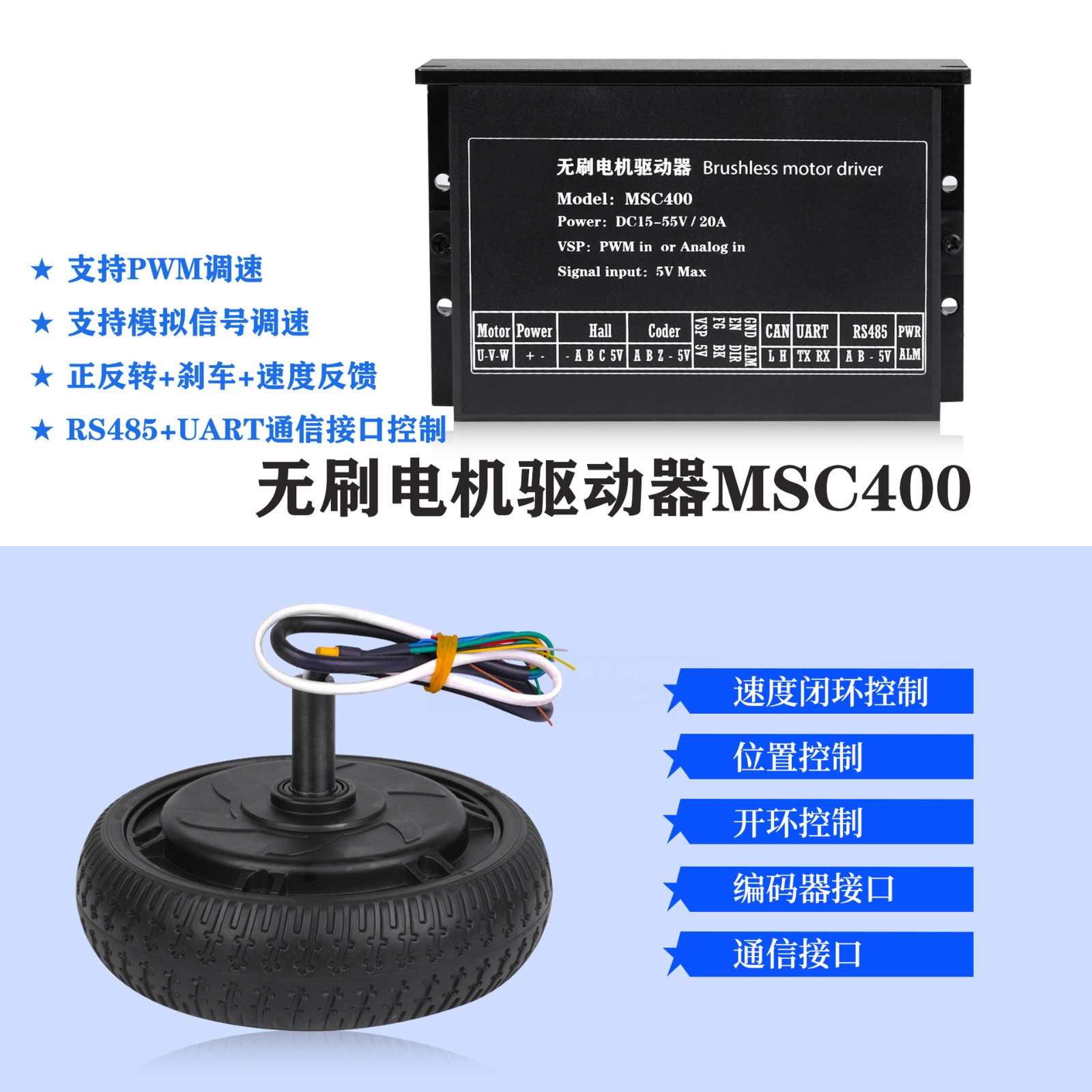

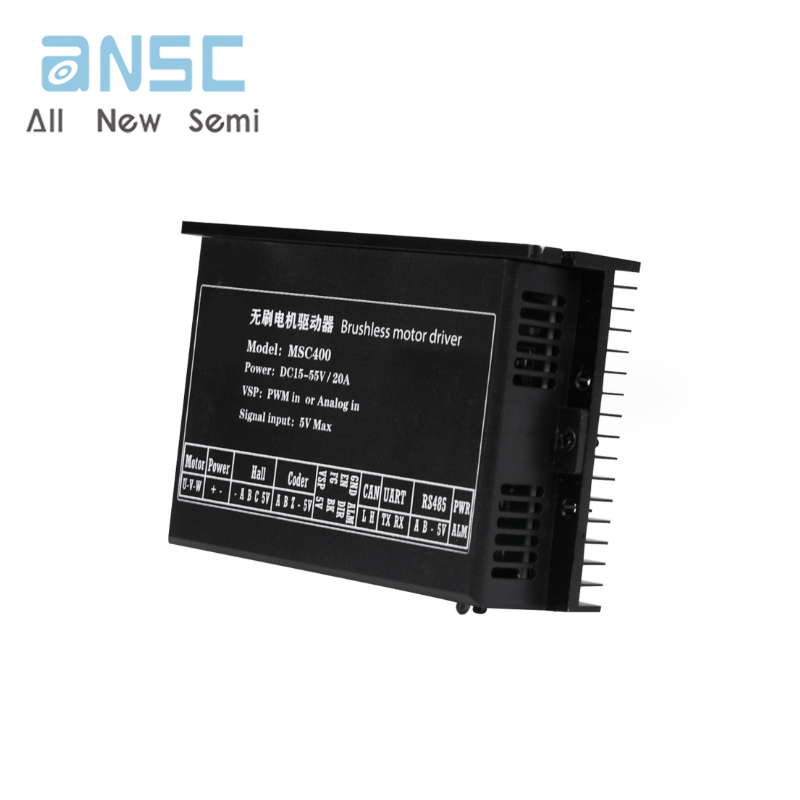

| Parameter table for MSC400 brushless motor driver | |
| Working voltage range | DC15-55V |
| Maximum working current | 20A |
| Maximum power | 480W@24V，720W@36V，1100W@55V |

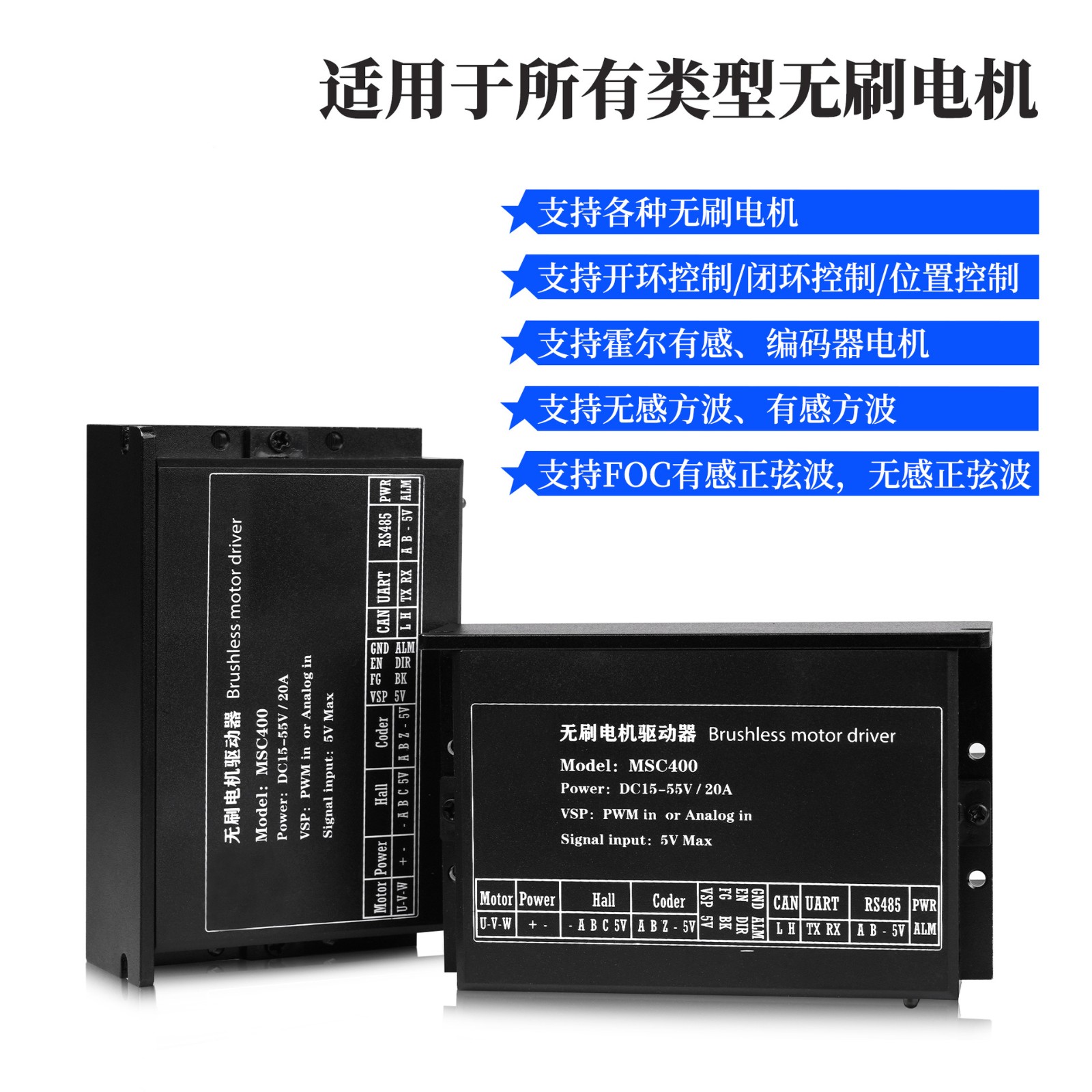

| Applicable motor types | Suitable for all types of brushless motors |
| ★ Supports Hall sensing and encoder sensing motors | |
| ★ Support insensitive sine wave and insensitive square wave | |
| ★ Supports F0C induced sine wave and insensitive sine wave | |
| Control mode | Sine wave FOC vector control technology, square wave control technology |
| ★ Speed open-loop control | |
| ★ Speed closed-loop control | |
| ★ Position control | |
| ★ Forward and reverse control, braking | |
| Communication interface | ★ PWM duty cycle speed regulation+analog speed regulation+forward and reverse switching+braking+speed feedback |
| ★ UART+RS485 (2-wire system) communication control interface+CAN communication (optional) | |
| ★ Hall+encoder interface | |
| ★ Alarm output interface+indicator light | |
| Protection function | Under voltage protection/Over voltage protection/Over current protection |
| Product size | 118mm in length, 76mm in width, and 34mm in height |
