Product Descriptions

E810 (4RSlE) is a four serial port server of RS422 & RS485 & RS232 to Ethernet, which realizes transparent data transmission between RJ45

network port and RS422, RS485, RS232. The device is equipped with M3 series 32-bit processor which runs fast and has high efficiency, with

adaptive network rate. TCp Server, Tcp Client, UDp Server, UDp Client four communication mechanisms. E810 (4RSlE) is easy to operate, and

users can configure the parameters of the device through the web page to easily achieve data transmission.

Attribute	Attribute value
ANSM-Part#	ANSM-E810-DTU(4RS1E)
Supply voltage	8 ~ 28V DC, note: higher than 28V will cause permanent damage to the device, 12V or 24V power supply is recommended
Working current	180.7mA@12V(RS232) ，176.8mA@12V(RS485) ，173.8mA@12V(RS422)
Operating mode	Asynchronous half-duplex or asynchronous full-duplex
Interface mode	RS232:Network port type connector,The line sequence is introduced as follows
	RS485/RS422:153.81,Crimping method
	RJ45:Network port
Transmission medium	Network cable / twisted pair or shielded wire
Serial port standard	RS232:1200~115200bps
Serial port standard	RS485/RS422:1200~460800 bps
Network port specification	RJ45，10/100Mbps
Network protocol	IP、 TCP/UDP、 ARP、 ICMP、 IPV4
IP access method	Static IP、 DHCP
DNS	Support
User configuration	Web page configuration
Simple transparent transmission method	TCP Server 、TCP Client 、 UDP Server 、 UDP Client
TCP Server connection	Supports up to 4 TCP connections
Operating temperature	-40 ~ +85℃，Industrial grade
Operating humidity	10% ~ 90%，Relative humidity, non-condensing
Storage temperature	-40 ~ +125℃，Industrial grade
Average weight	416g±5g
Size	15010729mm

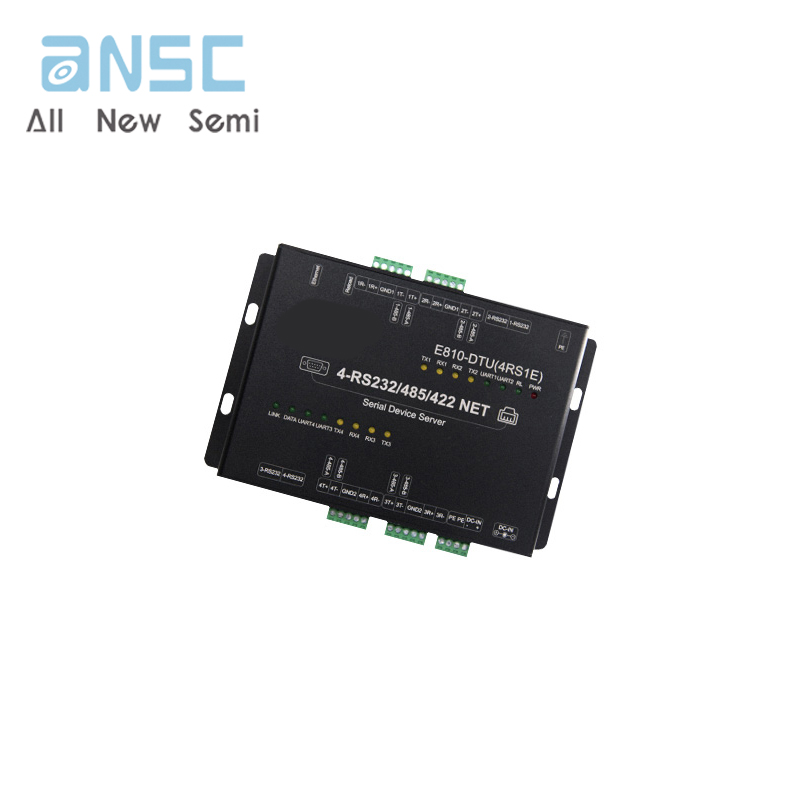

E810-DTU(4RS1E)
