Specifications
| Attribute | Attribute value |
| ANSM-Part# | ANSM-E810-DTU(RS485)-V2.0 |
| Size | 66 * 66 *21.6mm |
| Weight | 79±1g |
| PCB process | 2 layer，SMT, lead-free |
| Connector | RS485/RS232：1*5*3.81mm |
| Supply voltage | 8~28V DC，Note：Higher than 28V will cause permanent damage |
| UART standard | 300~256000 bps |
| Serial communication level | 3.3V，If connected to 5V, level conversion is required |
| Ethernet specification | RJ45，10/100Mbps |
| Network protocol | IP、 TCP/UDP、 ARP、 ICMP、 IPV4 |
| IP Acquisition | Static IP、 DHCP |
| DNS | Available |
| User configuration | PC software ,AT command configuration、Web page configuration |
| Simple transparent transmission | TCP Server 、TCP Client 、 UDP Server 、 UDP Client |
| TCP Server connection | Max. 6 channel of TCP connections |
| Software | RF Setting |
| Package mode | 200 bytes per package |
| Operating current | 77.0314mA@12V(RS485) ，74.5635mA@12V(RS232) |
| Operating temperature | -40 ~ +85℃ |
| Operating humidity | 10% ~ 90%，relative humidity, no condensation |
| Storage temperature | -40 ~ +125℃ |

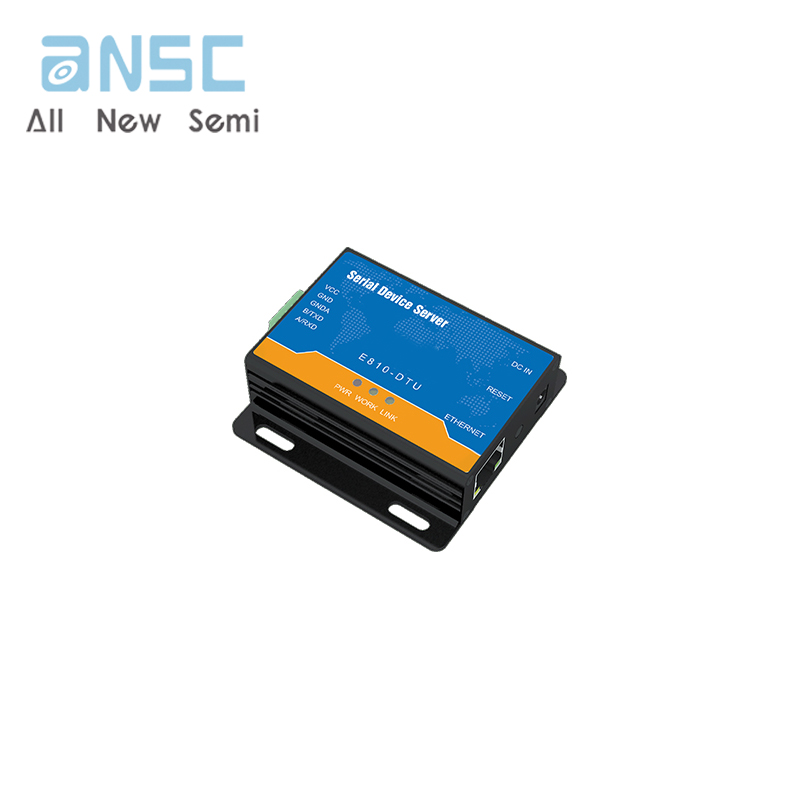

Actual product photos
