Product Descriptions

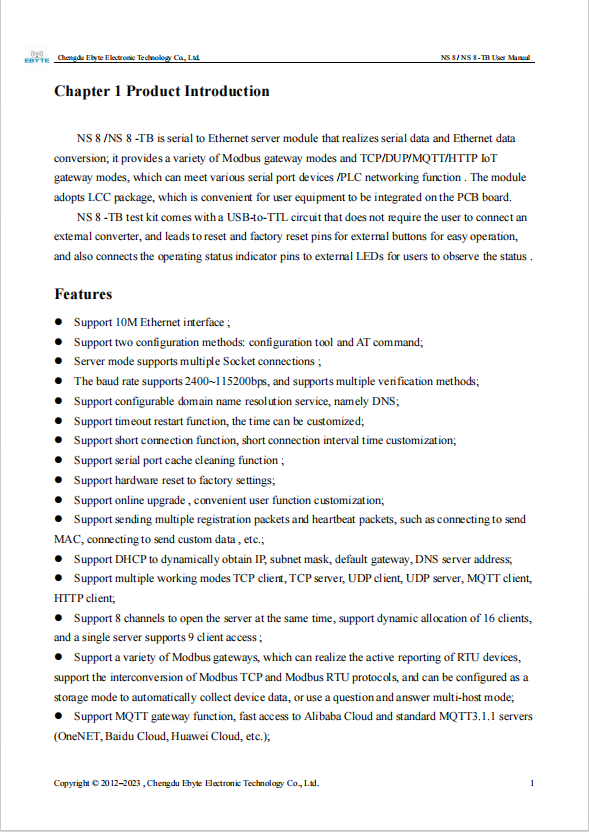

NS 8 /NS 8 -TB is serial to Ethernet server module that realizes serial data and Ethernet data conversion; it provides a variety of Modbus gateway modes and TCP/DUP/MQTT/HTTP IoT gateway modes, which can meet various serial port devices /PLC

networking function . The module adopts LCC package, which is convenient for user equipment to be integrated on the PCB board.

NS 8 -TB test kit comes with a USB-to-TTL circuit that does not require the user to connect an external converter, and leads to reset and factory reset pins for external buttons for easy operation, and also connects the operating status indicator pins to external LEDs for users to observe the status .

Product Features

? Support 10M Ethernet interface ;

? Support two configuration methods: configuration tool and AT command;

? Server mode supports multiple Socket connections ;

? The baud rate supports 2400~115200bps, and supports multiple verification methods;

? Support configurable domain name resolution service, namely DNS;

? Support timeout restart function, the time can be customized;

? Support short connection function, short connection interval time customization;

? Support serial port cache cleaning function ;

? Support hardware reset to factory settings;

? Support online upgrade , convenient user function customization;

? Support sending multiple registration packets and heartbeat packets, such as connecting to send MAC, connecting to send custom data , etc.;

? Support DHCP to dynamically obtain IP, subnet mask, default gateway, DNS server address;

? Support multiple working modes TCP client, TCP server, UDP client, UDP server, MQTT client, HTTP client;

? Support 8 channels to open the server at the same time, support dynamic allocation of 16 clients, and a single server supports 9 client access ;

? Support a variety of Modbus gateways, which can realize the active reporting of RTU devices, support the interconversion of Modbus TCP and Modbus RTU protocols, and can be configured as a storage mode to automatically collect device data, or use a question and answer multi-host mode;

? Support MQTT gateway function, fast access to Alibaba Cloud and standard MQTT3.1.1 servers (OneNET, Baidu Cloud, Huawei Cloud, etc.);

? Support Modbus data to actively report to TCP transparent transmission server, MQTT server, etc.;

? Support HTTP client mode, using HTTP/1.1 protocol, can be configured as GET, POST two request methods ;

? Support TCP/IP direct communication or connect communication through "virtual serial port" .

Specifications

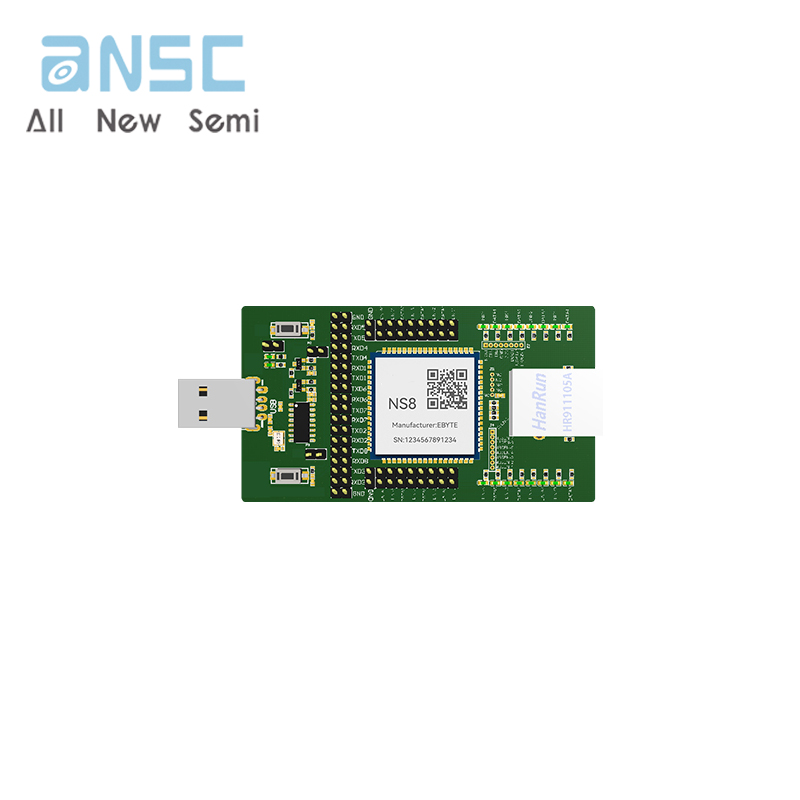

Actual product photos

Product Data Manual：

For more product information, please download the PDF
