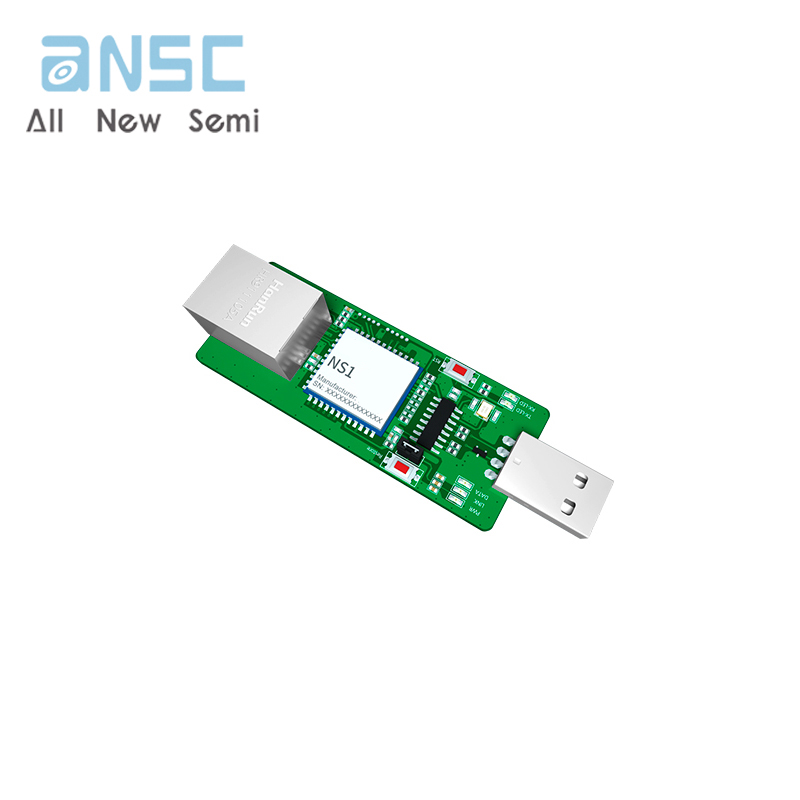

Product Descriptions

NS1 is a serial port server module that realizes serial port data ?Ethernet data conversion; It has multiple Modbus gateway modes and MQTTC/HTTPC Internet of Things gateway modes, which can meet the networking functions of various serial port

devices/PLCs. The NS1-TB test kit is equipped with a USB to TTL circuit, which does not require the user to connect the external converter, and the reset and restart pins are connected with external keys for easy operation. At the same time, the

operation status indicator pins are connected with external LEDs for the user to observe the status.

Product Features

? RJ45 supports 10M Ethernet interface;

? Support multiple working modes (TCP Server, TCP Client, UDP Server, UDP Client, HTTPC, MQTTC);

? Support configuration tools, web pages and AT commands;

? The server mode supports multiple socket connections;

? Support multiple baud rates;

? Support DHCP function;

? Support DNS (domain name resolution) and customizable domain name resolution server;

? Support multiple Modbus gateways (simple protocol conversion, multi-host mode, storage gateway, configurable gateway);

? Support fast access to Alibaba Cloud, Baidu Cloud, OneNET, Huawei Cloud, and version 3.1 standard MQTT servers;

? Support HTTP protocol (GET/POST request);

? Support virtual serial port;

? Support timeout restart function and customize the restart time;

? Support the short connection function and customize the short connection interval;

? Support heartbeat package and registration package functions;

? Support serial port cache cleaning function;

? Support access to the Internet and LAN;

? Support hardware restoration to factory settings;

? Support online upgrade function.

Specifications

Actual product photos

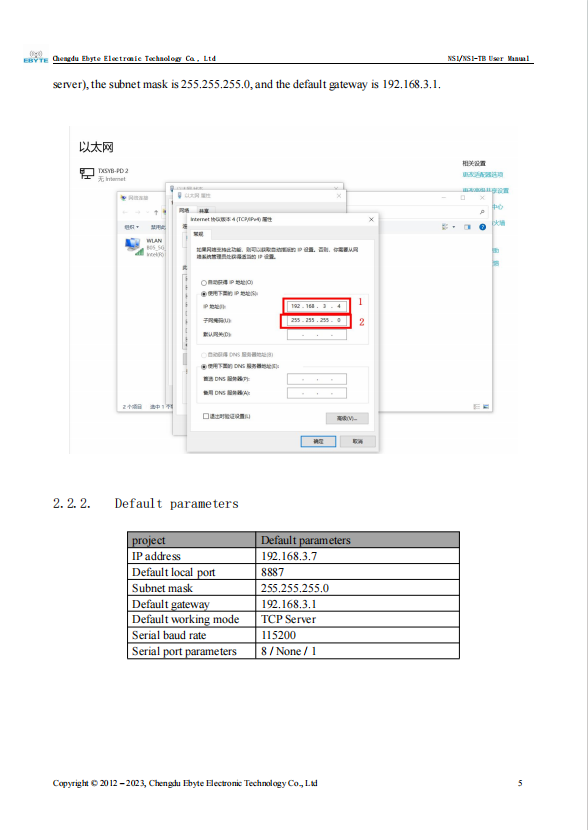

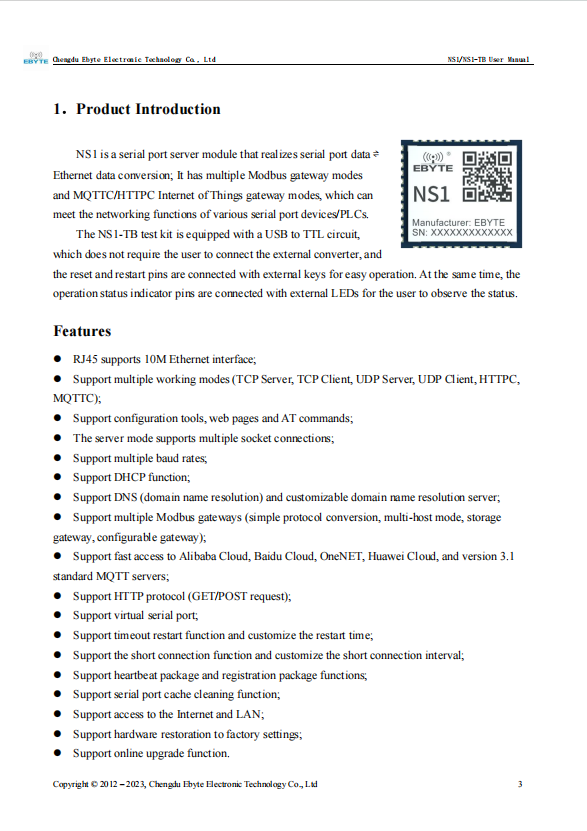

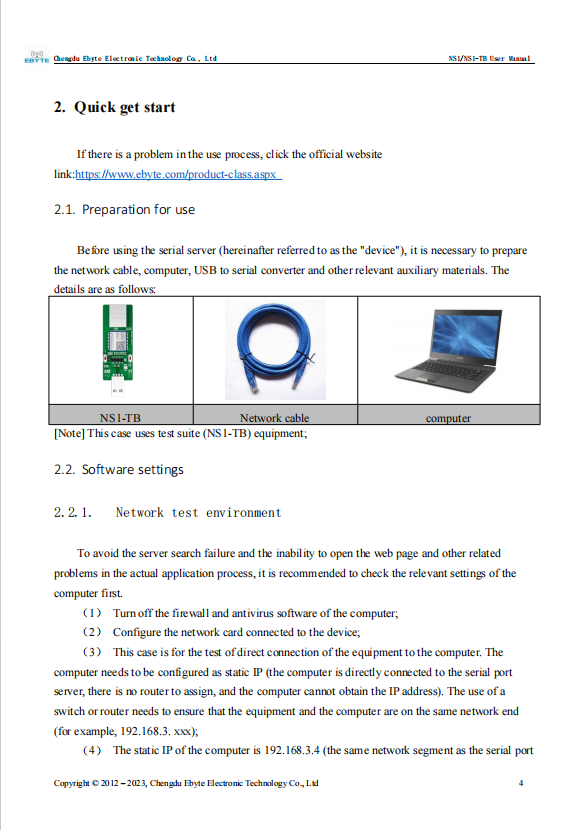

Product Data Manual：

For more product information, please download the PDF
