Product Descriptions

E95M-DTU (400 SLxx-xxx) is a wireless digital radio station using military grade LoRa modulation technology, with multiple transmission modes, working in (410.125MHz~493.125MHz) band (default 433.125MHz), the station provides transparent RS485

/ RS232 / TTL interface, plastic case, rail installation structure, support 8~28V (DC) wide voltage, voltage input. LoRa spread frequency technology will bring further communication distance, and have the advantage of strong anti-interference ability.

Wireless digital radio as a kind of communication media, and optical fiber, microwave, open line, have certain scope of application: it provides some special conditions of private network monitoring signal of real-time and reliable data transmission, with

low cost, convenient installation and maintenance, shooting ability, flexible network structure, far coverage characteristics, suitable for point and scattered, complex geographical environment, and PLC, RTU, rainfall gauge, liquid level meter data terminal.

Product Features

★ Using the latest LoRa technology, than the traditional LoRa digital radio distance is farther, more powerful performance;

★ Support serial port upgrade firmware, update firmware is more convenient;

★ Support AT instruction, it is more convenient to use;

★ Ultra-small volume, size of 80 * 28 * 27mm, easy and quick installation;

★ E95M-DTU (400SL22-xxx) is up to 5 Km under ideal conditions;

★ E95M-DTU (400SL30-xxx) is up to 10 Km under ideal conditions;

★ With data encryption, the subcontract length can be set;

★ Using flame retardant plastic shell, guide rail type installation structure, convenient and efficient installation;

★ Using hidden button to switch the working mode, to avoid false triggering, the equipment operation is more reliable;

★ Simple and efficient power supply design, support the power supply distribution device or voltage line mode, support 8~28V (DC) power supply;

★ The transmitting power is 22 / 30 dBm, and supports multi-stage adjustable, all technical indicators meet the industrial standards;

★ Support for 2.4K~62.5Kbps of data transmission rate;

★ Support for Modbus protocol transmission;

★ Support RSSI signal strength indication function for assessing signal quality, improving communication network and ranging;

★ Support LBT function, the station automatically sends according to the current ambient noise intensity. Greatly improve the communication success rate of radio stations in the harsh environment;

★ Support for wireless transmission of command data packet, remote configuration or reading of radio station parameters;

★ Support the communication key function, and effectively prevent the data from being intercepted;

★ It can realize the multi-stage relay networking, effectively expand the communication distance, and realize the ultra-long distance communication;

★ Working temperature range: -40℃ ~ + 85℃, adapt to a variety of harsh working environment, real industrial-grade products;

★ Power reverse connection protection, adoptive protection, antenna surge protection and other multiple protection functions, greatly increase the reliability of the station;

★ Communication ports and power supply interfaces shall be isolated with high protection;

★ Powerful software functions, all parameters can be programmed by setting: such as power, frequency, air rate, address ID, etc.;

★ Built-in watchdog, and precise time layout, in the event of abnormalities, the station will automatically restart, and can continue to work according to the previous parameter settings.

Specifications

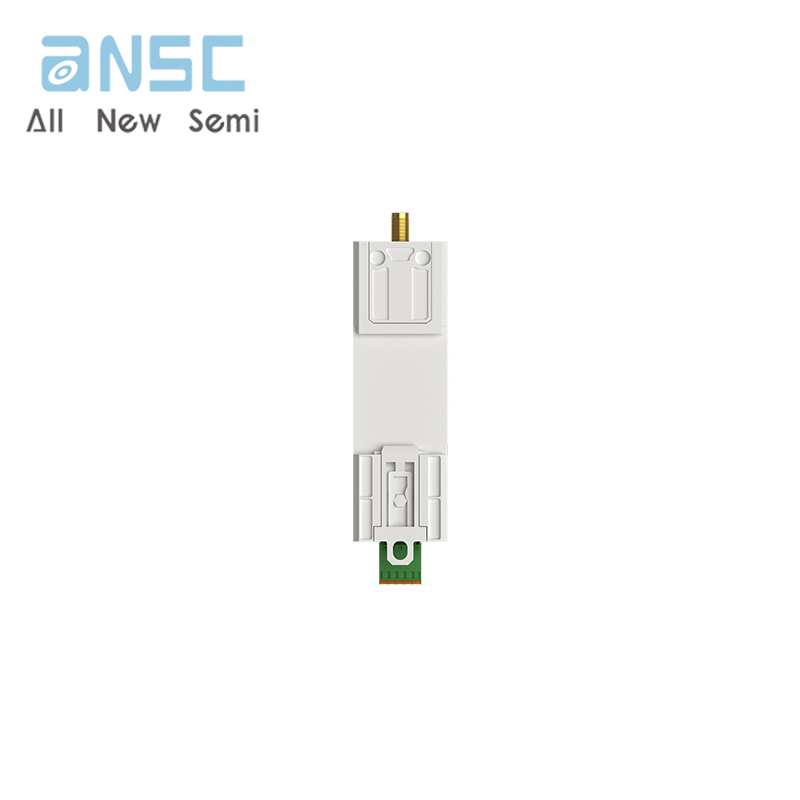

Actual product photos
