Product Descriptions
E90-DTU (2G4L27) is a data transceiver with military-grade LoRa modulation technology. With multiple transmission modes, it works in the (2400MHz~2500MHz) frequency band (default 2424MHz). The transceiver provides transparent RS232/RS485 interface and supports 8~28V voltage input. LoRa direct-sequence spread spectrum technology will bring longer communication distances, and has the advantages of concentrated power density and strong anti-interference ability, It features a software FEC forward error correction algorithm, which has high coding efficiency and strong error correction capability.In the case of sudden interference, it can proactively correct the interfered data packets, greatly improving reliability and transmission distance. In the absence of FEC, such packets can only be discarded. it has data encryption. The data transmitted by the transceiver over the air is random, and the data interception is meaningless through strict encryption and decryption algorithms. Packet length setting is available to support different real-time and data packets.
As a communication medium, wireless data transceiver has the same scope as optical fiber, microwave and bright line: it provides real-time and reliable data transmission of monitoring signals in private networks under certain special conditions, with low cost, installation and maintenance. It is convenient, has strong diffiraction ability, flexible networking, structure and long, coverage, It is suitable for occasions with many points and scattered. complex geographical environment, etc. It can be connected with PLC, RTU, rain gauge, liquid level meter and other data terminals.
Specifications
| Attribute | Attribute value | Notes |
| ANSM-Part# | ANSM-E90-DTU(2G4L27) | |
| Size | 82*62*25 mm | See more in Dimensions |
| Weight | 130g | ± 4.5g |
| Temperature | -40℃～+85℃ | Meet industrial request |
| Antenna impedance | 50Ω | Standard 50Ω |
| Supply voltage | 8～28V DC | It is recommended to use 12V or 24V |
| Communication interface | RS232/RS485 | Standard DB9 hole / 3.81 terminal block |
| Baud rate | Default 115200 | From 1200~115200 |
| Working frequency | 2400~2500 MHz | |
| Transmitting power | 24 dBm | About 0.5W |
| Test distance | 7000 meter | |
| Air data rate | 1k~2M | Factory default 1kbps |
| Working voltage (V) | 8~28 | Suggest using 12V or 24V |
| Working temperature (° C) | -40~+85 | Meet industrial grade usage needs |

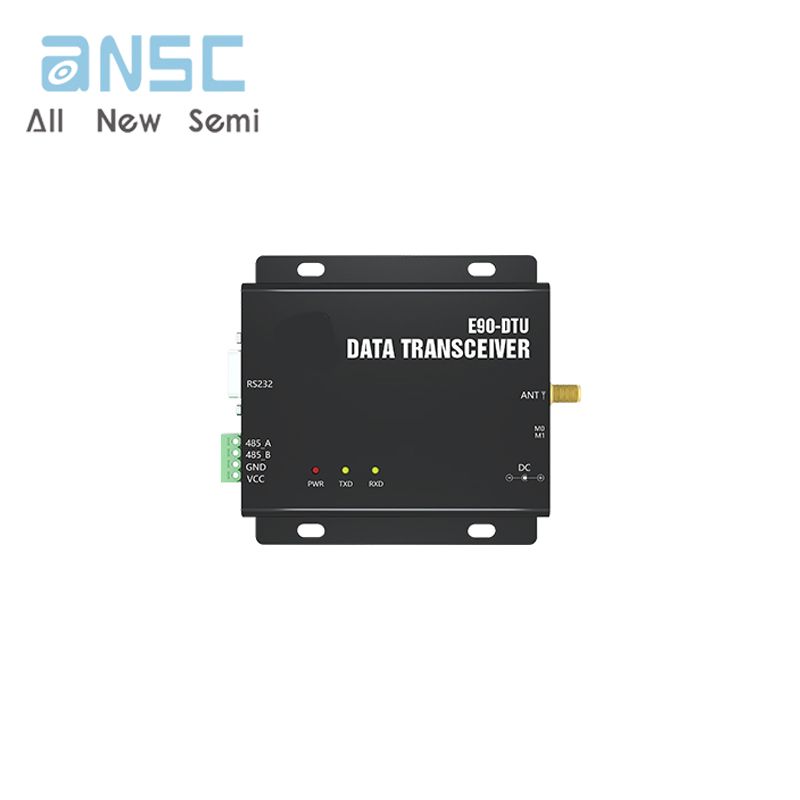

Actual product photos
For more product information, please download the PDF
