Product Descriptions

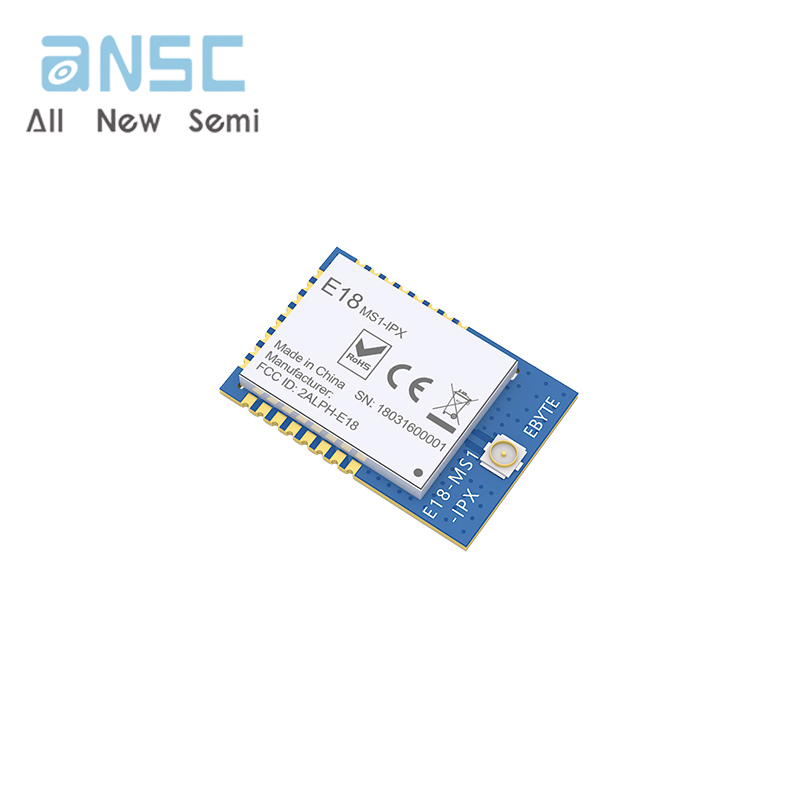

E18 series is a 2.4GHz frequency band ZigBee communication protocol-to-serial wireless module designed and produced by Ebyte. The factory comes with self-organizing network firmware, ready to use, suitable for a variety of application scenarios (especially smart home).
The E18 series module adopts CC2530 RF chip imported from Texas Instruments. The chip integrates 8051 single-chip microcomputer and wireless transceiver. Some module models have built-in PA power amplifier to increase the communication distance. The factory-built firmware implements serial data transparent transmission based on the ZigBee3.0 protocol, and supports various commands under the ZigBee3.0 protocol. After actual measurement, it has very good compatibility with most ZigBee3.0 products on the market.
Product Application
? Smart home and industrial sensors, etc.;
? Security system, positioning system;
? Wireless remote control, drone;
? Wireless game remote control;
? Healthcare products;
? Wireless voice, wireless headset;
? Automotive industry applications.
Specifications
| Attribute | Attribute value | Notes |
| ANSM-Part# | ANSM-E18-MS1-IPX | |
| Working frequency | 2400~2480 MHz | Default: 2.4GHz (32MHz oscillator) |
| Transmitting power | 4 dBm | About 2.5mW |
| Receiving sensitivity | -96.4 dBm | Air data rate: 250kbps |
| Communication protocal | ZigBee | - |
| Test distance | 240m | In open and clear air, with maximum power, 5dBi antenna gain, height of 2m,air data rate: 250kbps |
| IC | CC2530F256RHAT/QFN40 | - |
| FLASH | 256 KB | - |
| RAM | 8 KB | - |
| Core | Industry-standard enhanced 8051 MCU | - |
| Size | 14.1 * 20.8 mm | - |
| Antenna type | IPEX | - |
| Communication interface | SoC | - |
| Package | SMD | |
| Communication interface | UART I/O | |
| Air speed (bps) | 250k | |
| Power supply voltage (V) | 2.0~3.6 | |
| Emission current (mA) | 28 |
