Product Descriptions

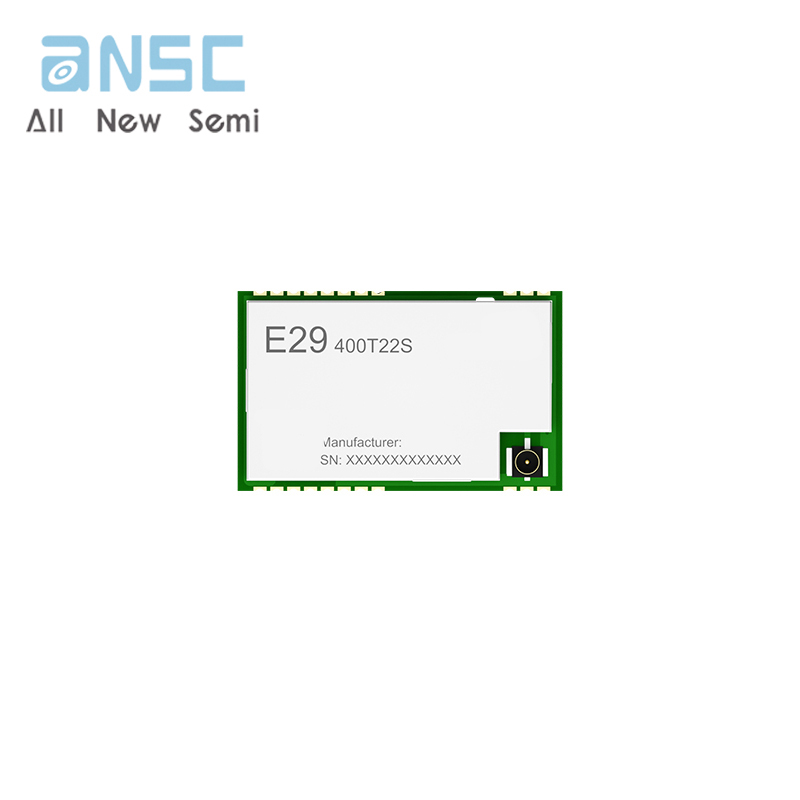

Based on PANCHIP’s RF chip PAN3031, the E29-T series products are a new generation of wireless serial port module (UART) independently developed by Chengdu Ebyte Electronics Co., Ltd. It’s with a variety of transmission methods, working in the

frequency band 410.125 ～ 493.125MHz (default 433.125MHz), and using industrial-grade high-precision 32MHz crystal oscillator.

The E29-T series adopts a new generation of ChirpIoT? spread spectrum technology, supports half-duplex wireless communication, has the characteristics of high anti-interference and high sensitivity; It also has air wake-up, wireless configuration,

automatic relay, communication key, AT Command, IAP upgrade and other functions; This series of modules is mainly for application in smart home, industry, scientific research, medical and short-distance wireless communication equipment. It supports

packet length setting, and customized development service is also available.

Product Features

? Support AT command, more convenient for use. ? Support IAP upgrade, more convenient to update firmware;

? ChirpIoT?-based modulation method brings longer communication distance and stronger anti-interference ability;

? Support automatic relay networking, multi-level relay is suitable for ultra-long-distance communication, and multiple networks run simultaneously in the same area;

? User can set the communication key by himself and the key cannot be read by others. It greatly improving the confidentiality of user data;

? Support RSSI signal strength indicator function for evaluating signal quality, improving communication network, and ranging;

? Support wireless parameter configuration, send command packets wirelessly, remotely configure or read wireless module parameters;

? Support wake-up over the air, that is ultra-low power consumption, suitable for battery-powered applications;

? Support point to point transmission, broadcast transmission, and channel listening;

? Support deep sleep, the power consumption of the whole module is about 2uA in this mode;

? Support global license-free ISM 433MHz frequency band, support 470MHz meter reading frequency band;

? Under ideal conditions, the communication distance can reach 5km;

? The parameters are saved after power-off, and the module will work according to the set parameters after power-on;

? Efficient watchdog design, once an exception occurs, the module will automatically restart and continue to work according to the previous parameter settings;

? Support 2.4k～16.4kbps air data rate transmission;

? Support 2.6～5.5V power supply, power supply greater than 5V guarantees the best performance;

? Industrial standard design, supporting long-term use at -40～+85℃;

Product Applications

? Home security alarm and remote keyless entry;

? Smart home and industrial sensors;

? Wireless alarm security system;

? Building automation solutions;

? Wireless industrial-grade remote control;

? Health care products;

? Advanced Meter Reading Architecture (AMI);

Specifications
